Daikin RY24PEV1K Service Manual page 129

SiK401004_A

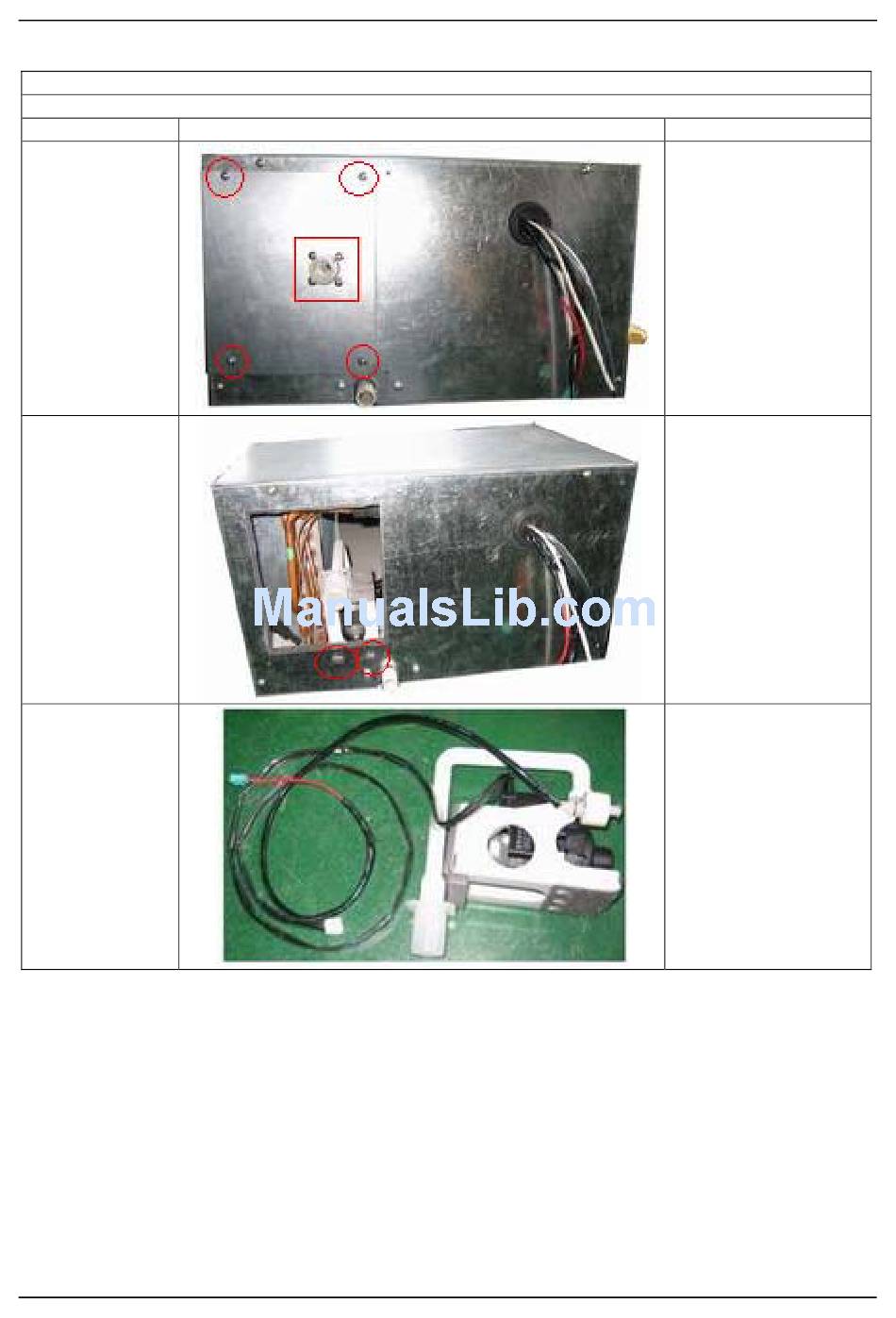

Disassembly of drainage pump
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during disassembly.
Step
1. Disassembly of the
screws on
seal-plates of indoor
panels and the
drainage pipe
2. Disassembly of the
screws on the
drainage pump
3. Removal of
condensed water
drainage pump
121
Illustration Handling Instruction
●Disassemble the screws on
seal-plates of indoor panels
and the pump drainage pipe.
Remove the seal-plates.(As
is shown in the illustration,
the circle represents screws
on seal-plates and box the
screws on drainage pipe. All
the 8 screws shall be
disassembled. )
●Disassemble the screws on
the drainage pump. (As is
shown in the graph, the
circle represents the position
of screws.)
●Removed condensed water
drainage pump is shown in
the illustration.
MAINTENANCE
