Daikin RY24PEV1K Service Manual page 132

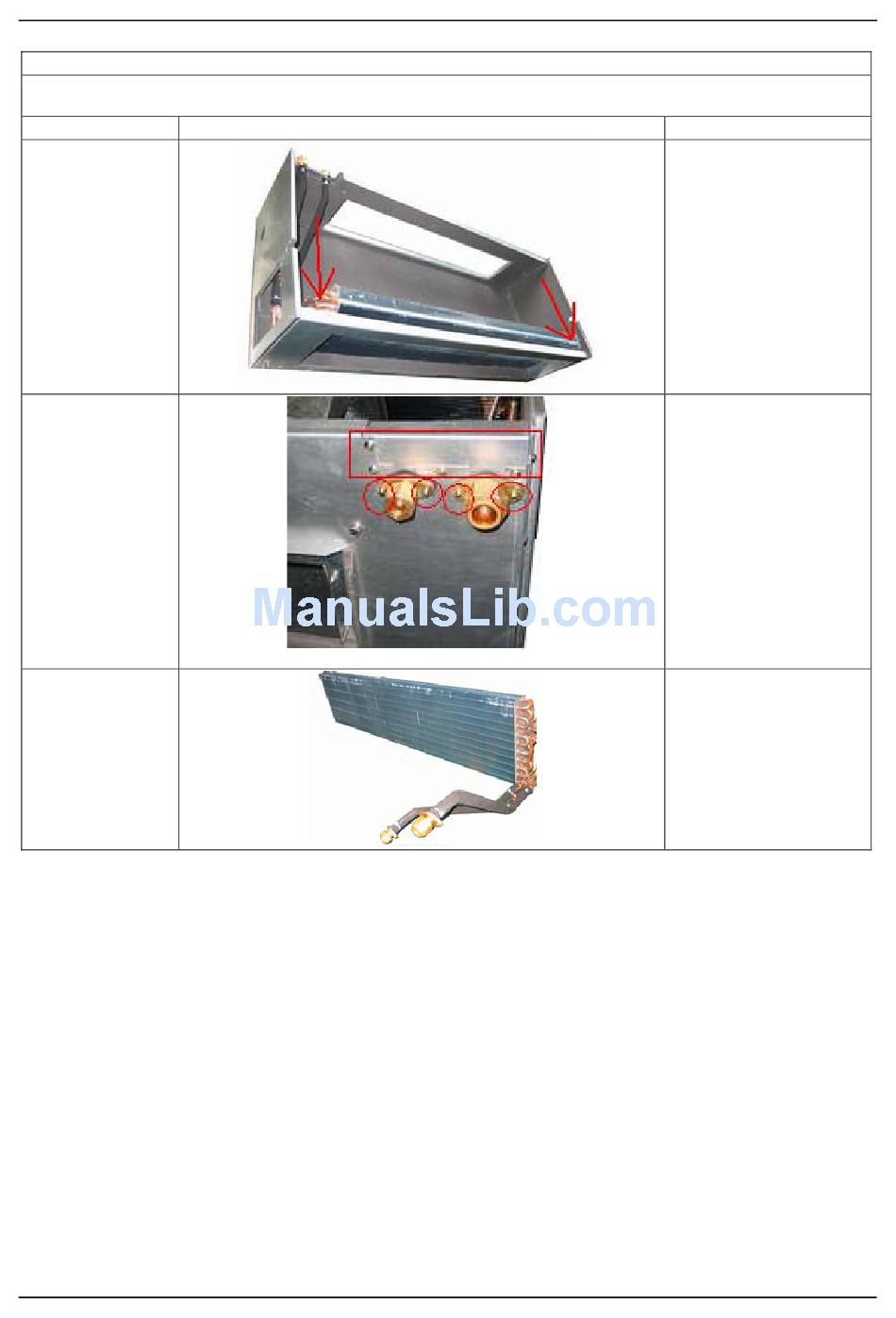

Disassembly of evaporator
Remark: Make sure that the power supply is cut off and protect the copper tube and aluminum fin. If the time for disassembly
shall be long, put the copper tube under pressurized condition.
Step
1. Disassembly of
fixing screws on the
side panels of
evaporator
2. Disassembly of the
screws connecting
evaporator valve
seal-plate and joint
flange
3. Removal of
evaporator
MAINTENANCE
Illustration
SiK401004_A
Handling Instruction
●Remove the screw
connecting left and right side
panels on the evaporator
and the upper cover plate.
(As shown in the arrow's
direction in the illustration.)
●Remove the screws on the
valve seal-plate and remove
the valve seal-plate.
Remove the screws on the
evaporator's joint flange. (As
shown in Illustration, box
represents the screws on
seal-plates while circle the
screws on joint flange.
●Remove the evaporator.
Removed evaporator is
shown in the illustration.
124
