Daikin RY24PEV1K Service Manual page 125

SiK401004_A

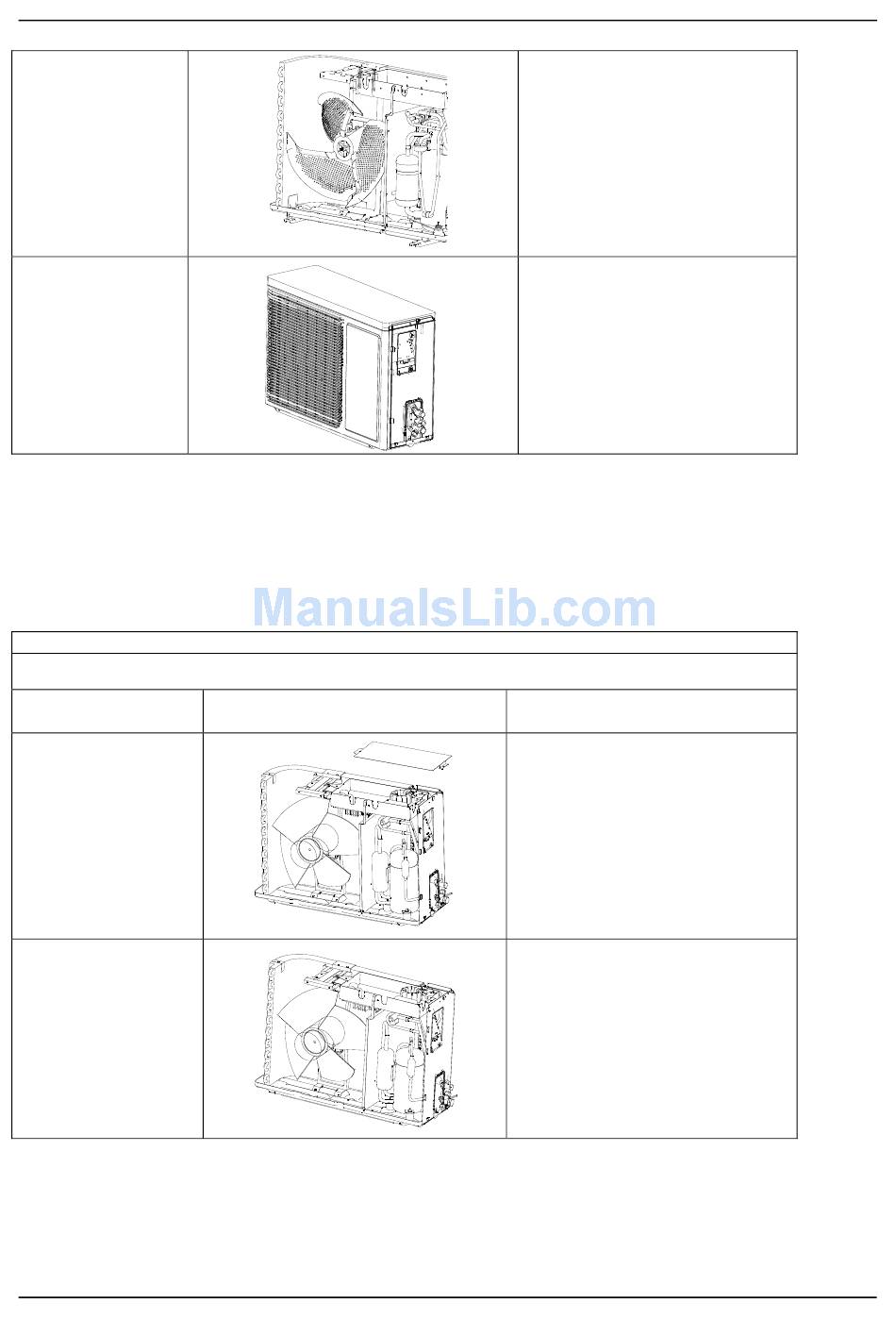

5. Assembly of new
axial flow fan
6. Assembly of outdoor
parts
Disassembly and Assembly of
Remark : Make sure that power supply of the unit is cut down before removal of electrical parts box or electrical
parts box modules.
Step
1. Disaasembly of cover
of electrical box.
2. Pull away the power
supply wires for
components like motor,
etc.
117
electrical parts box
Illustration
●Position reliably the new fan on the
motor axis
●Hold the fans without movement.
●Screw down retaining screws for fan
with wrench.
●Re-assemble the outdoor parts of
unit top cover, panel (external casing)
and rear grill, etc. according to the
discription before.
Handling Instruction
●Cut off power supply
●Disassemble retaining screws between
cover and electric box
●Remove the cover.
●Disassemble electrical components,
like mainboard inside the electrical parts
box connected with outdoor componets
(power-loaded wires for componets like
compressor, motor).
Attention: Record right position for wire
connection during disassembly of
connecting wires.
MAINTENANCE
