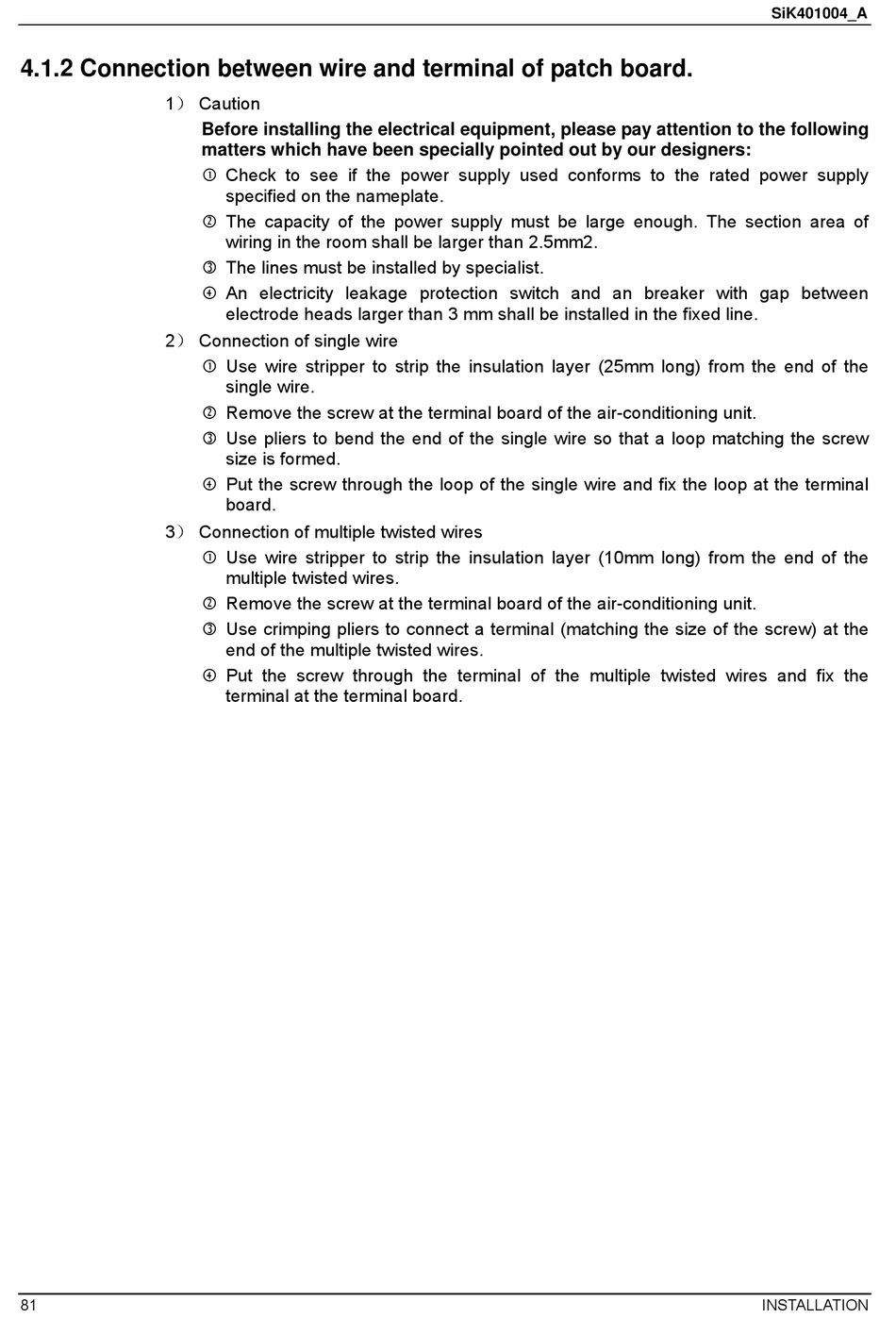

4.1.2 Connection between wire and terminal of patch board.
1） Caution
2） Connection of single wire
3） Connection of multiple twisted wires
81
Before installing the electrical equipment, please pay attention to the following
matters which have been specially pointed out by our designers:
 Check to see if the power supply used conforms to the rated power supply
specified on the nameplate.
 The capacity of the power supply must be large enough. The section area of
wiring in the room shall be larger than 2.5mm2.
 The lines must be installed by specialist.
 An electricity leakage protection switch and an breaker with gap between
electrode heads larger than 3 mm shall be installed in the fixed line.
 Use wire stripper to strip the insulation layer (25mm long) from the end of the
single wire.
 Remove the screw at the terminal board of the air-conditioning unit.
 Use pliers to bend the end of the single wire so that a loop matching the screw
size is formed.
 Put the screw through the loop of the single wire and fix the loop at the terminal
board.
 Use wire stripper to strip the insulation layer (10mm long) from the end of the
multiple twisted wires.
 Remove the screw at the terminal board of the air-conditioning unit.
 Use crimping pliers to connect a terminal (matching the size of the screw) at the
end of the multiple twisted wires.
 Put the screw through the terminal of the multiple twisted wires and fix the
terminal at the terminal board.
