3.4.5 Swing Control Function *

Under on-state of unit, press Function button till the unit enters swing control function and
then press "Enter/Cancel" button to turn on "swing" control function.
During swing function, press Function button till the unit enters swing control function and
then press Enter/Cancel button to cancel swing control function.

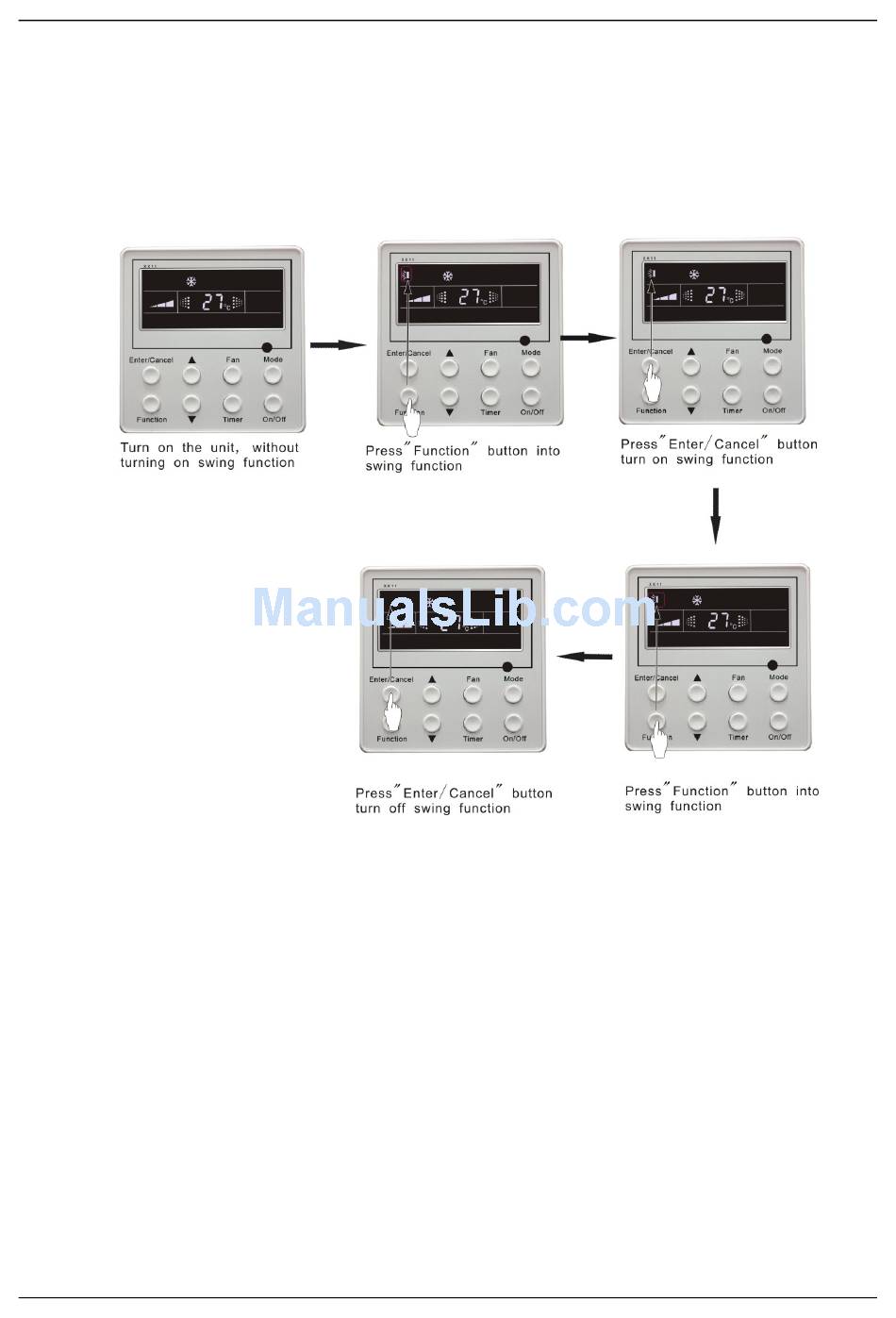

Swing control function setting is shown in Fig 3.4.5

3.4.6 Timer Setting

Press Timer button to set timer off of the unit. Under off-state of the unit, press Timer
button to set timer on of the unit in the same way.
Timer on setting: Under off-state of the unit without timer setting, if Timer button is
Timer off setting: Under on-state of the unit without timer setting, if Timer button is
45
Fig.3.4.5
pressed, LCD will display xx. Hour, ON blinking. In this case, press ▲
or ▼ button to adjust timer on and then press Timer to confirm. If Mode
button is pressed before pressing Timer button to confirm, timer mode
will be switched to timer off setting mode. In this case, LCD displays xx.
Hour, OFF blinking. In this case, press ▲ or ▼ button to adjust timer off
and then press Timer to confirm. When LCD displays xx. Hour On Off,
xx. Hour means time of timer on, but time of timer off won't be
displayed.
pressed, LCD will display xx. Hour, OFF blinking. In this case, press ▲
or ▼ button to adjust timer on and then press Timer to confirm. If Mode
button is pressed before pressing Timer button to confirm, timer mode
will be switched to timer on setting mode. In this case, LCD displays xx.
