3.6.4 Position and Method of Installing Wired Remote Controller
One end of the control wire of the wired remote controller is connected to main board in
the electric box of indoor unit, it should be tightened by wire clamp, the other end should
be connected to the wired controller. The special control wire be used between the indoor
unit and wired remote controller, which the length is 8 meters.
The material be adopted for the control wire should be metallic substance. The wired
controller could not be disassembled and the control wire be used for the wired controller
should not be changed by users optionally. The installation and maintenance should be
carried out by the installer.
Firstly select an installation position. According to the size of the control wire for the wired
remote controller, leave a recess or a embedded wire hole to bury the communication
line.

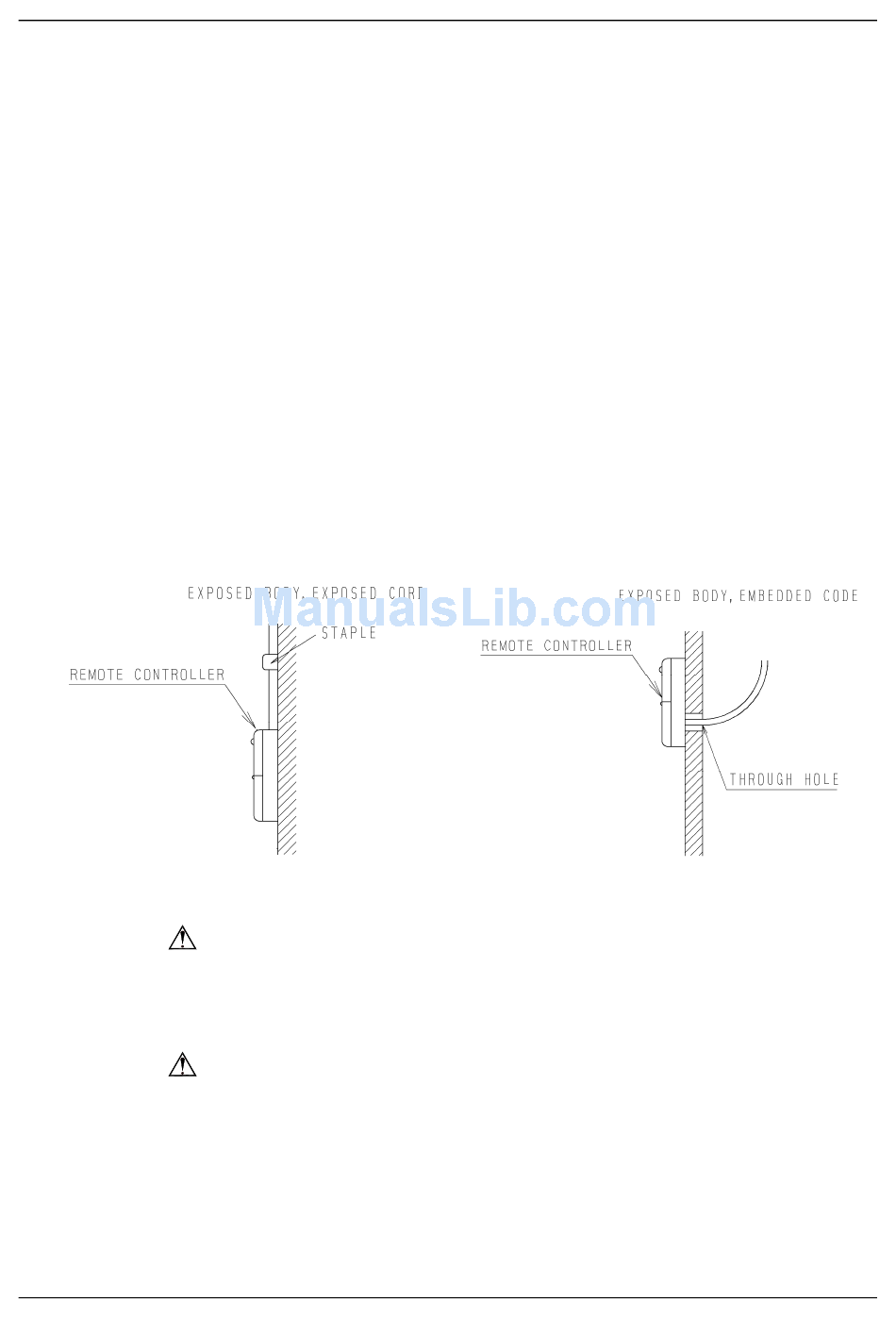

If the control wire between the wired remote controller and the indoor unit is
surface-mounted, use 1# metallic pipe and make matching recess in the wall (refer to
Figure 3.6.4); If concealed installation is adopted, 1# metallic pipe can be used (Refer to
Figure 3.6.5).
No matter if surface mounting or concealed mounting is selected, it is required to drill 2
holes (in the same level) which distance shall be the same as the distance (60mm) of
installation holes in the bottom plate of the wired controller. Then insert a wood plug into
each hole. Fix the bottom plate of the wire controller to the wall by using the two holes.
Plug the control wire onto the control panel. Lastly install the panel of the wire controller
(Refer to Figure 3.3.1).
During the installation of the bottom plate of the wired controller, pay attention to the
direction of the bottom plate. The plate's side with two notches must be at the lower
position, and otherwise the panel of the wired controller cannot be correctly installed.
1. The communication distance between the main board and the wired controller can be
2.The wired controller shall not be installed in a place where there is water drop or large
59
Fig.3.6.4
Caution:
Caution:
as far as 20m (The standard distance is 8m).
amount of water vapor.
SiK401004_A
Fig.3.6.5
