1) Installation of the Air Supply Duct
67

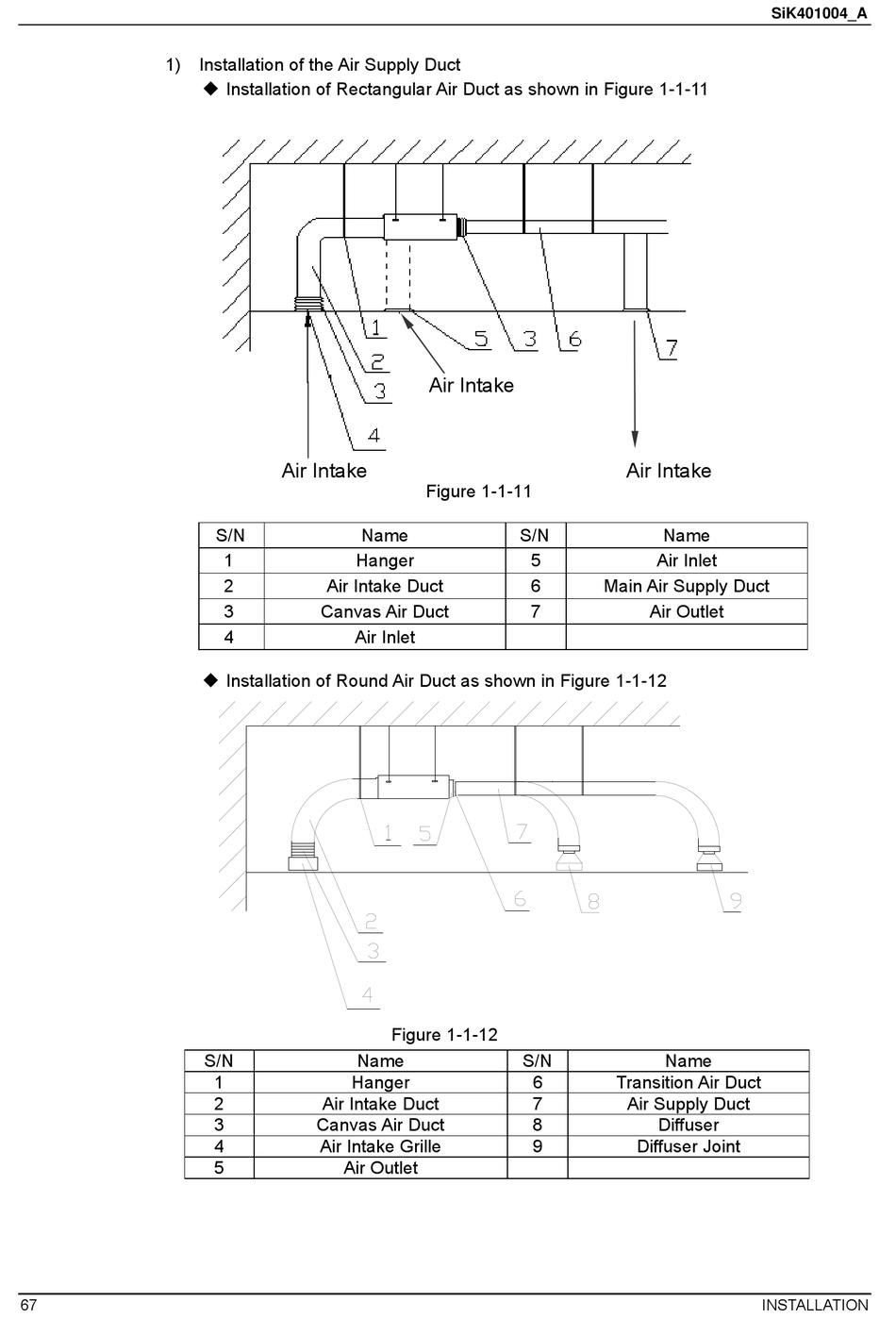

 Installation of Rectangular Air Duct as shown in Figure 1-1-11
Air Intake
S/N Name
1 Hanger
2 Air Intake Duct
3 Canvas Air Duct
4 Air Inlet
 Installation of Round Air Duct as shown in Figure 1-1-12
S/N Name
1 Hanger
2 Air Intake Duct
3 Canvas Air Duct
4 Air Intake Grille
5 Air Outlet
Air Intake
Figure 1-1-11
S/N
5
6
7
Figure 1-1-12
S/N
6
7
8
9
SiK401004_A
Air Intake
Name
Air Inlet
Main Air Supply Duct
Air Outlet
Name
Transition Air Duct
Air Supply Duct
Diffuser
Diffuser Joint
