Daikin RY24PEV1K Service Manual page 54

SiK401004_A
Cancel timer:
Timer off setting under on-state of the unit is shown as Fig.3.4.6
Timer range: 0.5-24hr. Every press of ▲ or ▼ button will make setting time increased or
Note:
1. If both timer on and timer off are set in unit on interface, the wired controller only display
2. Timer on in unit on-state is timed from the time of unit off and timer off in unit off-state is
FUNCTION CONTROL
Hour, ON blinking. In this case, press ▲ or ▼ button to adjust timer on
and then press Timer button to confirm. When LCD displays xx. Hour
On Off, xx. Hour means time of timer off, but time of timer on won't be
displayed.
After setting of timer, if Timer button is pressed, LCD won't display xx.
Hour so that timer setting is canceled.

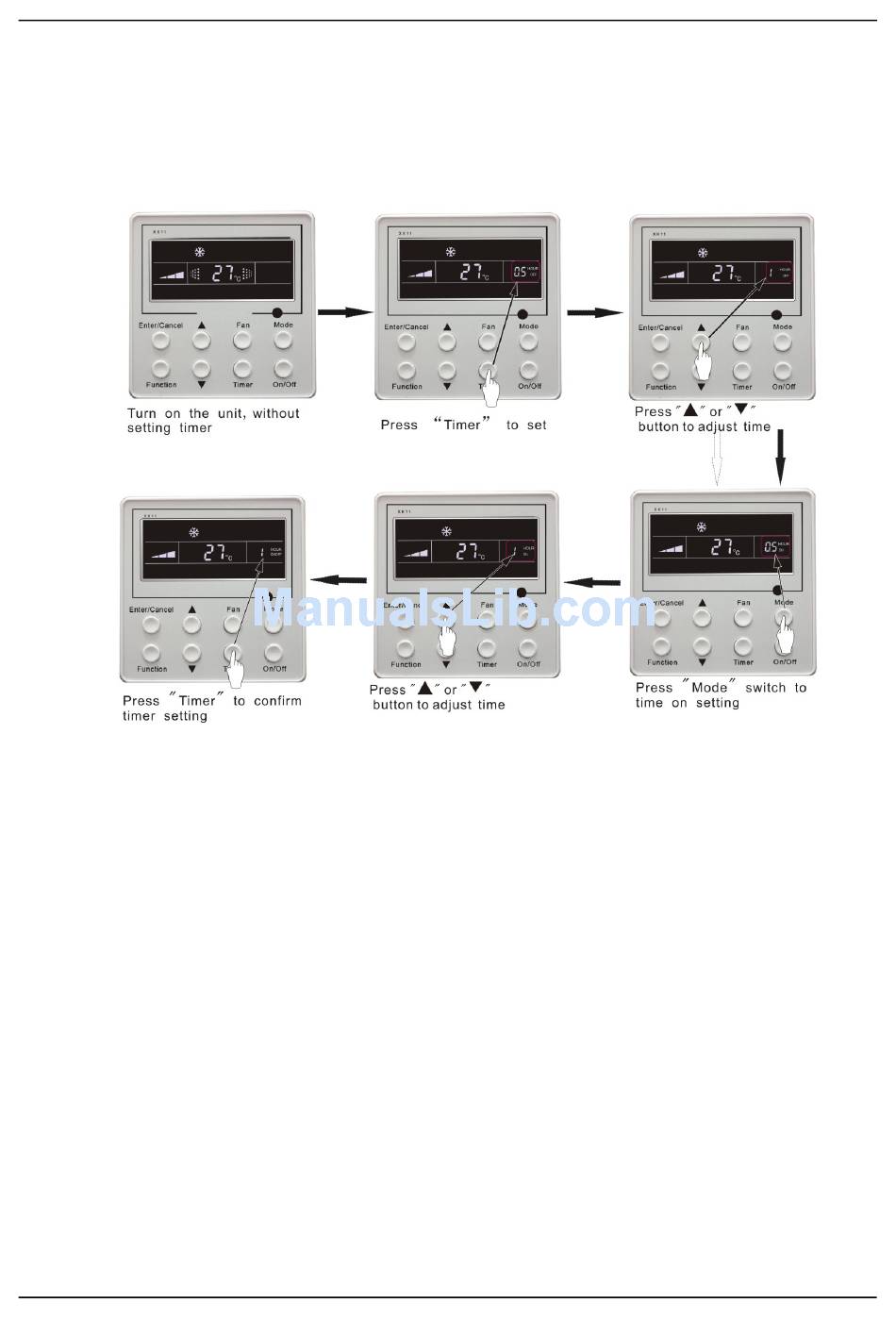

Fig.3.4.6 Timer setting under on-state of the unit
decreased by 0.5hr.If press either of them continuously, setting time will
automatically increase/ decrease by 0.5hr every 0.5s.
time of time off. If both of them are set in unit off-state, only time of timer on is
displayed.
timed from the time of unit on.
46
