SiK401004_A
1. OPERATION FLOWCHART
1.1 Cooling/Dry Operation

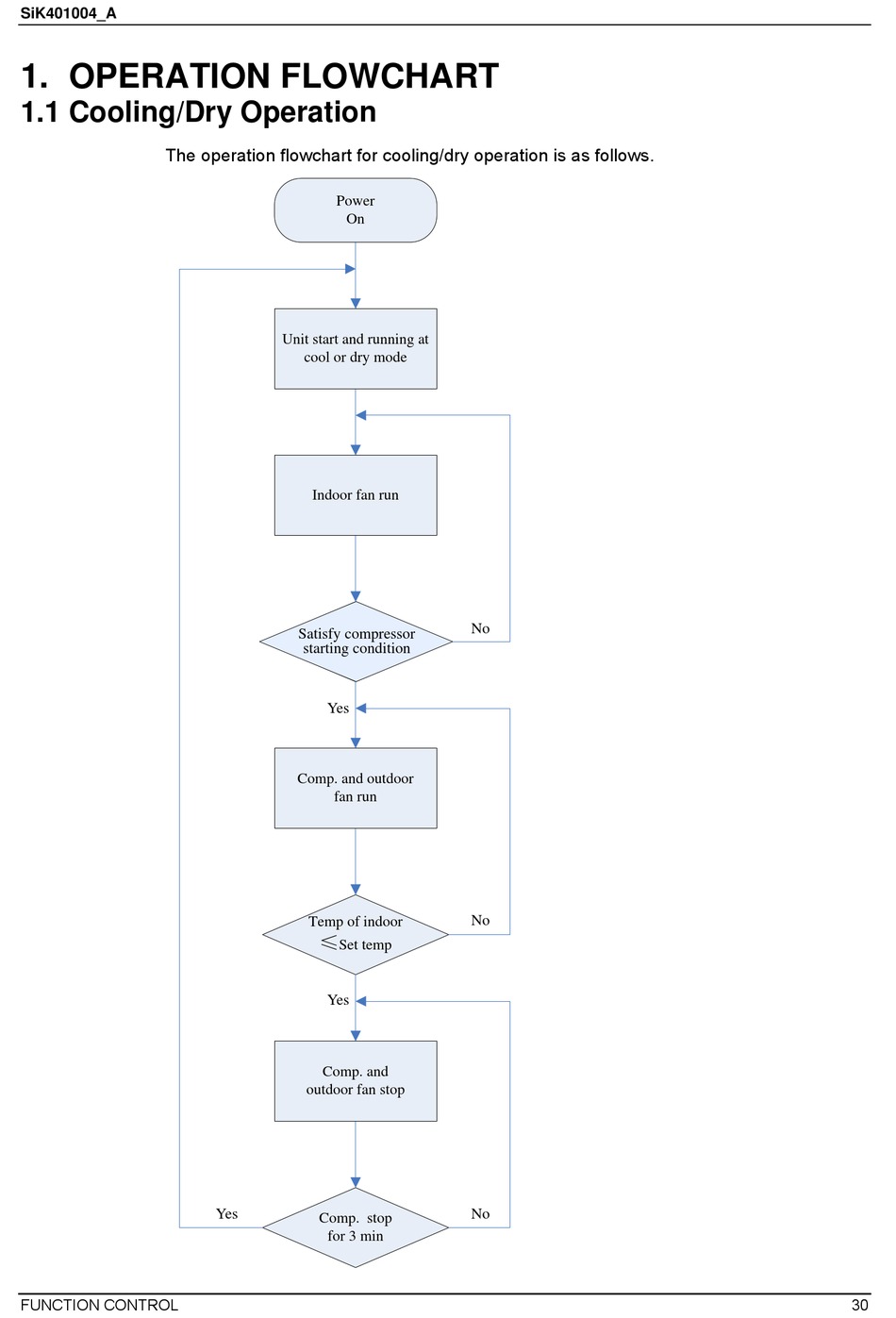

The operation flowchart for cooling/dry operation is as follows.
FUNCTION CONTROL
Power
On
Unit start and running at
cool or dry mode
Indoor fan run
Satisfying open
Satisfy compressor
starting condition
Comp. condition
Yes
Y
Comp. and outdoor
fan run
Temp of indoor
≤
Set temp
Yes
Y
Comp. and
outdoor fan stop
Yes
Y
Comp. stop
for 3 min
No
N
No
N
No
N
30
