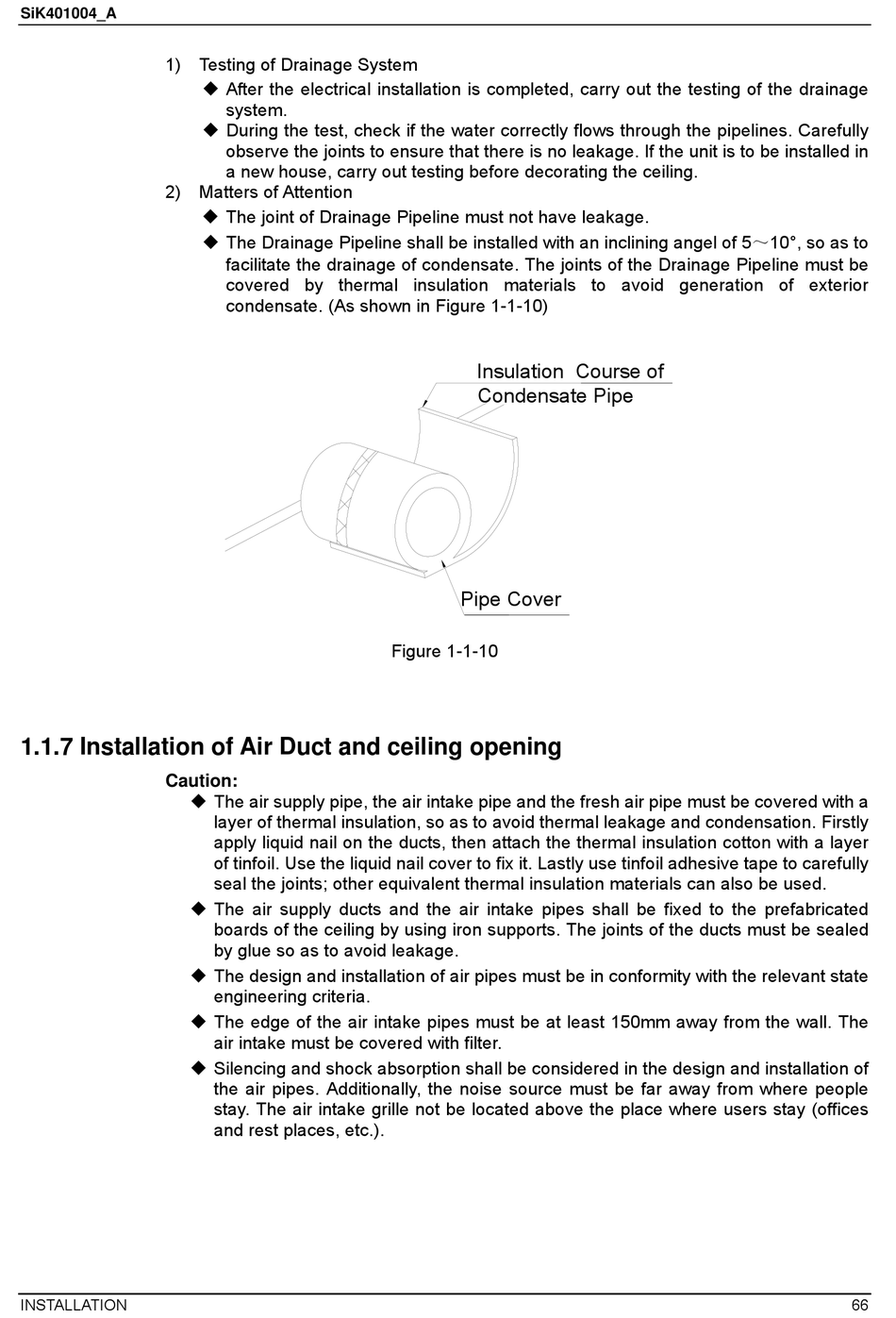

1) Testing of Drainage System
2) Matters of Attention
1.1.7 Installation of Air Duct and ceiling opening
Caution:
INSTALLATION
 After the electrical installation is completed, carry out the testing of the drainage
system.
 During the test, check if the water correctly flows through the pipelines. Carefully
observe the joints to ensure that there is no leakage. If the unit is to be installed in
a new house, carry out testing before decorating the ceiling.
 The joint of Drainage Pipeline must not have leakage.
 The Drainage Pipeline shall be installed with an inclining angel of 5～10°, so as to
facilitate the drainage of condensate. The joints of the Drainage Pipeline must be
covered by thermal insulation materials to avoid generation of exterior
condensate. (As shown in Figure 1-1-10)
 The air supply pipe, the air intake pipe and the fresh air pipe must be covered with a
layer of thermal insulation, so as to avoid thermal leakage and condensation. Firstly
apply liquid nail on the ducts, then attach the thermal insulation cotton with a layer
of tinfoil. Use the liquid nail cover to fix it. Lastly use tinfoil adhesive tape to carefully
seal the joints; other equivalent thermal insulation materials can also be used.
 The air supply ducts and the air intake pipes shall be fixed to the prefabricated
boards of the ceiling by using iron supports. The joints of the ducts must be sealed
by glue so as to avoid leakage.
 The design and installation of air pipes must be in conformity with the relevant state
engineering criteria.
 The edge of the air intake pipes must be at least 150mm away from the wall. The
air intake must be covered with filter.
 Silencing and shock absorption shall be considered in the design and installation of
the air pipes. Additionally, the noise source must be far away from where people
stay. The air intake grille not be located above the place where users stay (offices
and rest places, etc.).
Insulation Course of
Condensate Pipe
Pipe Cover
Figure 1-1-10
