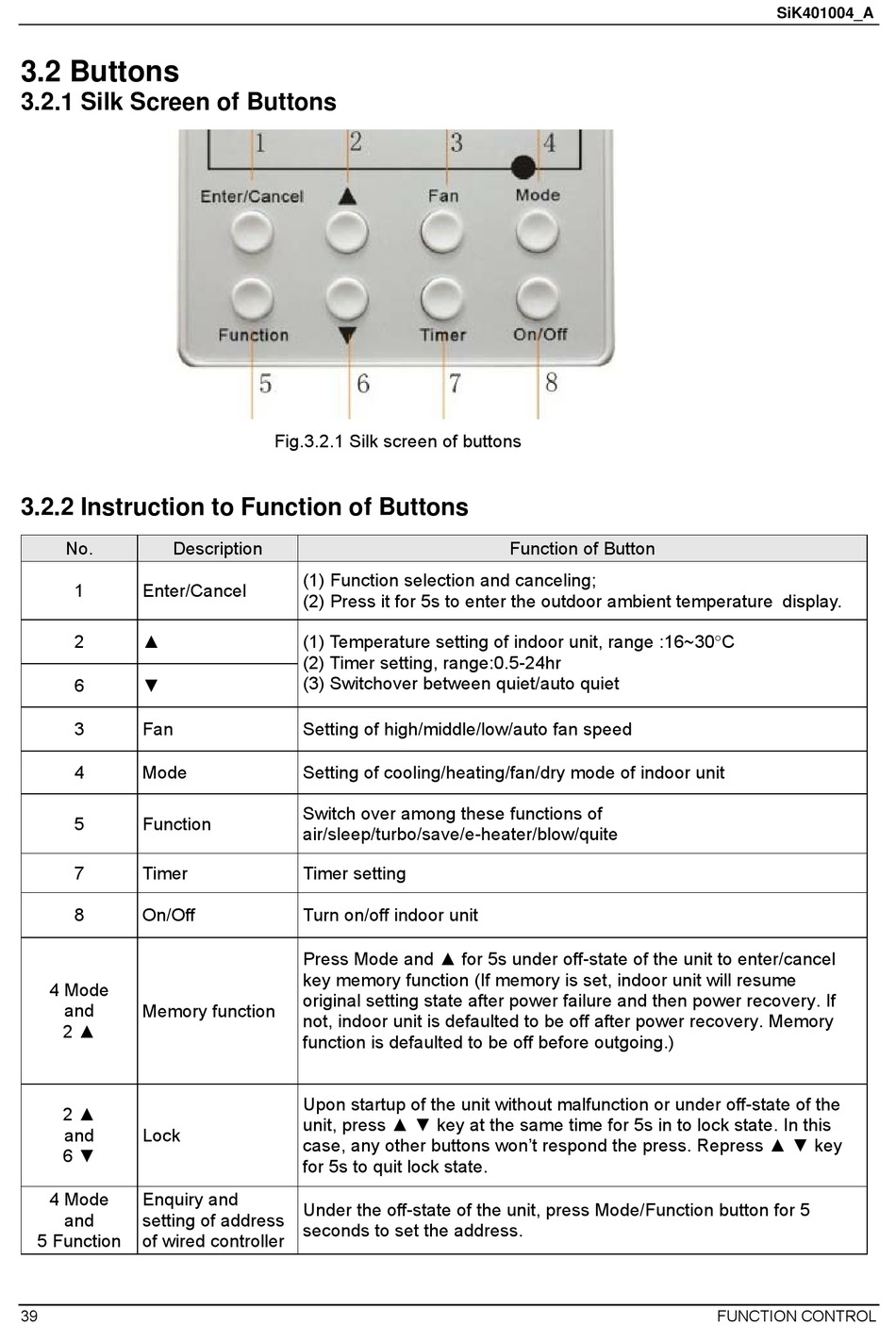

3.2 Buttons

3.2.1 Silk Screen of Buttons
3.2.2 Instruction to Function of Buttons
No. Description
1 Enter/Cancel
2 ▲
6 ▼
3 Fan
4 Mode
5 Function
7 Timer
8 On/Off
4 Mode
and Memory function
2 ▲
2 ▲
and Lock
6 ▼
4 Mode Enquiry and
and setting of address
5 Function of wired controller
39
Fig.3.2.1 Silk screen of buttons
(1) Function selection and canceling;
(2) Press it for 5s to enter the outdoor ambient temperature display.
(1) Temperature setting of indoor unit, range :16~30C
(2) Timer setting, range:0.5-24hr
(3) Switchover between quiet/auto quiet
Setting of high/middle/low/auto fan speed
Setting of cooling/heating/fan/dry mode of indoor unit
Switch over among these functions of
air/sleep/turbo/save/e-heater/blow/quite
Timer setting
Turn on/off indoor unit
Press Mode and ▲ for 5s under off-state of the unit to enter/cancel
key memory function (If memory is set, indoor unit will resume
original setting state after power failure and then power recovery. If
not, indoor unit is defaulted to be off after power recovery. Memory
function is defaulted to be off before outgoing.)
Upon startup of the unit without malfunction or under off-state of the
unit, press ▲ ▼ key at the same time for 5s in to lock state. In this
case, any other buttons won't respond the press. Repress ▲ ▼ key
for 5s to quit lock state.
Under the off-state of the unit, press Mode/Function button for 5
seconds to set the address.
Function of Button
