Disassembly of fan and motor
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during disassembly.
Step
1. Disassembly of fan
2. Disassembly of
motor
123
Illustration
Handling Instruction

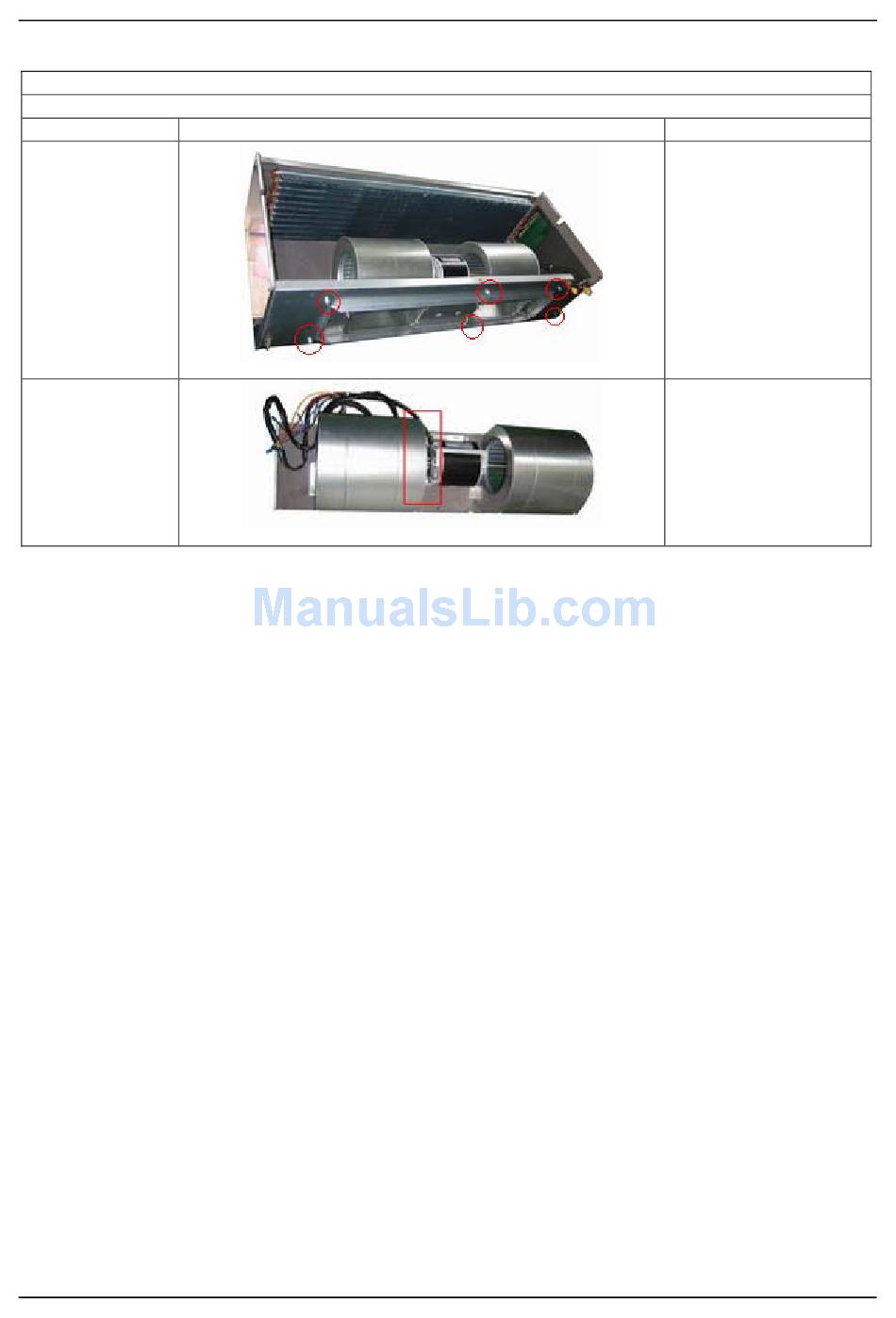

●Remove the fixing screws
on the fan components. (As
shown in the illustration,
circle represents 6 screws.)
●Remove the screws on the
fan and motor. Remove the
fan. (As shown in the
illustration, box represents
screws.)
MAINTENANCE
