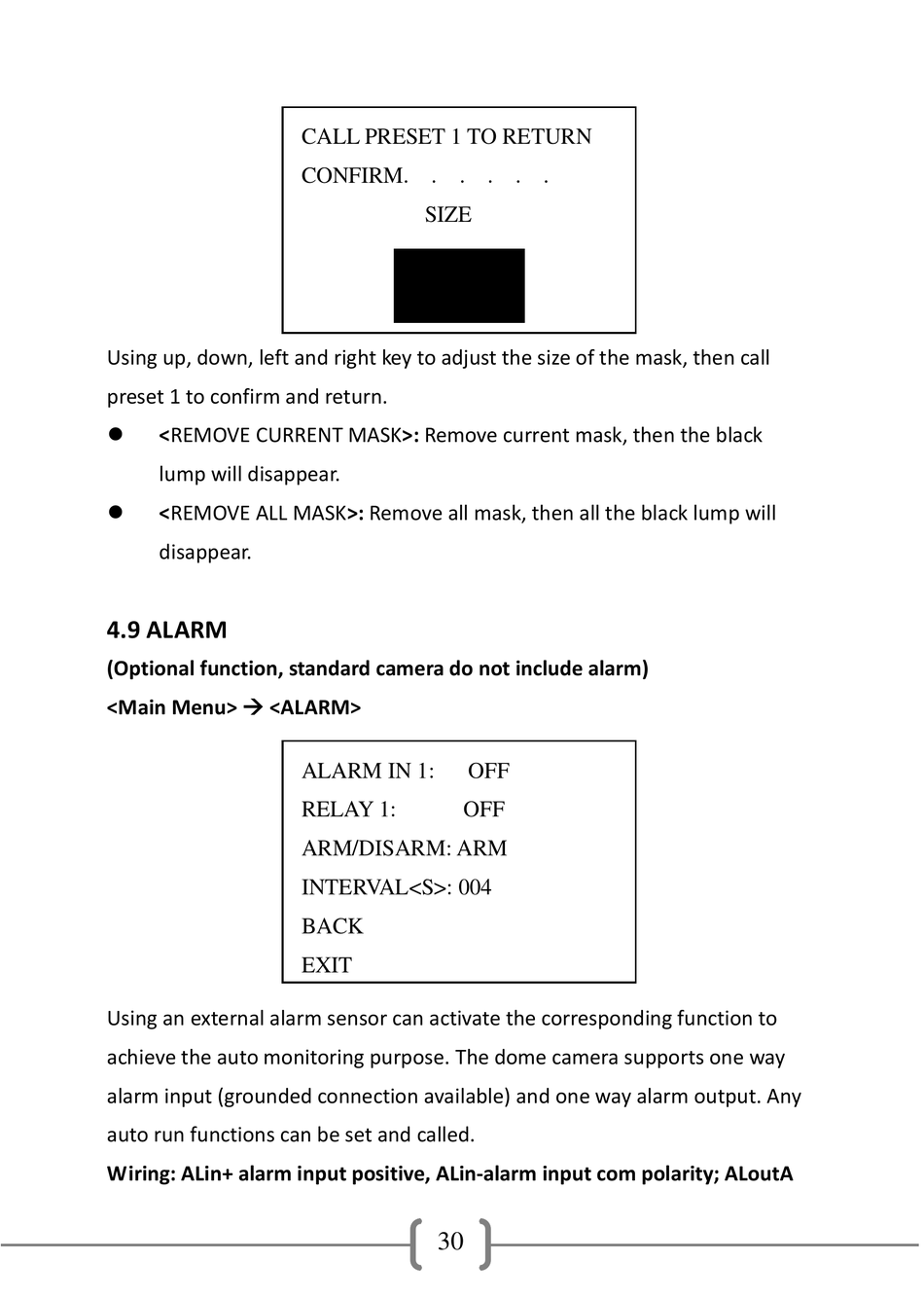

Using up, down, left and right key to adjust the size of the mask, then call
preset 1 to confirm and return.
<REMOVE CURRENT MASK>: Remove current mask, then the black

lump will disappear.
<REMOVE ALL MASK>: Remove all mask, then all the black lump will

disappear.

4.9 ALARM

(Optional function, standard camera do not include alarm)
<Main Menu>  <ALARM>
Using an external alarm sensor can activate the corresponding function to
achieve the auto monitoring purpose. The dome camera supports one way
alarm input (grounded connection available) and one way alarm output. Any
auto run functions can be set and called.
Wiring: ALin+ alarm input positive, ALin-alarm input com polarity; ALoutA
CALL PRESET 1 TO RETURN
CONFIRM. . . . . .
SIZE
ALARM IN 1: OFF
RELAY 1: OFF
ARM/DISARM: ARM
INTERVAL<S>: 004
BACK
EXIT
30
