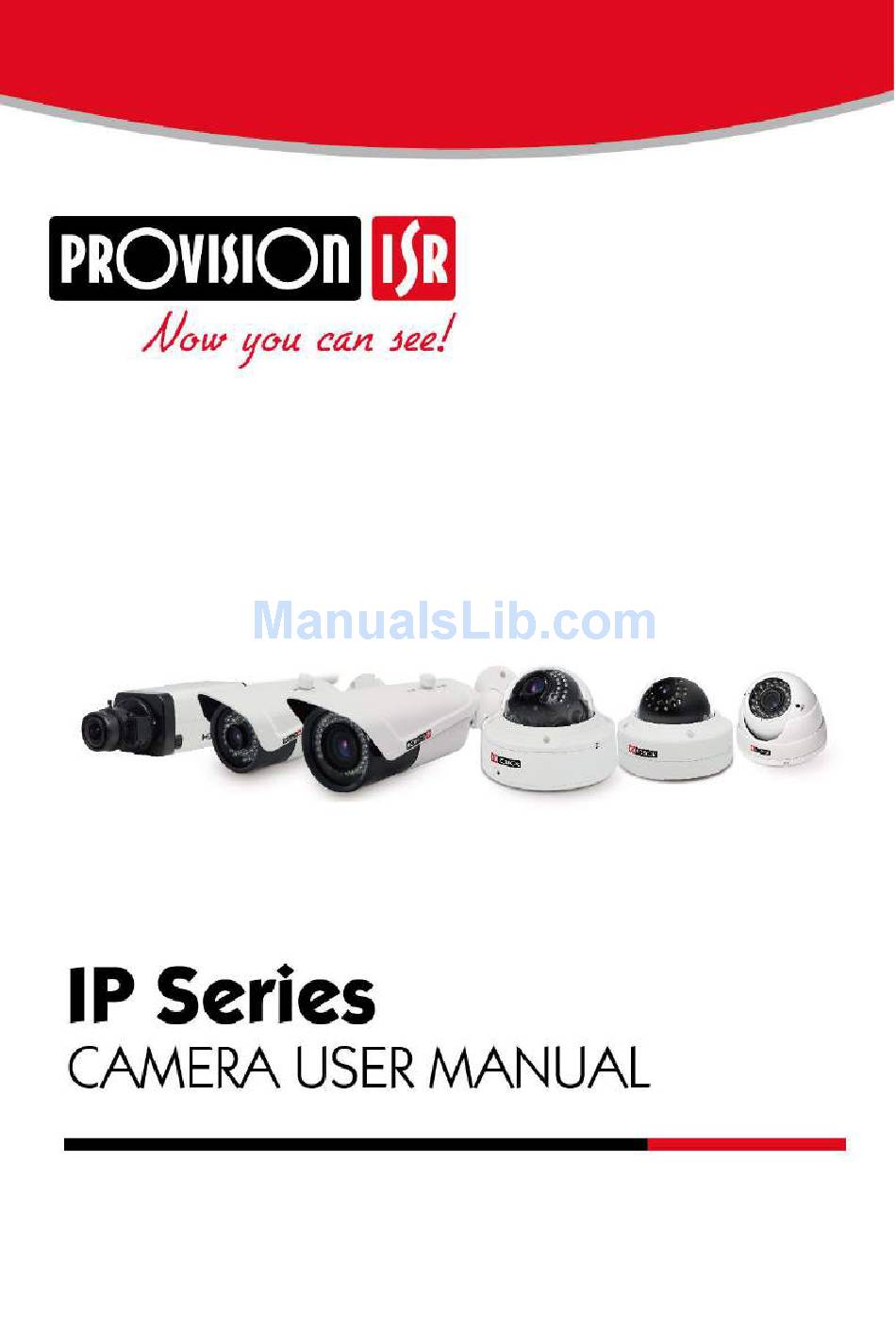

Page 1: User Manual

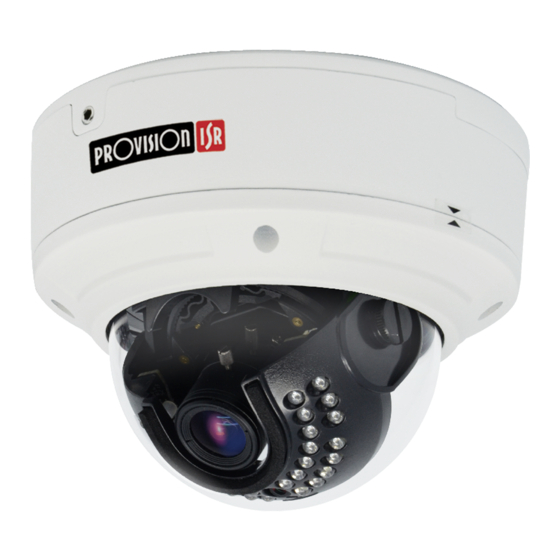

2 Mega Pixel Water-Proof IP Camera DAI-390IP04 User Manual Read this instruction carefully for correct use of the product... - Page 2 PROVISION-ISR DAI-390IP04 User Manual 1080P IR Anti-Vandal Fixed Lens IP Dome Camera For H.264 IP Camera All rights reserved...
- Page 4 Before use this product Before operation, we strongly advise users to read this manual and keep it properly for using later. There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this manual. The contents of this manual are subject to change without notice.
-
Page 5: Table Of Contents
IP CAMERA USER MUANUAL Table of Contents Introduction ......................1 1.1 Summarization ..........................1 1.2 Check Package Content ........................ 1 1.3 Connection ..........................1 Installation ......................2 Install IP-CAM to Ethernet Network ..................2 Install CMS ......................... 2 IE Remote Access ....................4 LAN ........................... - Page 6 IP CAMERA USER MUANUAL 5.5.2 Onvif Configuration ................... 26 Security Configuration..................27 5.5.3 Configure Backup & Restore ................27 5.5.4 Reboot Device ....................28 5.5.5 Upgrade ......................28 5.5.6 Mobile Surveillance ................... 29 Network Configuration ....................... 29 By Phones with iPhone OS ....................30 By Phones with Android ....................
-
Page 7: Introduction
Page 1 IP CAMERA USER MUANUAL 1 Introduction 1.1 Summarization This device (short for IP-CAM) is designed for high performance CCTV solutions. It utilizes most advanced technologies, such as video encoding and decoding technology and complies with the TCP/IP protocol, SoC., etc to ensure this system more stable and reliable. -
Page 8: Installation
Page 2 IP CAMERA USER MUANUAL Installation 2.1 Install IP-CAM to Ethernet Network The connection of digital video server is show below. Figure 2-1 Connection User can connect the PC and IP-CAMERA in accordance with above picture. Before connecting, please connect external devices, and then connect the power. The connection steps are as shown below: Step 1: Connect IP-CAM firstly. - Page 9 Page 3 IP CAMERA USER MUANUAL Item Specification Intel Pentium 3.0 GHz or AMD 3000+ Memory 160GB Recommended PC Specification -9 channels: Item Specification Intel Core 2 Duo 1.8 GHz or AMD Dual core 3800+ Memory 250GB Recommended PC Specification -16 channels: Item Specification Intel Core 2 Duo 2.2 GHz or AMD Dual core 3800+...
-
Page 10: Ie Remote Access
Page 4 IP CAMERA USER MUANUAL 3 IE Remote Access User can connect IP-Cam through LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows: 3.1 LAN In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser. -
Page 11: Directly Access Through Ie
Page 5 IP CAMERA USER MUANUAL For example, the network segment of this computer is 192.168.13.x under the local config table. So, please modify the IP address, Gateway of IP-Cam which must be in the same network segment with the computer. Modifying the network, you have to input the password and click “OK”... - Page 12 Page 6 IP CAMERA USER MUANUAL IP address: 192.168.226.201 Subnet Mask: 255.255.255.0 Gateway: 192.168.226.1 HTTP: 80 Data port: 9008 When use the IP-CAM for the first time, you should connect the device with the above default settings. Step 1: Manual setup the IP address of the PC. The network segment should be as same as the default settings of IP-CAM.
-
Page 13: Wan
Page 7 IP CAMERA USER MUANUAL 3.2 WAN a． Access through router or virtual server Step1: Connecting according to above steps in LAN; enter into System ConfigurationNetwork configurationBasic configuration to setup the port number as shown in Fig 3-1: Step 2: Enter into System ConfigurationNetwork configurationIP configuration to change IP address as shown in Fig 3-2: Notice: The steps above should be saved after the change of the port and IP address. -
Page 14: Remote Preview
Page 8 IP CAMERA USER MUANUAL Remote Preview 4.1 The Remote Preview Interface Fig 4-1 Remote Preview People icon Fix size Zoom in Zoom in Zoom out Full screen Start record Playback Snap Enable audio When motion detection alarm is triggered, the people icon turns red. ... -
Page 15: Right-Click Function
Page 9 IP CAMERA USER MUANUAL Fig 4-2 record playback interface After selecting the record date, the record files will be displayed in the record file list box. You can double click a certain record file to playback or check a certain file. Then click Play button to do playback. - Page 16 Page 10 IP CAMERA USER MUANUAL scroll bar to view all captured pictures. Fig 4-4 Single Snap Fig 4-5 Multi-picture Snap...
-
Page 17: Remote Live Surveillance
Page 11 IP CAMERA USER MUANUAL 5 Remote Live Surveillance Functions of remote configurations include: System Configuration, Video Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. User should firstly select the menu on the left, and then setup the relative parameters. When a user setup parameters of a certain device, other users can not setup this device. -
Page 18: Date & Time Configuration
Page 12 IP CAMERA USER MUANUAL 5.1.2 Date & Time Configuration Setting steps: 1. Enter into "System Configuration" “Date & Time”. Refer to Fig 5-2: 2. Select “Modify Time ", user can self-define time. Choose "Time Zone" according to your location. 3. -
Page 19: Video Stream
Page 13 IP CAMERA USER MUANUAL 2. User can adjust Brightness, Contrast, Hue and saturation of the picture. 3. Select white balance mode. 4. .WDR, Sharpen, denoise, frequency and CVBS format are adjustable. 5. User can also enable the image mirror and image overturn function. 6. -
Page 20: Alarm Configuration
Page 14 IP CAMERA USER MUANUAL 5.3 Alarm Configuration Alarm configuration includes three submenus: Motion Detection Area, Motion Detection Trigger and Motion Detection Schedule. 5.3.1 Motion Detection Area 1. Enter into “Alarm configuration""Motion Detection Area" to see an interface as shown Fig 5-6: 2. -
Page 21: Motion Detection Schedule
Page 15 IP CAMERA USER MUANUAL Fig 5-7 Motion Alarm Trigger 5.3.3 Motion Detection Schedule Enter into “Alarm configuration" "Motion Detection schedule" interface as shown in Fig 5-8: Week schedule User could set the alarm time from Monday to Sunday for alarm everyday in one week. Note: The lengthwise means one day of a week;... -
Page 22: Network Configuration
Page 16 IP CAMERA USER MUANUAL Fig 5-8 Motion Detection Schedule 5.4 Network Configuration Network configuration includes ten submenus: Port, Wired, NET traversal Config, Server Configuration, IP Notify, DDNS Config, RTSP, UPNP, Mail Setting and FTP. 5.4.1 Port 1. Enter into "Network config""Port" to see the interface as shown in Fig 5-9: Fig 5-9 Port Config 2. -
Page 23: Net Traversal Configuration
Page 17 IP CAMERA USER MUANUAL Fig 5-10 Wired Config 2. There are two Options for setup IP: obtain an IP address auto by DHCP protocol and use the following IP address, user can choose one of options for requirements. 3. -
Page 24: Server Configuration
Page 18 IP CAMERA USER MUANUAL Fig 5-12 Login 4. Input the only device ID of the IP-CAM or user-defined name. And then input user name and password. Note: The default user name and password are “admin” and “123456” respectively. 5.4.4 Server Configuration Enter into “Network Configuration”... -
Page 25: Ddns Configuration
Note: DDNS is used to register for a hostname with DDNS username and password. Provision ISR now allows you to use our mint DDNS server in order to create a virtual address for your DVR/NVR/IP-Camera on the internet. Each account is limited to 35 different addresses using your preferred domain name address instead of using IP addresses. - Page 26 Page 20 IP CAMERA USER MUANUAL If there is no problem with the domain registration you will see the following message: “Your domain was successfully created.” If you do not see this message, the domain name you requested is already in use and you will be requested to provide an alternate domain name (please note: domain name is sometimes called host name).
- Page 27 Page 21 IP CAMERA USER MUANUAL 1. Apply the Domain Name (Take dns2p for example) Register in the Web Step 1: Fill in the blank of IE address with ‘www.dns2p.com’. Step 2: Click to enter the website. Step 3: Click "New User" in the right of homepage to register. For example: User ID is ‘abc’, and password is ‘123456’.
-
Page 28: Rtsp
Page 22 IP CAMERA USER MUANUAL Note: Time of probationary period is one month. If user wants to use it continuatively after one month, please Step 4: click "Buy Now" in the right of homepage to pay for it. 2. Setup in the IP-CAMERA ⑴... -
Page 29: Upnp
Page 23 IP CAMERA USER MUANUAL 3.RTSP Address: An example of the RTSP address inputted in the media player. 4. You can also choose to enable anonymous viewer login. Note: This device support VLC player. You can download the VLC player from the related website. -
Page 30: Mail Setting
Page 24 IP CAMERA USER MUANUAL 5.4.9 Mail Setting Enter into “Network Configuration” “Mail Setting” interface. Please refer to Fig 5-18. Fig 5-18 Mail Setting 1. From Email: sender’s e-mail address 2. User name and password: sender’s user name and password 3. -
Page 31: Advanced Configuration
Page 25 IP CAMERA USER MUANUAL 3. Delete：Select certain FTP account; Click this button to delete this account 4. Test ：Select certain FTP account; Click this button to test its valid or not. Please refer to the following table for parameters and instructions of FTP configuration. Parameter Meaning Server name... -
Page 32: Onvif Configuration
Page 26 IP CAMERA USER MUANUAL Modify user: 1. Select the user which needs to modify password and physical address in the user configuration list box. 2. Clicking “Modify” button will pop up “Modify user” dialog box as shown below. Fig 5-23 Modify User 3. -
Page 33: Security Configuration
Page 27 IP CAMERA USER MUANUAL Fig 5-24 Onvif Config 5.5.3 Security Configuration Enter into Advanced ConfigurationSecurity Configuration to see a tab shown in Fig 5-25: Check “Enable IP address” check box, select “Deny the following IP address”, input IP address in the IP address list box and click “Add”... -
Page 34: Reboot Device
Page 28 IP CAMERA USER MUANUAL User can import or export the setting information from PC or to device. 1. Click “Browse” to select save path for import or export information on PC. 2. User can import or export all setting information to PC, but those two settings “user configuration”... -
Page 35: Mobile Surveillance
Page 29 IP CAMERA USER MUANUAL 6 Mobile Surveillance This IP-CAM supports mobile surveillance by phones with Windows mobile, iPhone, Android and Blackberry OS. Please check the operation system version of mobile before use; and connect the IP-CAM to Internet. 6.1 Network Configuration ... -
Page 36: By Phones With Iphone Os
Page 30 IP CAMERA USER MUANUAL 6.2 By Phones with iPhone OS Install through Iphone. Step 1: Open App Store software as shown in the figure on the left. Step2: Search “Provision Cam” and click “Free” button as shown in the figure on the right. Step 3: Click “Install App”... - Page 37 Page 31 IP CAMERA USER MUANUAL "Provision Cam" Instruction 1. Login Step 1: Choose network type. There are two network connection ways: 3G/3G +WIFI, enhanced video quality. This network supports main stream and sub stream. The real-time image will be displayed by using sub stream. 3G, normal video quality compared to the former network type.
- Page 38 Page 32 IP CAMERA USER MUANUAL ：Screen mode button. You can choose 1，4，6，8，9， 13 or 16 screen display mode. ：Favorite channel display button. If you save your favorite channel in the favorite server list, clicking this button will directly play all favorite channels you have saved. ：Snap button.
- Page 39 Page 33 IP CAMERA USER MUANUAL to delete this device. Edit device: Click button behind the device name to edit the information of this device. Backup & restore: It is recommended to click “Backup” button to reserve the information of all devices.
- Page 40 Page 34 IP CAMERA USER MUANUAL Fig 2 Fig 3 Fig 4 Fig 5 CMS Function This function makes multi-device managements and preview come true. Step 1: Click to enable CMS function. When this icon turns green, it means this function is enabled. Step 2: Click to choose channel as shown in the right picture.
- Page 41 Page 35 IP CAMERA USER MUANUAL Favorite channels of the device Step 1: Click to enter into device management list. Click the device name to extend channel. Enlighten the channels to save favorite channels as shown in the following picture on the left.
-
Page 42: By Phones With Android
Page 36 IP CAMERA USER MUANUAL By Phones with Android Software Installation Step 1: Run “Play Store” (or Google market) program. Step 2: Search “Provision Cam”. Step 3: Press “Install” button. Step 4: Install the software subject to the notes. Once the downloading is done, the software will install automatically Login Menu Step 1: Configure the network of your device and mobile phone. - Page 43 Page 37 IP CAMERA USER MUANUAL Main Menu Live View The first picture The previous picture Next picture The last picture Zoom in Zoom out Delete Record Playback: Click “Playback” in the main menu interface to enter playback interface. Then choose the channel you want to playback.
- Page 44 Page 38 IP CAMERA USER MUANUAL Settings: In the main menu interface, click “Settings” to enter the settings interface where you can configure local settings. Click “Local” to enter local settings interface. In this interface, you can set favorite channel and storage. Favorite Channel: Check the favorite channels and click “Save”...
-
Page 45: Use Method For Ip-Tool
Page 39 IP CAMERA USER MUANUAL Use method for IP-TOOL Updating through IP-Tool Note: Do not cut off power supply and internet when updating; If the device is unable to start because of the failure of upgrade, it needs to retrofit. First，... - Page 46 Page 40 IP CAMERA USER MUANUAL Modify IP address and click OK button to exit the dialog box, IP-Tool will display the new IP address. Upgrading Software Select the device and right click to choose “Update software” menu. Input the username and password.
- Page 47 Page 41 IP CAMERA USER MUANUAL Enter into Kernel upgrade dialog box, input user name and password, click “Browse” to select the Update file (mboot8180-8180) and click “Update” button to start updating. When upgrading, please do not disconnect PC to device and make sure the power is on. The update progress bar will display as below: After finishing upgrading, a message box will pop up.
- Page 48 Page 42 IP CAMERA USER MUANUAL 8 Q & A Q: Forget password A：Joint the default line and GND line to reset. Note: Default IP: 192.168.226.201 User name: admin Password: 123456 Q：Why can’t the devices connect through IE browser? A: Network doesn’t connect well. Please check the connection and make sure it connected well.
- Page 49 Page 43 IP CAMERA USER MUANUAL Fig 4-1 Fig 4-2 ④ then click ok to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. Q：No sound can be heard. A：Without connect audio input device. Please connect and try again. B: Without enable audio function at the corresponding channel.
-
Page 50: Specification
Page 44 IP CAMERA USER MUANUAL 9 Specification Model DAI-390IP04 Image Sensor Sony Exmor IMX122 1/3" CMOS Effective Pixels 1920x1080 Electronic Shutter 1/25s ~ 1/100000s Day & Night Min. Illumination 0lux (IR ON) Audio compression G711A Communication One Way Audio... - Page 51 Page 45 IP CAMERA USER MUANUAL Notes:...
- Page 52 Page 46 IP CAMERA USER MUANUAL...
