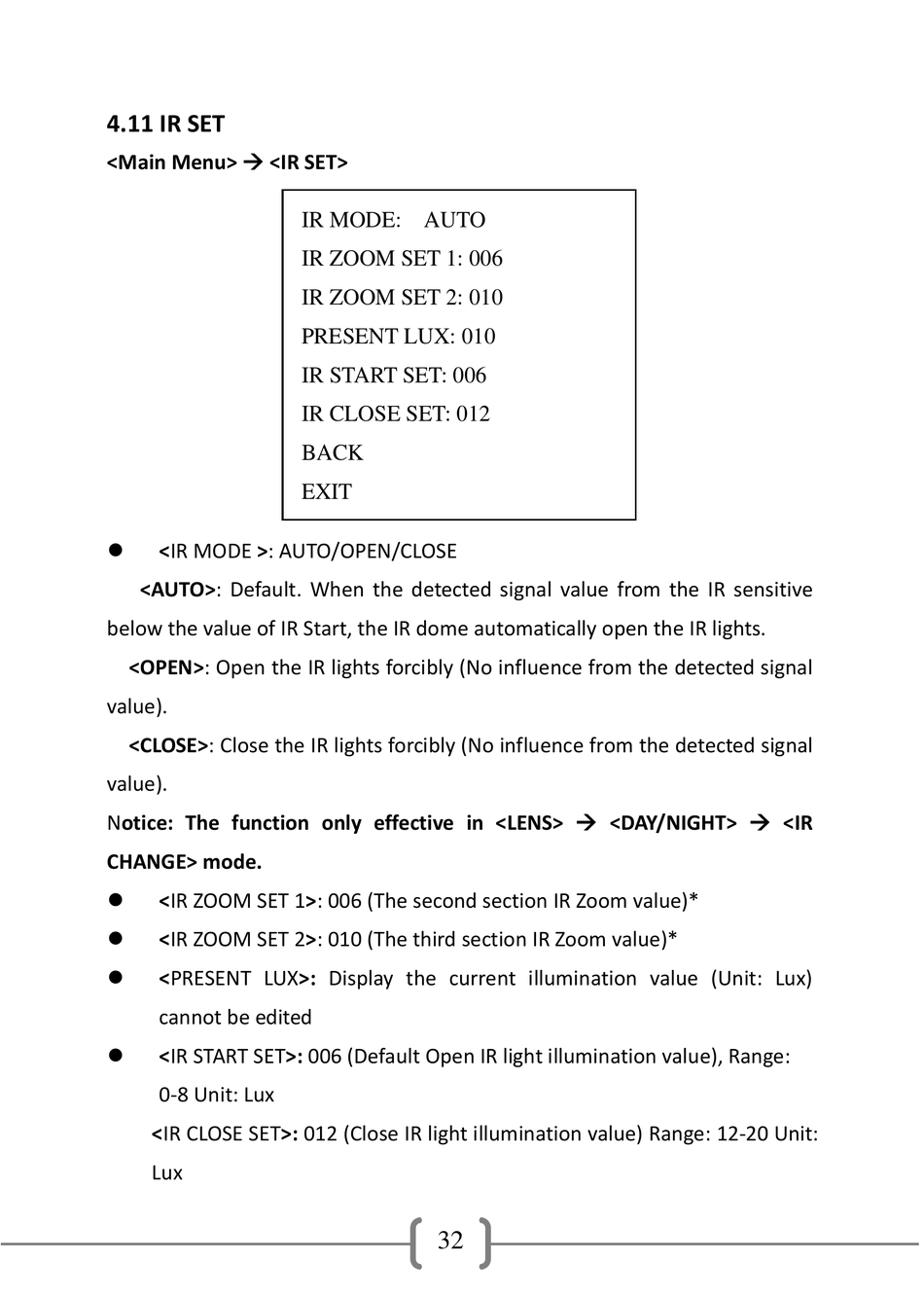

4.11 IR SET

<Main Menu>  <IR SET>
<IR MODE >: AUTO/OPEN/CLOSE

<AUTO>: Default. When the detected signal value from the IR sensitive
below the value of IR Start, the IR dome automatically open the IR lights.
<OPEN>: Open the IR lights forcibly (No influence from the detected signal
value).
<CLOSE>: Close the IR lights forcibly (No influence from the detected signal
value).
Notice: The function only effective in <LENS>  <DAY/NIGHT>  <IR
CHANGE> mode.
<IR ZOOM SET 1>: 006 (The second section IR Zoom value)*

<IR ZOOM SET 2>: 010 (The third section IR Zoom value)*

<PRESENT LUX>: Display the current illumination value (Unit: Lux)

cannot be edited
<IR START SET>: 006 (Default Open IR light illumination value), Range:

0-8 Unit: Lux
<IR CLOSE SET>: 012 (Close IR light illumination value) Range: 12-20 Unit:
Lux
IR MODE: AUTO
IR ZOOM SET 1: 006
IR ZOOM SET 2: 010
PRESENT LUX: 010
IR START SET: 006
IR CLOSE SET: 012
BACK
EXIT
