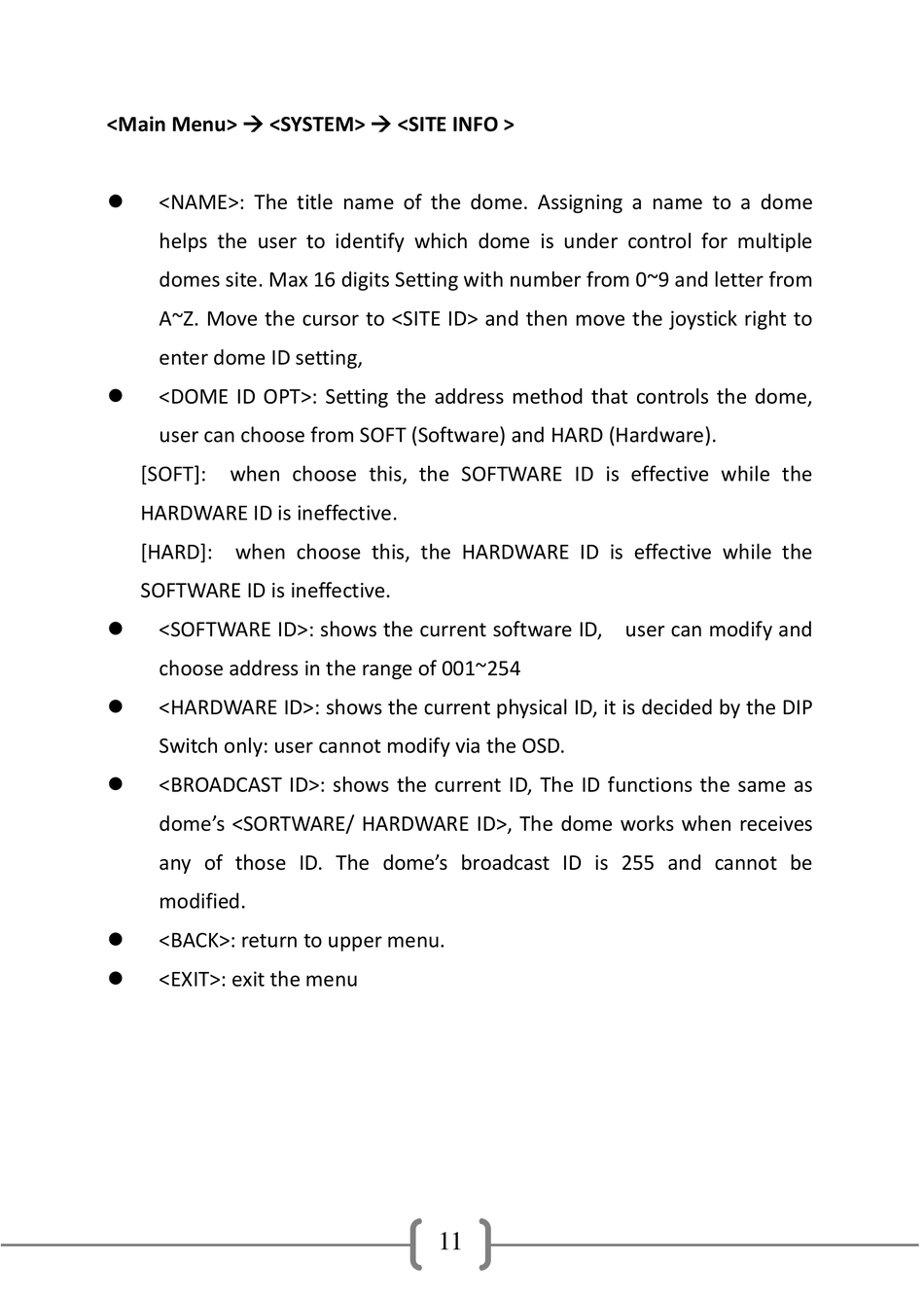

Provision ISR Z-22IR User Manual page 12

<Main Menu>  <SYSTEM>  <SITE INFO >
<NAME>: The title name of the dome. Assigning a name to a dome

helps the user to identify which dome is under control for multiple
domes site. Max 16 digits Setting with number from 0~9 and letter from
A~Z. Move the cursor to <SITE ID> and then move the joystick right to
enter dome ID setting,
<DOME ID OPT>: Setting the address method that controls the dome,

user can choose from SOFT (Software) and HARD (Hardware).
[SOFT]: when choose this, the SOFTWARE ID is effective while the
HARDWARE ID is ineffective.
[HARD]: when choose this, the HARDWARE ID is effective while the
SOFTWARE ID is ineffective.
<SOFTWARE ID>: shows the current software ID, user can modify and

choose address in the range of 001~254
<HARDWARE ID>: shows the current physical ID, it is decided by the DIP

Switch only: user cannot modify via the OSD.
<BROADCAST ID>: shows the current ID, The ID functions the same as

dome's <SORTWARE/ HARDWARE ID>, The dome works when receives
any of those ID. The dome's broadcast ID is 255 and cannot be
modified.
<BACK>: return to upper menu.

<EXIT>: exit the menu

11
