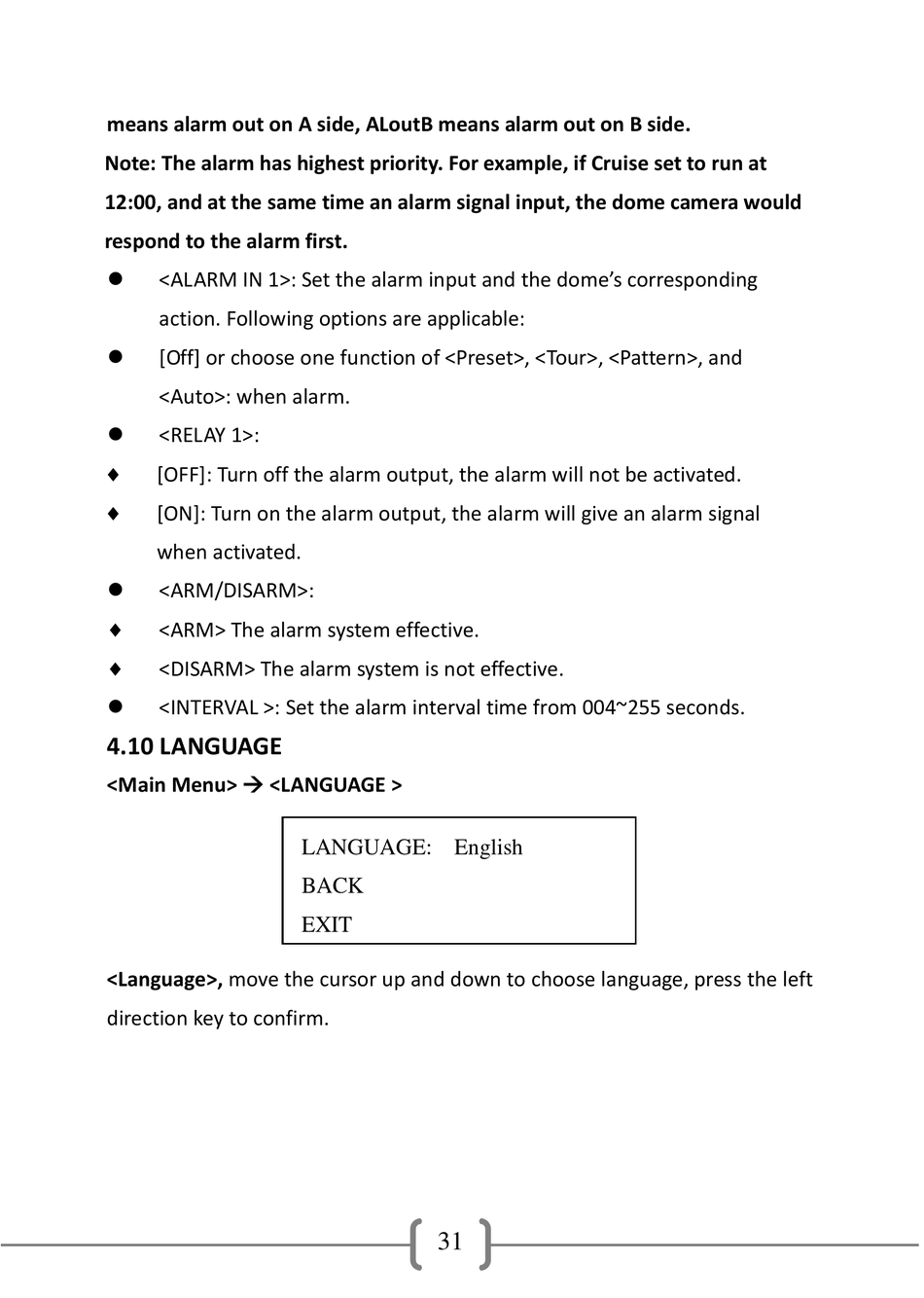

means alarm out on A side, ALoutB means alarm out on B side.
Note: The alarm has highest priority. For example, if Cruise set to run at
12:00, and at the same time an alarm signal input, the dome camera would
respond to the alarm first.
<ALARM IN 1>: Set the alarm input and the dome's corresponding

action. Following options are applicable:
[Off] or choose one function of <Preset>, <Tour>, <Pattern>, and

<Auto>: when alarm.
<RELAY 1>:

♦
[OFF]: Turn off the alarm output, the alarm will not be activated.
♦
[ON]: Turn on the alarm output, the alarm will give an alarm signal
when activated.
<ARM/DISARM>:

♦
<ARM> The alarm system effective.
♦
<DISARM> The alarm system is not effective.
<INTERVAL >: Set the alarm interval time from 004~255 seconds.


4.10 LANGUAGE

<Main Menu>  <LANGUAGE >
<Language>, move the cursor up and down to choose language, press the left
direction key to confirm.
LANGUAGE: English
BACK
EXIT
