Summary of Contents for Provision ISR ZP-20A-2(IR)

  • Page 2 Package Contents: Item ZP-20A-2(IR) Qty. ZP-20A-2(IR) Wall Bracket Hinge Pin Rubber Seal AC power supply Wall Screws PM8*25 socket head screws Allan Key Item ZE-20A-2(IR) Qty. ZE-20A-2(IR) Wall Bracket DC power supply Wall Screws PM8*25 socket head screws Allan Key...

  • Page 3: Table Of Contents

    Table of Contents: 1 General Instructions: ..............3 1.1 Safety Instructions: ................3 1.2 Warnings: ..................3 2 Features: ..................4 2.1 Product Picture: ................4 2.2 Product Features ................4 2.3 Specifications: .................. 5 3 Installation Site Preparations: ............. 7 3.1 Tool List: ...................

  • Page 4: General Instructions

    1 General Instructions: 1.1 Safety Instructions: ◆ Make sure to read the user manual before using the camera. ◆ Always follow national and local safety codes during the installation. ◆ Only a qualified and experienced person can carry the installation and maintenance for this camera.

  • Page 5: Features

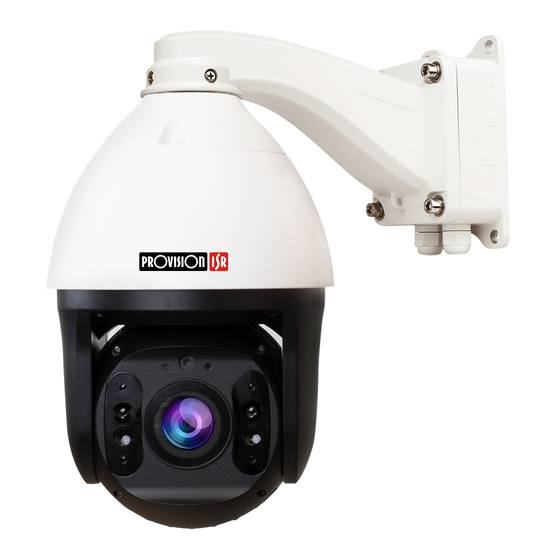

    2 Features: 2.1 Product Picture: ZP-20A-2(IR) ZE-20A-2(IR) 2.2 Product Features (Items marked with * are only available in ZP-20A-2(IR) Pro solution) ◆ Alarm I/O: 1 Input/ 1 Output* ◆ CoC Support ◆ 4 in 1 (AHD/TVI/CVI/CVBS) ◆ Adaptive PELCO-P/D protocol. ◆...

  • Page 6: Specifications

    magnetic shield and heat radiation. ◆ The underpart dome adopts full metal class points bin type design for fast heat dissipation and anti-mist, non-interference light source images and long life span IR light. ◆ Integral Junction box for easy installation* 2.3 Specifications: Model ZP-20A-2(IR)
  • Page 7 Flip ON/OFF Picture Freeze Iris Auto Power Supply AC24V±5%, 3A DC12V, 2A Sync system Internal Sync Language English Signal Output 4 in 1 AHD/TVI/CVI/CVBS + PAL/NTSC IR Distance 100 IR LED Array Pan Speed 0.01°~350°/s 0.01°~60°/s (Max. (Max. Preset Preset Speed) Speed) Tilt Speed 0.01°~120°/s...

  • Page 8: Installation Site Preparations

    3. Installation Site Preparations: 3.1 Tool List: (1) Screws* (2) Monkey wrench (3) Philips screwdriver (4) Straight Screwdriver (5) Wire stripper (6) Socket head wrench (7) Electric drill (8) Hammer (9) BNC connector (10) BNC Clamp *Included in the kit 3.2 Installation Preparation: (1) Check the space and toughness of the site and make sure that the environmental conditions meet the installation requirements for this product.

  • Page 9: Product Dimension

    AHD/TVI/CVBS Command Set #85 preset, Call the preset number of Please note: you will have to use “Save the desired video type Position” or delete and recreate the signal: preset if you need to use it more than e.g. “14” for CVBS/NTSC CVBS once –...

  • Page 10: Setup Of The Osd Menu

    4. Setup of the OSD Menu: 4.1 Display Boot-UP Info. Before installation please check the protocol, baud rate, address, and RS485 data cable. Default Settings: Protocol: PELCO-D, address: 1, baud rate: 2400. VERSION: VR210P-306 SIGNAL:AHD PAL PROTOCOL: PELCO P D BAUD RATE: 2400 CAMERA ID: 001 TEMP: 36...

  • Page 11: System Menu

    4.3 SYSTEM Menu: <Main Menu> → <INFORMATION> INFORMATION DOME SETTINGS MOTION RESTART FACTORY DEFAULTS EXIT The user can check the dome system information as required. The system information includes Version, dome address, baud rate, temperature, voltage. 4.3.1 INFORMATION INFORMATION VERSION: VR210P-306 ADDRESS:001 BAUDRATE:2400 TEMPERATURE:37...
  • Page 12 4.3.2 DOME SETTING DOME SETTING IR LED WIPER PART ACTION ALARM PRIVACY MASK ADVANCED OTHER BACK EXIT 4.3.2.1 IR LED IR LED SETTING CONTROL MODE:AUTO SENSITIVITY:----218 NEAR POWER:100 FAR POWER:100 COMPENSATION:0 BACK EXIT The user can open and close the IR LED manually and set up the IR LED work mode under this OSD mean.
  • Page 13 AUTO IR LED will be opened or closed automatically according to the light conditions. IR LED forcedly open IR LED forcedly close CAMERA IR LED status (Open/Close) will be synchronized with Camera day and night switching Sensitivity: Users can manually set the sensitivity from 1-10. The smaller the number is, the lower light of the environment will be when the IR LED on.
  • Page 14 4.3.2.4 ALARM (Only available for ZP-20A-2(IR) ALARM SETTING ALARM NO:1 CONTACT:NO ALARM MODE:OFF ACTION:NONE ALARM OUT:OFF RESET DELAY:10SEC BACK EXIT 4.3.2.5 ADVANCED ADVANCED FOCUS MODE: PUSH FOCUS LIMIT:3M (DOME SPEED) (TILT ANGLE) BACK EXIT 4.3.2.5.1 <ADVANCED> → <DOME SPEED SETTING> DOME SPEED SETTING DOME SPEED: 180 BACK...
  • Page 15 4.3.3 OTHERS OTHERS TEMP MODE:AUTO FAN ON TEMP:50 AUTO FLIP:ON STOP TIME:30 SEC MENU OFF:5MIN DISPLAY:OFF (AZIMUTH ZERO) BACK EXIT The user can set up TEMP MODE, INTERNAL FAN, AUTO FLIP, STOP TIME, MENU OFF here under the menu of “OTHERS” 1)TEMP MODE: To set up the control mode of dome fans and heaters.
  • Page 16 4.3.4MOTION MOTION PRESET SCAN TOUR PATTERN BACK EXIT The user can set up 4 motion detection scenes under this menu. 1)PRESET: The dome supports 255 presets. 2)SCAN: The dome supports 8 groups of the auto scan. 3)Tour: The dome supports 4 groups of the cruise. 4)PATTERN: The dome supports 4 pattern tours and each pattern cover at 5)most 10 Minutes of 500 commands.
  • Page 17 <SET>: Move the cursor here and press IRIS OPEN to enter. Move the dome to a defined position as a preset point and press IRIS OPEN to save the preset position. CALL: Move the cursor here and press IRIS OPEN to call up the current preset.
  • Page 18 this left boundary. 4)<RIGHT LIMIT>: Move the cursor here and press IRIS OPEN to enter. Move the dome to a defined position as the right limit and press IRIS OPEN to save this right boundary. 5)START: Move the cursor here and press IRIS OPEN to start the current scan. 6)SCAN SPEED: Move the cursor here and press IRIS OPEN to set up the scan speed ranging from 1-10.

  • Page 19: Advanced Camera Menu

    PATTERN PATTERN NO:1 START (SET) DELETE BACK EXIT The dome supports 4 pattern tours and each pattern cover at most 10 Minutes of 500 commands. Please check the following steps to set up a pattern. PATTERN NO.: Move the cursor here and press IRIS OPEN to enter the setup of Pattern Number.
  • Page 20 IMPORTANT!!! Changing any values the advanced menu might result in the camera malfunctioning OSD-DISP D&N AUTO MIRROR BRIGHT CONTRAST SHARPNESS AUTO 2D-NR 3D-NR RGAIN BGAIN ⚫ <OSD-DISP >: Do Not Change ⚫ <ADDR-DISP>: Do Not Change ⚫ <D&N>: Do Not Change ⚫...
  • Page 21 ⚫ <WDR>: Turning Digital WDR effect ON/OFF ⚫ <2D-NR>: Adjusting the level of 2D-NR noise reduction ⚫ <3D-NR>: Adjusting the level of 3D-NR noise reduction ⚫ <BLC>: switching OFF/ON. ⚫ <WB>: White Balance is normally compensated for by the automatic white balance gain control.

  • Page 22: Appendix I Shortcuts Key Chart

    APPENDIX I Shortcuts Key Chart: AHD/TVI/CVBS Command Shortcut Key Function (Set Preset) Set #84preset Proportional P/T OFF Set #85preset,Call Call the preset number of the desired video type signal: CVBS Set # 89preset Delete all presets Set #90 preset Set left limit Position Set #91preset Set right limit Position Set #92 preset...
  • Page 23 Set #108 preset Set cruise 2 Set #109 preset Set cruise 3 Set #110 preset Set cruise 4 Set #111 preset Set color-to-black function Set #112 preset the preset-dwell: 0S Set #113preset the preset-dwell: 5S Set #114preset the preset-dwell: 10S Shortcut Key Function (Call Preset) Call #67preset...
  • Page 24 CVI Command Shortcut Key Function (Set Preset) Set #50preset,Call Call the preset number of the desired video type signal: CVBS Set #51preset Proportional P/T OFF Set # 54preset Delete all presets Set #55 preset Restore Factory Setting Set #56 preset Park OFF Set #57 preset 60S Park time ON...
  • Page 25 Call #57 preset Start Pattern 1 Call #58 preset Start Pattern 2 Call #59 preset Start Pattern 3 Call #60 preset Start Pattern 4 Call #61 preset Call cruise 1 (default number 1~16 preset) Call #62 preset Call cruise 2 (default number 17~32 preset) Call #63 preset Call cruise 3 (default number 33~48 preset) Call #67preset...

  • Page 26: Appendix Ii Trouble Shooting

    APPENDIX II Trouble Shooting Troubles Reason Solution 1. The power supply is not 1. Correct the connection. No action when power on connected correctly. 2. Check the power supply LED 2. The fuse is broken. power indicator. 3. Replace the fuse. 1.
  • Page 27 The IR HD PTZ Camera gives you more of everything: Faster movements, higher accuracy, HD video performance, and easier installation.
