3.3 DIP Switch Setting:
(1)Default Settings: Pelco P/D (auto-detected), baud rate: 2400, address: 1.

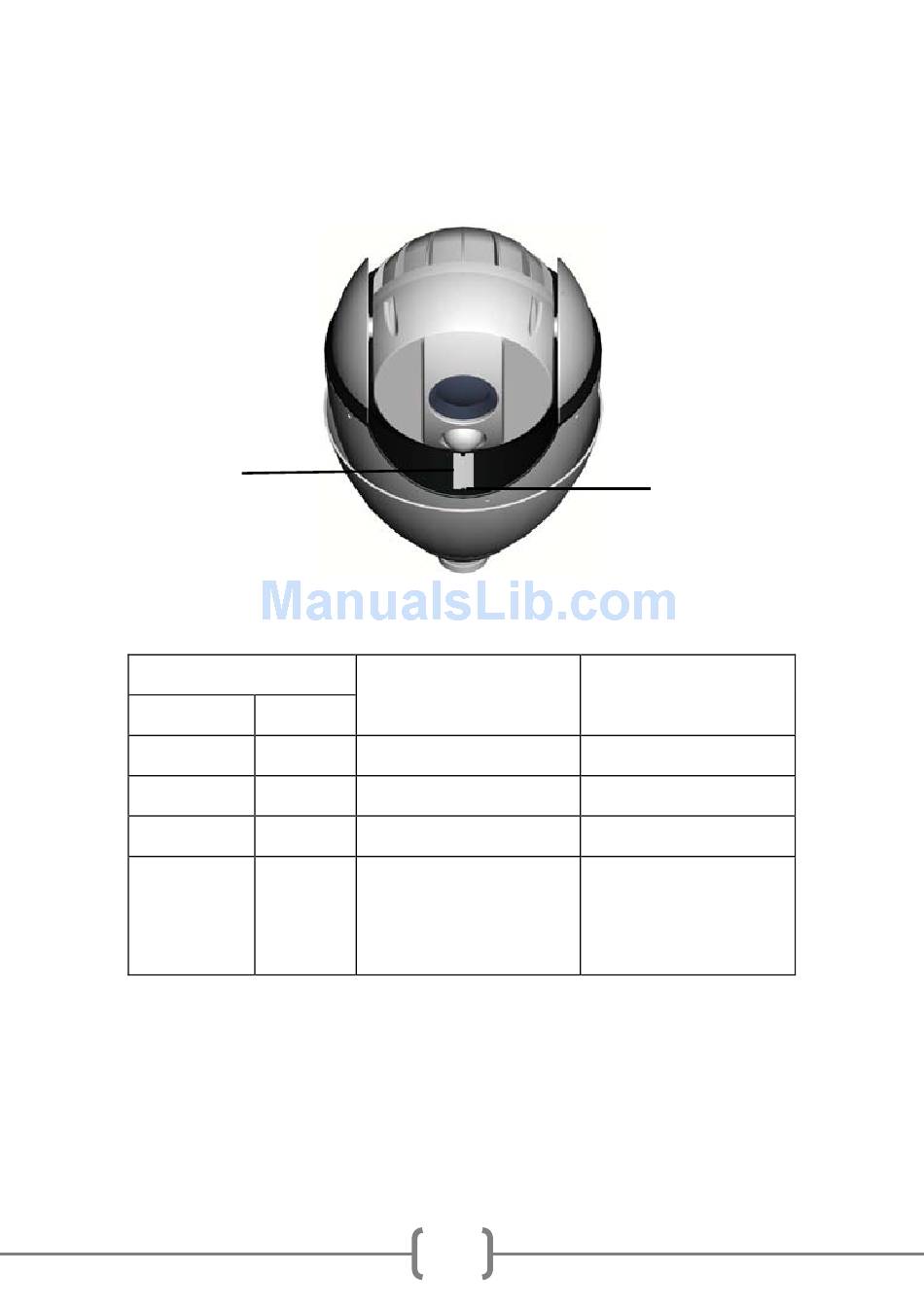

Use Philips screwdriver to remove the DIP switch cover (see location below)
DIP Switch
Position
(2)Baud Rate Setup
Decoder Switch: 9~10 (1=ON, 0=OFF)
Switch 9-10 setting
9
0
1
0
1
(3) When the DIP Switch 9th and 10th are ON, the PTZ can automatically
detected the baud rate 2400, 4800,9600,19200
(4) Hardware Address Setup*: Please refer to Appendix I.
*Please note that the address setting can also be configured via the
software using the camera OSD (Page 11).
Baud Rate
10
0 2400BPS
0 4800BPS
1 9600BPS
Auto detected 2400、
1 4800、9600、
19200BPS
7
Reset Position
Max transmission
distance(M)
1800
1200
800
600-1800
