Check IGN
Status
Power Management
 Power-off delay time is selectable by BIOS to disable and enable in 5 min / 2hr / 4hr
/ 12hr
 Ignition On/Off status detectable by SW
 If the ignition is off and the system is still on after 5 minutes, VBOX-3200 will shut
down automatically.
 If the ignition is turned on again and the power-off delay is in progress, VBOX-3200
will cancel the delay function and will continue to operate normally.
 If the ignition is turned on again and the power-off delay ended, VBOX-3200 will
shut down completely will power-on again automatically.
User's Manual
IGN off (Low)
More than 10 sec

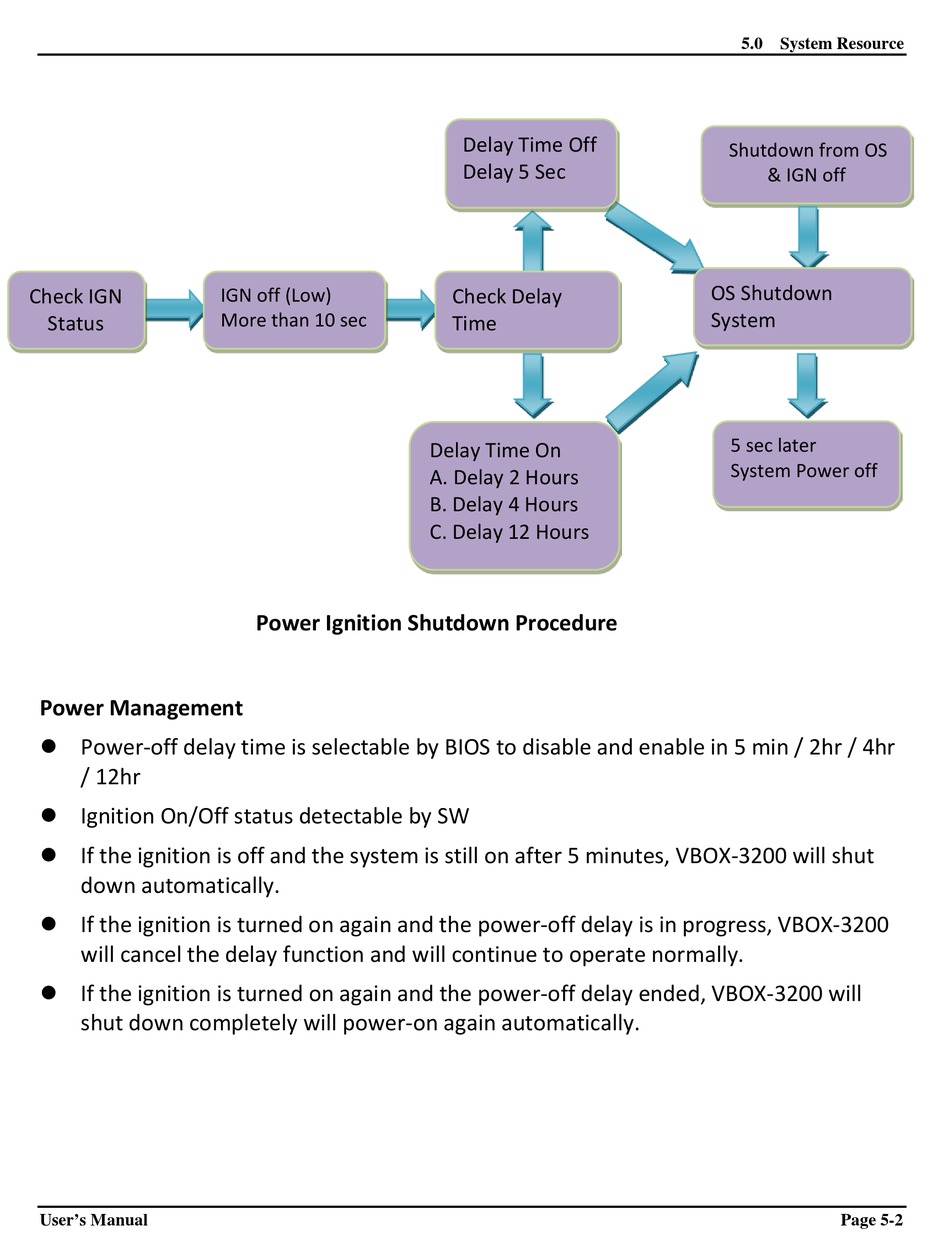

Power Ignition Shutdown Procedure
Delay Time Off
Delay 5 Sec
Check Delay
Time
Delay Time On
A. Delay 2 Hours
B. Delay 4 Hours
C. Delay 12 Hours
5.0 System Resource
Shutdown from OS
& IGN off
OS Shutdown
System
5 sec later
System Power off
