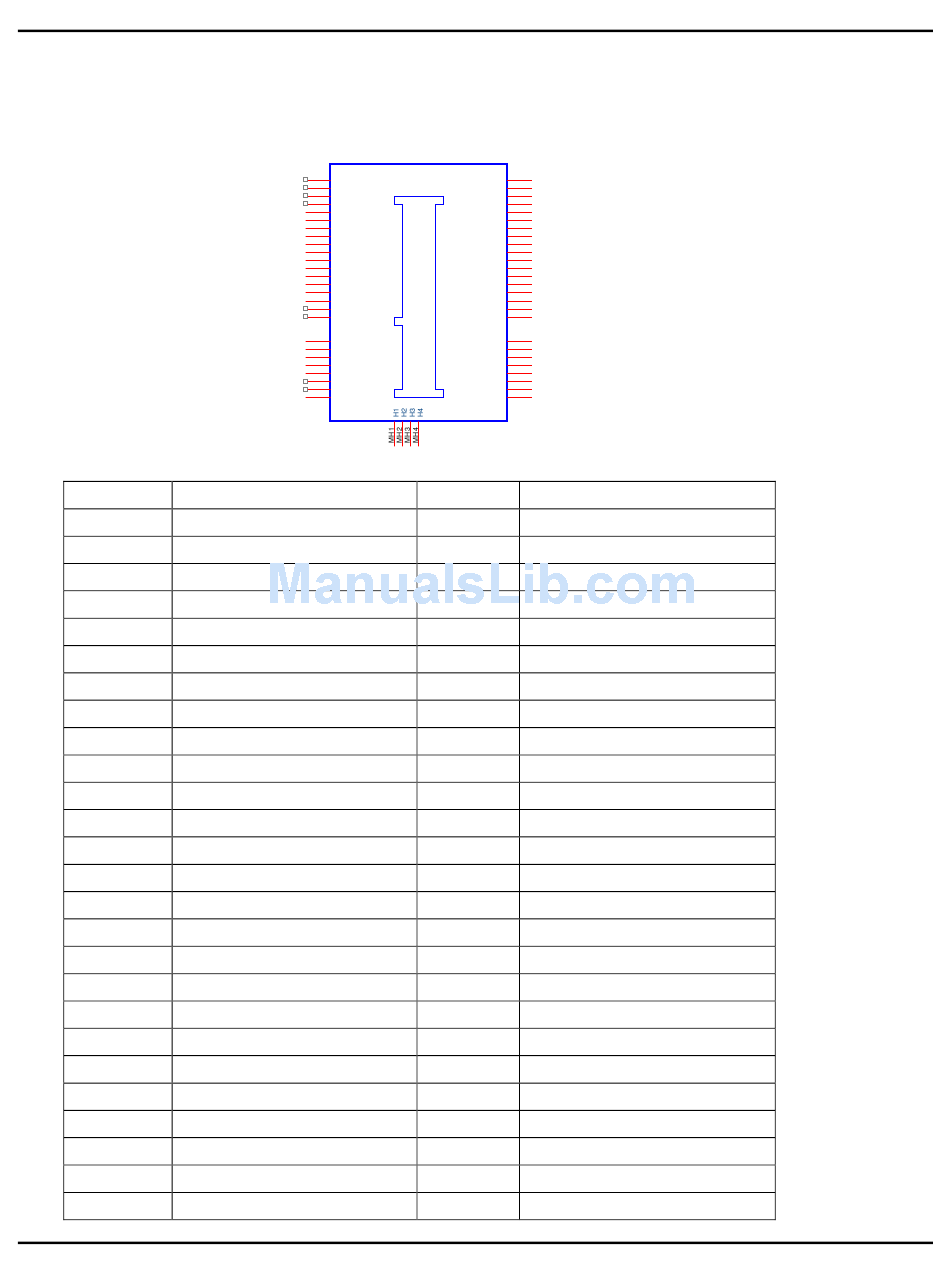

2.20 MINI CARD Connector (Mini Card2)

A. Connector size: 2 X 26 = 52 Pin
B. Connector location: MINICARD1
C.
Connector pin definition
Pin
1 PCIE_WAKE#
3 NC
5 NC
7 MINICARD2_CLKREQ#
9 GND
11 PCIE_MCARD2_CLK_N
13 PCIE_MCARD2_CLK_P
15 GND
17 NC
19 NC
21 GND
23 PCIE_MCARD2_RX_N
25 PCIE_MCARD2_RX_P
27 GND
29 GND
31 PCIE_MCARD2_TX_N
33 PCIE_MCARD2_TX_P
35 GND
37 GND
39 3VSB
41 3VSB
43 GND
45 NC
47 NC
49 NC
51 NC
User's Manual
MINICARD1
51
MINI PCIE CON
REV1
49
REV2
Ver:1.2
47
REV3
45
REV4
43
GND14
41
3.3VSB_5
39
3.3VSB_4
37
GND13
35
GND0
33
PETp0
31
PETn0
29
GND2
27
GND3
25
PERp0
23
PERn0
21
GND4
19
REV9/UIM_C4
17
REV10/UIM_C8
15
GND5
13
REFCLK+
11
REFCLK-
9
GND6
7
CLKREQ#
5
COEX2
3
COEX1
1
WAKE#
Signal
52
3.3VSB_2
50
GND7
48
1.5V_1
46
LED_WPAN#
44
LED_WLAN#
42
LED_WWAN#
40
GND8
38
USB_D+
36
USB_D-
34
GND9
32
SMBDAT
30
SMBCLK
28
1.5V_2
26
GND10
24
3.3VSB_1
22
PERST#
20
W_DISABLE#
18
GND11
16
UIM_VPP
14
UIM_RESET
12
UIM_CLK
10
UIM_DATA
8
UIM_PWR
6
1.5V_3
4
GND12
2
3.3VSB_3
Pin Signal
2 3VSB
4 GND
6 +1.5V
8 UIM_PWR
10 UIM_DATA
12 UIM_CLK
14 UIM_RST
16 UIM_VPP
18 GND
20 MINICARD0_DIS#
22 PCIE_RST#
24 3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_10N
38 USB_10P
40 GND
42 3.5G_LED_WWAN#
44 3.5G_LED_WAN#
46 3.5G_LED_WPAN#
48 +1.5V
50 GND
52 3VSB
