2.9

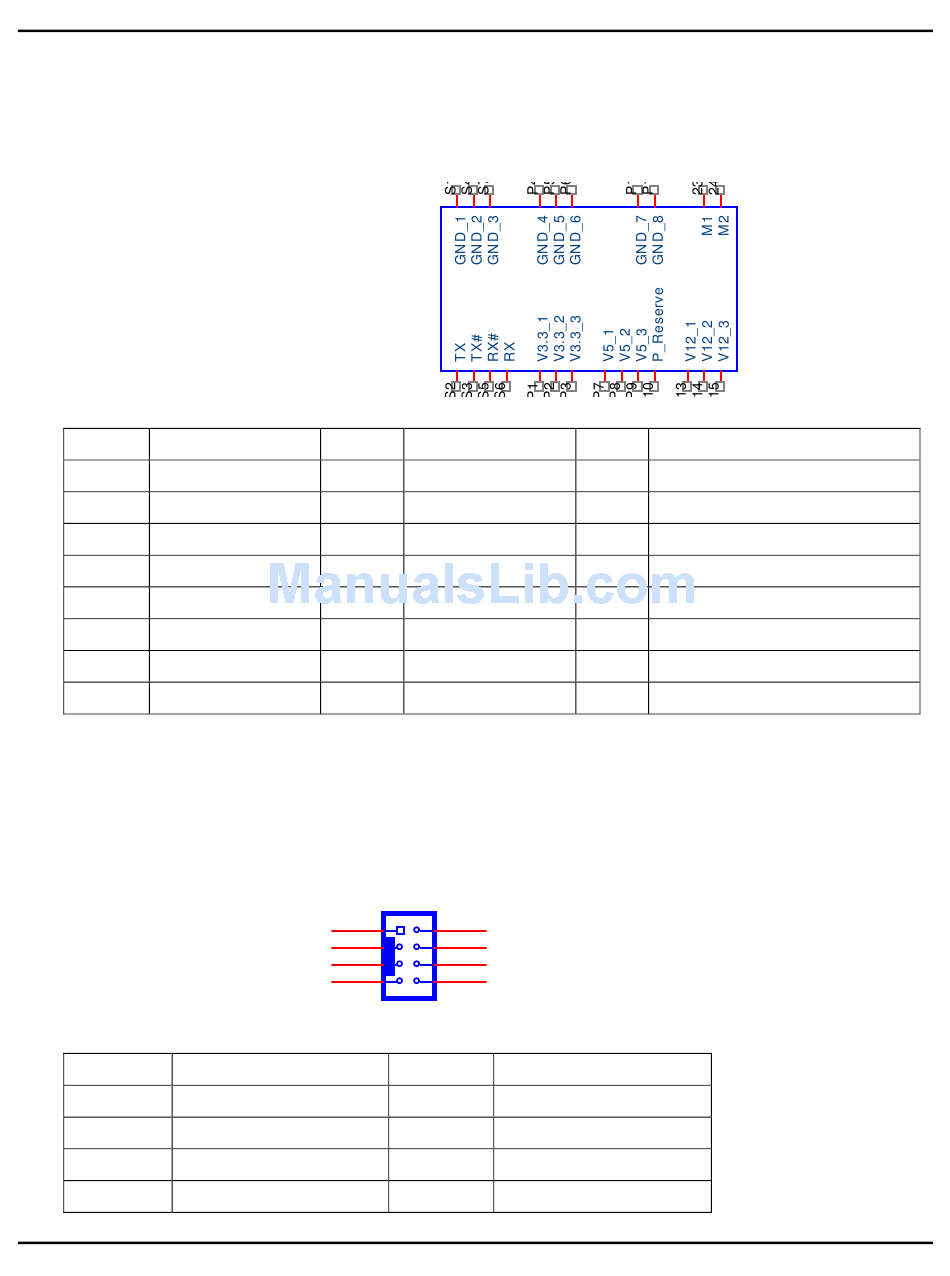

SATA Connector (SATA0)

A. Connector size: SATA-F-22P-90
B. Connector location: SATA2
C. Connector pin definition
Pin
S1 GND
S2 SATA_TXP0
S3 SATA_TXN0
S4 GND
S5 SATA_RXN0
S6 SATA_RXP0
S7 GND

2.10 USB JST Connector (USB4/5)

A. Connector size: 2 X 5 = 10 Pin
B. Connector location: USB5
C. Connector pin definition
Pin
1 5VSB_USB
3 USB4_N
5 USB4_P
7 GND
User's Manual
SATA2
SATA-F-22P-90
Signal Pin
P1
P2
P3
P4
P5
P6
P7
P8
USB5
1
3
5
7
JST-2.0mm-M-180
Signal
Signal
NC
NC
NC
GND
GND
GND
+5V
+5V
2
4
6
8
Pin Signal
2 5VSB_USB
4 USB5_N
6 USB5_P
8 GND
2.0 Internal Connector Specification
Pin Signal
P9 +5V
P10 NC
P11 GND
P12 GND
P13 NC
P14 NC
P15
Page 2-6
