3.5

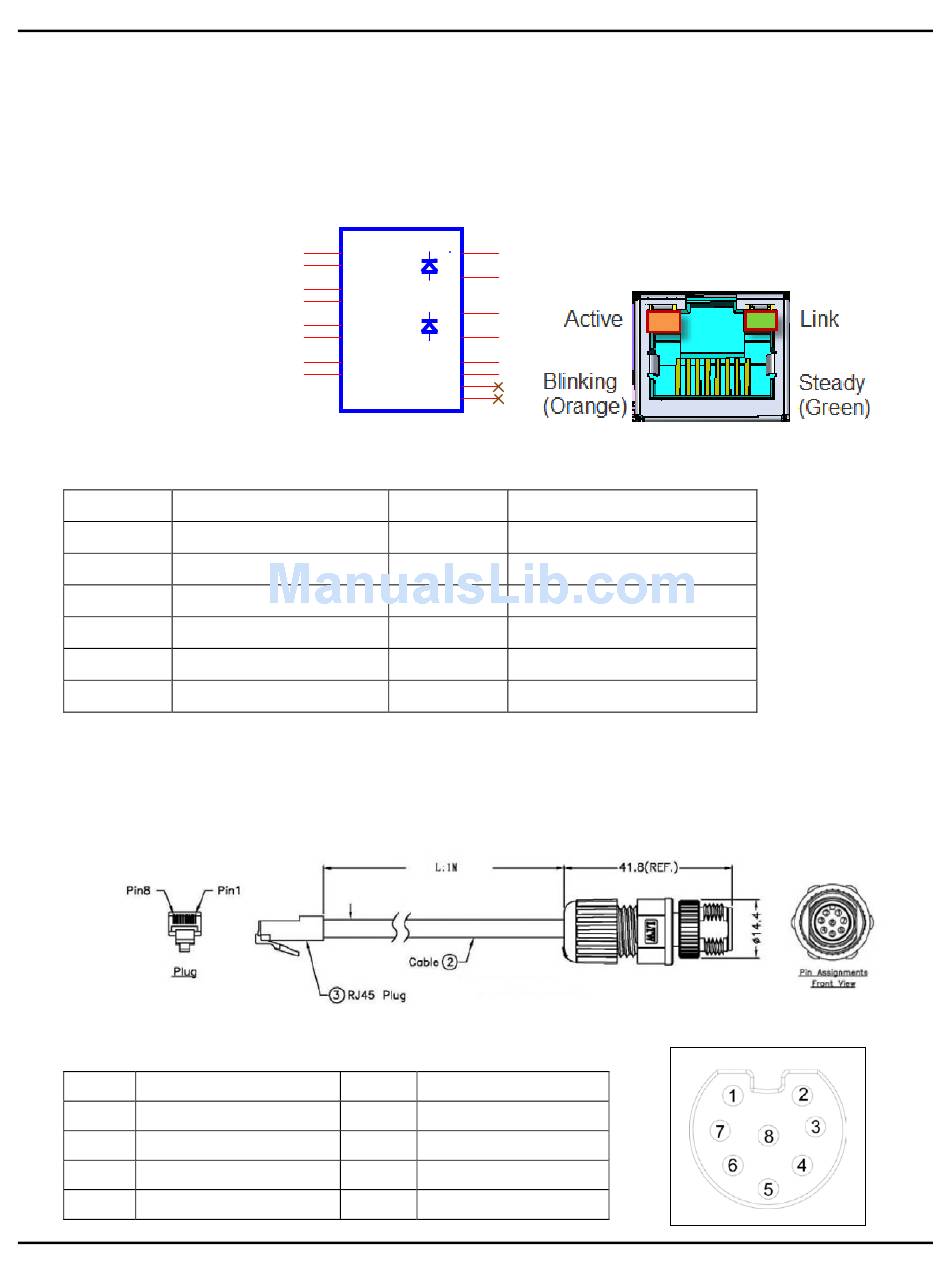

RJ45 Connector (LAN1)

A. Connector size: RJ45+LED
B. Connector location: LAN1
C. Connector pin definition
Pin
1 LAN1_MDI0P
3 LAN1_MDI1P
5 LAN1_MDI2N
7 LAN1_MDI3P
9 LAN1_ACT#
11 LAN1_LINK#
3.6

M12 Connecting to the Network

A. M12 to RJ45 Cable
B. M12 connector pin define
Pin
1 TD1+
3 TD2+
5 TD3-
7 TD4+
User's Manual
LAN1
1
TD1+
2
TD1-
3
TD2+
6
TD2-
4
TD3+
5
TD3-
7
TD4+
8
TD4-
RJ45+LED-90
Signal
Signal Pin
2
4
6
8
Green(R)
12
L1
11
L2
Orange(L)
10
L3
9
L4
H1
MG1
H2
MG2
H3
NH1
H4
NH2
Pin
2 LAN1_MDI0N
4 LAN1_MDI2P
6 LAN1_MDI1N
8 LAN1_MDI3N
10 LAN1_ACTPW
12 LAN1_LINKPW
Signal
TD1-
TD3+
TD2-
TD4-
3.0 External Connector Specification
Signal
