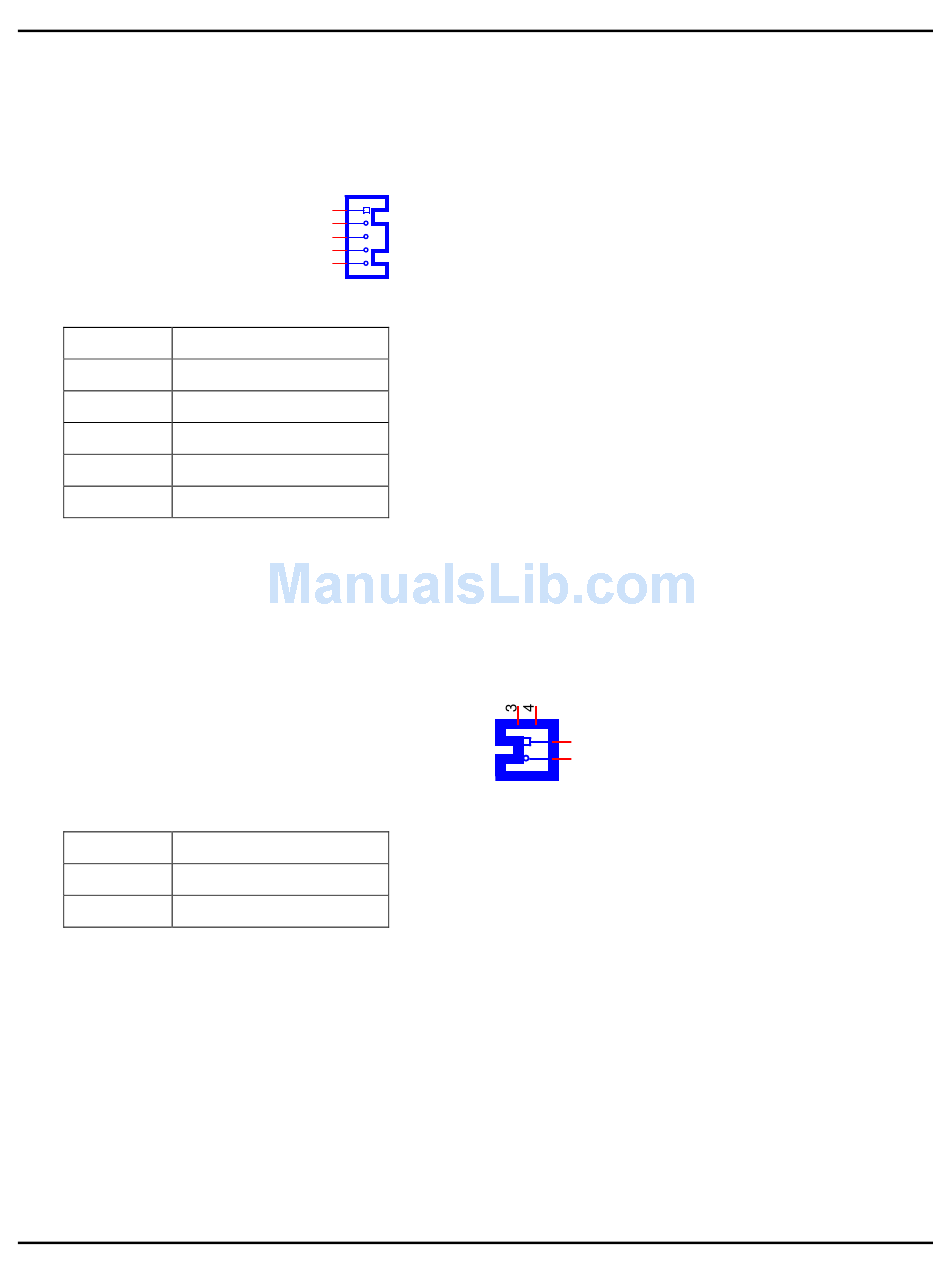

2.13 Download Port JST Connector

A. Connector size: 1 X 5 = 5 Pin
B. Connector location: J5
C. Connector pin definition
Pin
1 +3.3V_MCU
2 C2D
3 MRST
4 C2CK
5 GND

2.14 BATTERY Connector (Recommend to use CR2032 Battery)

A. Connector size: 1 X 2 = 2 Pin
B. Connector location: J9
C. Connector pin definition
Pin
1 VBAT
2 GND
User's Manual
J5
1
2
3
4
5
JST-2.0mm-M-180
Signal
J9
JST-1.25mm-M-180
Signal
2.0 Internal Connector Specification
1
2
