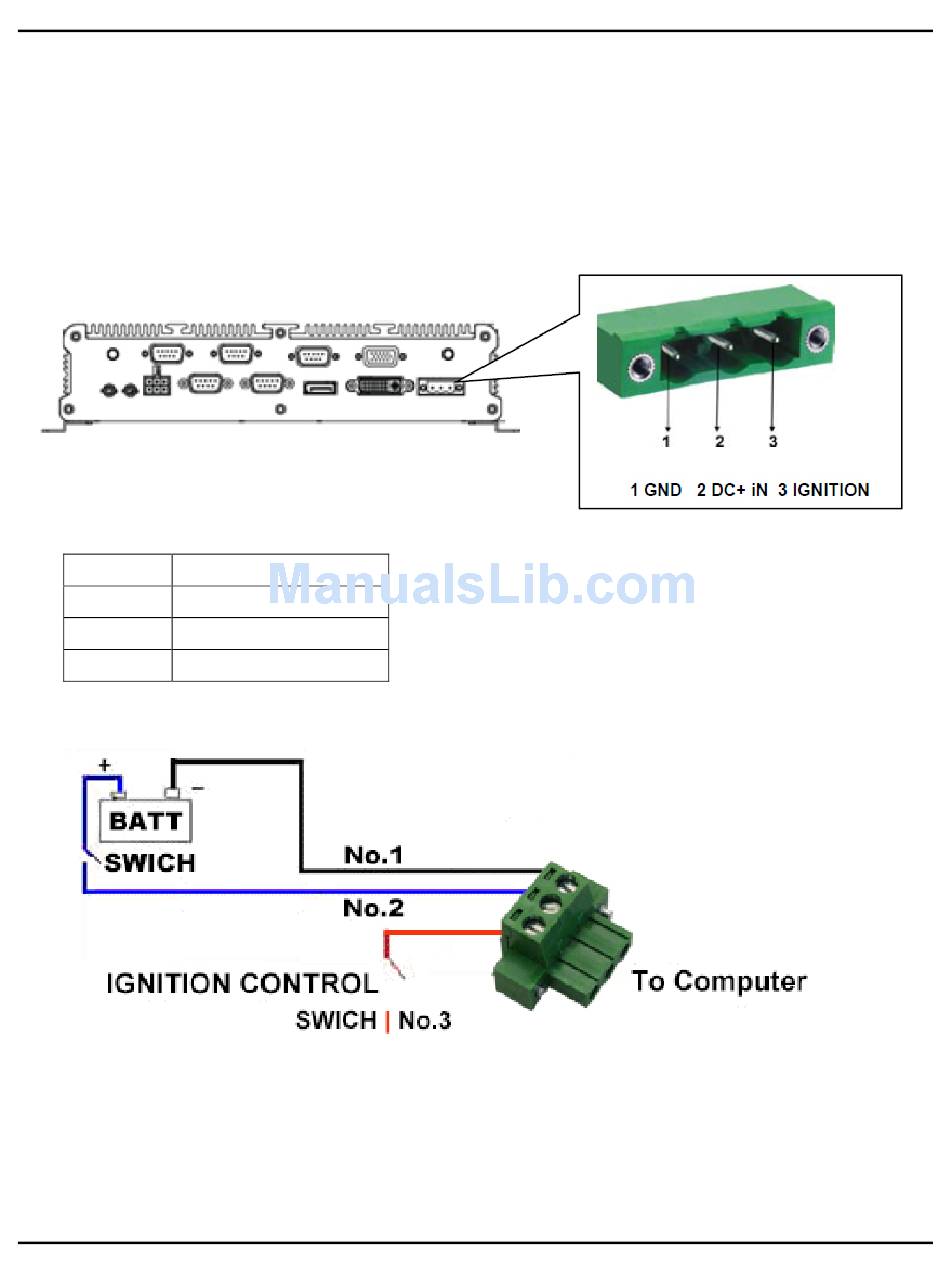

3.0 EXTERNAL CONNECTOR SPECIFICATION
3.1
Power Input Connector
A. Connector size: 1 X 3 = 3 Pin
B. Connector location: PWR2
C. Connector pin definition
Pin
1
GND
2
DC_IN
3
IGNITION
D. VBOX-3200's Power Wiring Diagram
User's Manual
Signal
3.0 External Connector Specification
Page 3-1
