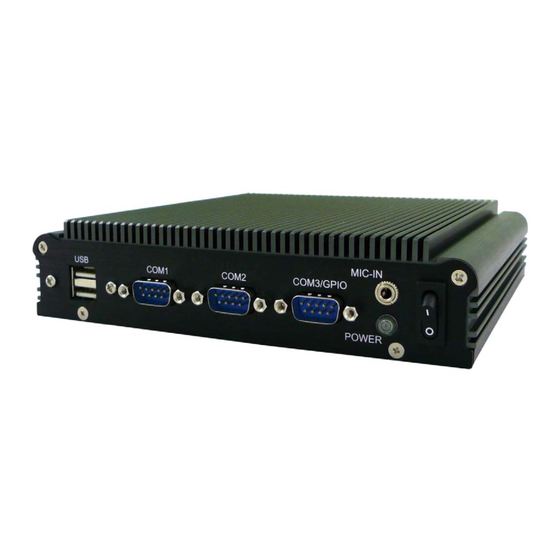

Sintrones SBOX-2600 User Manual

Fanless box computing
Hide thumbs
Table of Contents

Advertisement

Quick Links

SBOX-2600
Fanless Box Computing
User's Manual
Document Name
SBOX-2600 User Manual
Version
1.0
Reversion History :
Reversion
From
To
1.0
Jan. 23, 2015
Version 1.0
Date
Initial document issued
Document No.
Date
Notes
UM2015260010
Jan. 23, 2015
Author(s)
Stanley Chou

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBOX-2600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sintrones SBOX-2600

Summary of Contents for Sintrones SBOX-2600

  • Page 1 SBOX-2600 Fanless Box Computing User's Manual Version 1.0 Document Name SBOX-2600 User Manual Document No. UM2015260010 Version Date Jan. 23, 2015 Reversion History : Reversion Date Notes Author(s) From Jan. 23, 2015 Initial document issued Stanley Chou...
  • Page 2 Other  brands  and  product  names  used  herein are  for  identification  purposes  only  and  may be trademarks of their respective owners.  Disclaimer SINTRONES®  Technology  Corp.  shall  not  be  liable  for  any  incidental  or  consequential  damages resulting from the performance or use of this product.  SINTRONES®  Technology  Corp.  makes  no  representation  or  warranty  regarding  the  content  of  this  manual.  Information  in  this  manual  had  been  carefully  checked  for ...
  • Page 3 Safety Information Read the following precautions before setting up a SINTRONES Product.  Electrical safety  To prevent electrical shock hazard, disconnect the power cable from the electrical  outlet before relocating the system.   When  adding  or  removing  devices  to  or  from  the  system,  ensure  that  the  power  cables  for  the  devices  are  unplugged  before  the  signal  cables  are  connected.  If  possible,  disconnect  all  power  cables  from  the  existing  system  before  you  add  a ...
  • Page 4 CAUTION Incorrectly  replacing  the  battery  may  damage  this  computer.  Replace  only  with  the  same or its equivalent as recommended by SINTRONES® Technology Corp. Dispose used  battery according to the manufacturer's instructions.    Technical Support Please do not hesitate to call or e‐mail our customer service when you still cannot fix  the problems.  Tel : +886‐2‐82280101  Fax : +886‐2‐82280100  E‐mail : sales@sintrones.com  Website : www.sintrones.com  User’s Manual Page iii...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Page # Introduction ..........................1-1     Model Specification ......................1-1     SBOX‐2600 Illustration (MB, System) ................1-3     Architecture .......................... 1-5     Principal Component Specification .................. 1-5     Internal Connector Specification .................... 2-1     VGA Connector ........................2-1     USB Connector (USB2) ......................2-2  ...
  • Page 6 Audio Connector ........................3-6     System Installation ........................4-1     System Introduction ......................4-1     Opening Chassis ........................4-2     Installing Memory ........................ 4-4     Installing HDD / SSD ......................4-6     Installing MINI PCIe Expansion Card ................4-8     Installing MINI PCIe Expansion Card ................4-10     BIOS .............................

  • Page 7: Introduction

    1.0 Introduction 1.0 INTRODUCTION User’s Manual...

  • Page 8: Model Specification

    1.0 Introduction 1.0 INTRODUCTION 1.1 Model Specification System  CPU  Intel Gen4 Celeron 2980U/Core i3/i5/i7 CPU  Memory  1 x DDR3L‐1600 SO‐DIMM up to 8GB  Graphics  Intel HD Graphics  ATA  2 x Serial ATA ports with 6GB/s HDD Transfer Rate  LAN Chipset  2 x Intel i210‐AT Gigabit Ethernet  Watchdog  1 ~ 255 level reset  I/O  Serial Port  Support 2 x RS‐232 Ports (2 x RS232/422/485)  USB Port  2 x USB 2.0 Ports and 2 x USB 3.0  LAN  2 x RJ45 Ports for GbE  Video Port  1 x HDMI and DVI Output  GPIO Port  Support 4 In and 4 Out GPIO Ports (5V Level)  Audio  Line‐out/ Mic‐in  Expansion Bus  2 x Mini‐Card Slots  User’s Manual Page 1-1...
  • Page 9 1.0 Introduction Storage  1 x 2.5” drive bay for SATA Type Hard Disk Drive / SSD  Type  1 x SATA DOM  Environment  ‐30 ~ 60ºC, ambient w/ air  Operating Temp.  ‐40 ~ 85ºC  Storage Temp.  10 ~ 95% @ 40ºC (non‐condensing)  Relative Humidity  DC 12V Input  Power Input  Mechanical  Aluminum alloy  Construction  Wall‐mount, VESA‐mount, Din Rail Mounting Kit  Mounting  Weight  1200g (barebone)  182 x 167.6 x 40 mm  Dimensions  User’s Manual Page 1-2...

  • Page 10: Sbox-2600 Illustration (Mb, System)

    1.0 Introduction SBOX‐2600 Illustration (MB, System)   Main Board    User’s Manual Page 1-3...
  • Page 11 1.0 Introduction System        User’s Manual Page 1-4...

  • Page 12: Architecture

    1.0 Introduction 1.3 Architecture   1.4 Principal Component Specification CPU Chip  Description  Intel  1. Power Consumption:  Symbol  Processor  Core  Thermal  Unit Tj  Cache  Number  Frequency /  Design  min  GHz  Power  (°C)  TDP  2980U  1.6  15  W  100  2M  i3‐4010U  1.7  15  W  100  3M  i5‐4300U  1.9‐2.9 ...
  • Page 13 1.0 Introduction   User’s Manual Page 1-6...

  • Page 14: Internal Connector Specification

    2.0 Internal Connector Specification 2.0 INTERNAL CONNECTOR SPECIFICATION User’s Manual...

  • Page 15: Vga Connector

    2.0 Internal Connector Specification 2.0 INTERNAL CONNECTOR SPECIFICATION 2.1 VGA Connector Connector size 2 X 8 = 16 Pin Connector type JST-2.0mm-M-180 Connector location VGA1 Connector pin definition Signal Signal GREEN BLUE CER_DET DAC_SDA HSYNC VSYNC DAC_SCL Connector map User’s Manual Page 2-1...

  • Page 16: Usb Connector (Usb2)

    2.0 Internal Connector Specification 2.2 USB Connector (USB2) Connector size 2 X 4 = 8 Pin Connector type JST-2.0mm-M-180 Connector location USB2 Connector pin definition Signal Signal 5VSB 5VSB USB2_N USB3_N USB2_P USB3_P Connector map User’s Manual Page 2-2...

  • Page 17: Usb Connector (Usb3)

    2.0 Internal Connector Specification 2.3 USB Connector (USB3) Connector size 2 X 4 = 8 Pin Connector type JST-2.0mm-M-180 Connector location USB3 Connector pin definition Signal Signal 5VSB 5VSB USB4_N USB4_P Connector map User’s Manual Page 2-3...

  • Page 18: Gpio Connector

    2.0 Internal Connector Specification 2.4 GPIO Connector Connector size 2 X 5 = 10 Pin Connector type JST-2.0mm-M-180 Connector location GPIO1 Connector pin definition Signal Signal GPI0 GPO0 GPI1 GPO1 GPI2 GPO2 GPI3 GPO3 DB9 pin definition Signal GPIO GPI0 GPI1 GPI2 GPI3 GPO0...

  • Page 19: Uart And Gpio Connector

    2.0 Internal Connector Specification 2.5 UART and GPIO Connector Connector size 2 X 5 = 10 Pin Connector type JST-2.0mm-M-180 Connector location UART1 Connector pin definition Signal Signal GPIO0 GPIO6 GPIO5 GPIO4 GPIO3 GPIO1 GPIO2 Connector map User’s Manual Page 2-5...

  • Page 20: Led Connector

    2.0 Internal Connector Specification 2.6 LED Connector Connector size 2 X 5 = 10 Pin Connector type JST-2.0mm-M-180 Connector location LED1 Connector pin definition Signal Signal HDD_LED_N HDD_LED_P PWR_LED_N PWR_LED_P PWRBT# HW_RESET# SMB_CLK SMB_DATA Connector map User’s Manual Page 2-6...

  • Page 21: Com Connector (Com1)

    2.0 Internal Connector Specification 2.7 COM Connector (COM1) Connector size 2 X 5 = 10 Pin Connector type JST-2.0mm-M-180 Connector location COM1 Connector pin definition Signal Signal COM1_DCD COM1_RXD COM1_TXD COM1_DTR COM1_DSR COM1_RTS COM1_CTS COM1_RI DB9 pin definition Signal RS232 RS422 RS485 COM1_DCD TXD- TXD-/RXD-...

  • Page 22: Com Connector (Com2)

    2.0 Internal Connector Specification 2.8 COM Connector (COM2) Connector size 2 X 5 = 10 Pin Connector type JST-2.0mm-M-180 Connector location COM2 Connector pin definition Signal Signal COM2_DCD COM2_RXD COM2_TXD COM2_DTR COM2_DSR COM2_RTS COM2_CTS COM2_RI DB9 pin definition Signal RS232 RS422 RS485 COM2_DCD TXD- TXD-/RXD-...

  • Page 23: Com Connector (Com3)

    2.0 Internal Connector Specification 2.9 COM Connector (COM3) Connector size 2 X 5 = 10 Pin Connector type JST-2.0mm-M-180 Connector location COM3 Connector pin definition Signal Signal COM3_DCD COM3_RXD COM3_TXD COM3_DTR COM3_DSR COM3_RTS COM3_CTS COM3_RI DB9 pin definition Signal RS232 COM3_DCD COM3_RXD COM3_TXD COM3_DTR COM3_DSR...

  • Page 24: Com Connector (Com4)

    2.0 Internal Connector Specification 2.10 COM Connector (COM4) Connector size 2 X 5 = 10 Pin Connector type JST-2.0mm-M-180 Connector location COM3 Connector pin definition Signal Signal COM4_DCD COM4_RXD COM4_TXD COM4_DTR COM4_DSR COM4_RTS COM4_CTS COM4_RI DB9 pin definition Signal RS232 COM4_DCD COM4_RXD COM4_TXD COM4_DTR COM4_DSR...

  • Page 25: Audio Connector

    2.0 Internal Connector Specification 2.11 AUDIO Connector Connector size 1 X 10 = 10 Pin Connector type JST-2.0mm-M-180 Connector location AUDIO1 Connector pin definition Signal CEN_OUT_L CEN_OUT_L CEN-JD LINE_IN_L LINE_IN _R LINE-JD MIC_IN_ L MIC_IN_R MIC-JD Connector map   User’s Manual Page 2-11...

  • Page 26: Sata Connector (Sata1)

    2.0 Internal Connector Specification 2.12 SATA Connector (SATA1) Connector size 1 X 7 = 7 Pin Connector type SATA 1.27mm-M-180D Connector location SATA1 Connector pin definition Signal SATA_TXP0 SATA_TXN0 SATA_RXN0 SATA_RXP0 Connector map   User’s Manual Page 2-12...

  • Page 27: Sata Connector (Sata2)

    2.0 Internal Connector Specification 2.13 SATA Connector (SATA2) Connector size 1 X 7 = 7 Pin Connector type SATA 1.27mm-M-180D Connector location SATA2 Connector pin definition Signal SATA_TXP1 SATA_TXN1 SATA_RXN1 SATA_RXP1 Connector map User’s Manual Page 2-13...

  • Page 28: Mini Pci-E Connector (Minicard1)

    2.0 Internal Connector Specification 2.14 Mini PCI‐E Connector (MINICARD1) Connector size 2 X 26 = 52 Pin Connector type MINI PCI-E CON 9.2mmH Connector location MINICARD1 Connector pin definition Signal Signal PCIE_WAKE# 3VSB +1.5V MINICARD0_CLKREQ# PCIE_MCARD0_CLK_N PCIE_MCARD0_CLK_P MINICARD0_DIS# PCIE_RST# PCIE_MCARD0_RX_N 3VSB PCIE_MCARD0_RX_P +1.5V SMB_CLK PCIE_MCARD0_TX_N SMB_DATA...
  • Page 29 2.0 Internal Connector Specification Connector map                       User’s Manual Page 2-15...

  • Page 30: Mini Pci-E Connector (Minicard2)

    2.0 Internal Connector Specification 2.15 Mini PCI‐E Connector (MINICARD2) Connector size 2 X 26 = 52 Pin Connector type MINI PCI-E CON 9.2mmH Connector location MINICARD2 Connector pin definition Signal Signal PCIE_WAKE# 3VSB +1.5V MINICARD1_CLKREQ# PCIE_MCARD1_CLK_N PCIE_MCARD1_CLK_P MINICARD1_DIS# PCIE_RST# PCIE_MCARD1_RX_N 3VSB PCIE_MCARD1_RX_P +1.5V SMB_CLK PCIE_MCARD1_TX_N SMB_DATA...
  • Page 31 2.0 Internal Connector Specification Connector map                       User’s Manual Page 2-17...

  • Page 32: Power Input Connector

    2.0 Internal Connector Specification 2.16 Power Input Connector Connector size 1 X 4 = 4 Pin Connector type WAFER 2.54mm-M-180 Connector location PWRIN1 Connector pin definition Signal +12VSB +12VSB Connector map           User’s Manual Page 2-18...

  • Page 33: Sata Power Connector (Spwr1)

    2.0 Internal Connector Specification 2.17 SATA Power Connector (SPWR1) Connector size 1 X 4 = 4 Pin Connector type WAFER 2.54mm-M-180 Connector location SPWR1 Connector pin definition Signal +12V Connector map           User’s Manual Page 2-19...

  • Page 34: Sata Power Connector (Spwr2)

    2.0 Internal Connector Specification 2.18 SATA Power Connector (SPWR2) Connector size 1 X 3 = 3 Pin Connector type WAFER 2.54mm-M-180 Connector location SPWR2 Connector pin definition Signal +12V Connector map User’s Manual Page 2-20...

  • Page 35: External Connector Specification

    3.0 External Connector Specification 3.0 EXTERNAL CONNECTOR SPECIFICATION User’s Manual...

  • Page 36: Usb Connector

    4.0 System Installation 3.0 EXTERNAL CONNECTOR SPECIFICATION 3.1 USB Connector Connector size 18 Pin Connector type Type A Connector location USB1 Connector pin definition Signal Signal 5VSB USB0_N USB0_P SSRX0_N SSRX0_P SSTX0_N SSTX0_P 5VSB USB1_N USB1_P SSRX1_N SSRX1_P SSTX1_N SSTX1_P Connector map User’s Manual...

  • Page 37: Lan Connector (Lan1)

    4.0 System Installation 3.2 LAN Connector (LAN1) 5.2 LAN connector Connector size 12 Pin Connector type RJ45+LED Connector location LAN1 Connector pin definition Signal Signal LAN0_MDI0P LAN0_MDI0N LAN0_MDI1P LAN0_MDI2P LAN0_MDI2N LAN0_MDI1N LAN0_MDI3P LAN0_MDI3N LAN0_ACT# LAN0_ACTPW LAN0_LINK# LAN0_LINKPW Connector map User’s Manual...

  • Page 38: Lan Connector (Lan2)

    4.0 System Installation 3.3 LAN Connector (LAN2) Connector size 12 Pin Connector type RJ45+LED Connector location LAN2 Connector pin definition Signal Signal LAN1_MDI0P LAN1_MDI0N LAN1_MDI1P LAN1_MDI2P LAN1_MDI2N LAN1_MDI1N LAN1_MDI3P LAN1_MDI3N LAN1_ACT# LAN1_ACTPW LAN1_LINK# LAN1_LINKPW Connector map User’s Manual...

  • Page 39: Dvi-I Connector

    4.0 System Installation 3.4 DVI‐I Connector Connector size 30 Pin Connector type DVI-I Connector location DVI-I1 Connector pin definition Signal Signal DVI_TX2_N DVI_TX2_P 5VSB +12V DVI_DDC_CLK DVI_DDC_DATA CRT_VSYNC DVI_TX1_N DVI_TX1_P USB_7N USB_7P +5V_DVI_PWR DVI_HPD DVI_TX0_N DVI_TX0_P CRT_DAC_SDA CRT_DAC_SCL DVI_CLK_P DVI_CLK_N CRT_RED CRT_GREEN CRT_BLUE CRT_HSYNC...

  • Page 40: Hdmi Connector

    4.0 System Installation 3.5 HDMI Connector Connector size 19 Pin Connector type HDMI Connector location HDMI1 Connector pin definition Signal Signal HDMI_DATA2_P HDMI_DATA2_N HDMI_DATA1_P HDMI_DATA1_N HDMI_DATA0_P HDMI_DATA0_N HDMI_CLK_P HDMI_CLK_N HDMI_SCL HDMI_DATA HDMI_HPD Connector map User’s Manual...

  • Page 41: Audio Connector

    4.0 System Installation 3.6 Audio Connector Connector size 6Pin Connector type PHONE JACK Connector location LOUT1 Connector pin definition Signal Signal FRONT_OUT_R FRONT-JD FRONT_OUT_L Connector map User’s Manual...

  • Page 42: System Installation

    4.0 System Installation 4.0 SYSTEM INSTALLATION User’s Manual...

  • Page 43: System Introduction

    4.0 System Installation 4.0 SYSTEM INSTALLATION 4.1 System Introduction                 User’s Manual Page 4-1...

  • Page 44: Opening Chassis

    4.0 System Installation 4.2 Opening Chassis Step1. Unscrew the four screws of the Mounting Bracket as shown in the picture.        Step2. Unscrew the four screws of the Back Cover and the four screws of Rear/Front  Panel as shown in the picture.      User’s Manual Page 4-2...
  • Page 45 4.0 System Installation Step3. Open the Back Cover as shown in the picture.                                        User’s Manual Page 4-3...

  • Page 46: Installing Memory

    4.0 System Installation 4.3 Installing Memory Step 1. Put Memory on this place as shown in the picture.    Step 2. Hold the Memory with its notch aligned with the Memory socket of the board  and insert it at a 30‐degreeangle into the socket as shown in the picture.    User’s Manual Page 4-4...
  • Page 47 4.0 System Installation Step 3. Fully insert the module into the socket until a “click” is heard as shown in the  picture.  Step 4. Press down on the Memory so that the tabs of the socket lock on both sides of  the module.  User’s Manual Page 4-5...

  • Page 48: Installing Hdd / Ssd

    4.0 System Installation 4.4 Installing HDD / SSD Step 1. Put the HDD on the Back Cover as shown in the picture.  Step 2. Turn over the Back Cover and screw the four screws of the Back Cover as shown  in the picture.    User’s Manual Page 4-6...
  • Page 49 4.0 System Installation Step 3. Connect the HDD/SSD power cable and SATA cable to HDD/SSD as shown in the  picture.  User’s Manual Page 4-7...

  • Page 50: Installing Mini Pcie Expansion Card

    4.0 System Installation 4.5 Installing MINI PCIe Expansion Card Step 1. Put MINI PCIe Expansion Card on this place as shown in the picture.        Step 2. Hold the Module with its notch aligned with the socket of the board and insert it  at a 30 degree angle into the socket as shown in the picture.        User’s Manual Page 4-8...
  • Page 51 4.0 System Installation Step 3. Screw two screws to the holder as shown in the picture.        Step 4. Done as shown in the picture.        User’s Manual Page 4-9...

  • Page 52: Installing Mini Pcie Expansion Card

    4.0 System Installation 4.6 Installing MINI PCIe Expansion Card Step 1. Put MINI PCIe Expansion Card on this place as shown in the picture.    Step 2. Hold the Module with its notch aligned with the socket of the board and insert it  at a 30 degree angle into the socket as shown in the picture.        User’s Manual Page 4-10...
  • Page 53 4.0 System Installation Step 3. Screw two screws to the holder as shown in the picture.        Step 4. Done as shown in the picture.    User’s Manual Page 4-11...

  • Page 54: Bios

    5.0 BIOS   5.0 BIOS User’s Manual...

  • Page 55: Enter The Bios

    6.0 Packing List 5.0 BIOS 5.1 Enter The BIOS Power on the computer and the system will start POST (Power On Self Test) process.  When the message below appears on the screen, press (DEL) key to enter Setup.    Press DEL to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart  the system by turning it OFF and On or pressing the RESET button. You may also restart  the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.    Important   The items under each BIOS category described in this chapter are under continuous  update  for  better  system  performance.  Therefore,  the  description  may  be  slightly  different from the latest BIOS and should be held for reference only.   Upon boot‐up, the 1st line appearing after the memory count is the BIOS version. It  is usually in the format.    SBOX‐2620 Mainboard V1.0 073109 where : 1st digit refers to BIOS maker as A = AMI, W = AWARD, and P = PHOENIX  2nd ‐ 5th digit refers to the model number.  6th digit refers to the chipset as I = Intel, N = NVIDIA, A = AMD and V = VIA.  7th ‐ 8th digit refers to the customer as MS = all standard customers.  V1.0 refers to the BIOS was released.  073109 refers to the date this BIOS was released. ...
  • Page 56 6.0 Packing List Control Keys Power on the computer and the system will start POST (Power On Self Test) process.  When the message below appears on the screen, press (DEL) key to enter Setup.    <↑>  Move to the previous item  <↓>  Move to the next item  <←>  Move to the item in the left hand  <→>  Move to the item in the right hand <Enter>  Select the item  <Esc>  Jumps to the Exit menu or returns to the main menu from a submenu  <+/PU>  Increase the numeric value or make changes <‐/PD>  Decrease the numeric value or make changes  <F1>  General Help  <F3>  Load Optimized Defaults  <F4>  Save all the CMOS changes and exit    Getting Help After entering the Setup menu, the first menu you will see is the Main Menu.    Main Menu  The  main  menu  lists  the  setup  functions  you  can  make  changes  to.  You  can  use  the  arrow ...

  • Page 57: Main

    6.0 Packing List 5.2 Main » System Date  This setting allows you to set the system Date. The time format is <Day> <Month>  <Date> <Year>.    » System Time  This setting allows you to set the system time. The time format is <Hour> <Minute>  <Second>.                        User’s Manual...

  • Page 58: Advanced

    6.0 Packing List 5.3 Advanced     CPU Configuration   User’s Manual...
  • Page 59 6.0 Packing List » Limit CPUID Maximum  The CPUID instruction of some newer CPUs will return a value greater than 3. The  default  is  Disabled  because  this  problem  does  not  exist  in  the  Windows  series  operating systems. If you are using an operating system other than Windows, this  problem  may  occur.  To  avoid  this  problem,  enable  this  field  to  limit  the  return  value to 3 or less than 3.    » Intel Virtualization Technology  When  this  field  is  set  to  Enabled,  the  VMM  can  utilize  the  additional  hardware  capabilities provided by Vanderpool Technology. ...
  • Page 60 6.0 Packing List » COM1 RS232/422/485 Select            User’s Manual...
  • Page 61 6.0 Packing List » COM2 RS232/422/485 Select            User’s Manual...
  • Page 62 6.0 Packing List » Watch Dog Function        » GPIO Configuration      User’s Manual...
  • Page 63 6.0 Packing List » GPO 0/ 1/ 2/ 3/ Data  These settings configure special GPIO data.      Hardware Health Configuration These items display the current status of all monitored hardware devices/components  such as voltages, temperatures and all fans' speeds.                                User’s Manual...

  • Page 64: Chipset

    6.0 Packing List 5.4 Chipset PCH‐IO Configuration User’s Manual...
  • Page 65 6.0 Packing List System Agent (SA) Configuration   » Graphics Configuration    User’s Manual...
  • Page 66 6.0 Packing List User’s Manual...

  • Page 67: Boot

    6.0 Packing List 5.5 Boot » 1st/2nd/3rd Boot Device  The items allow you to set the sequence of boot devices where BIOS attempts to  load the disk operating system.    » Try Other Boot Devices  Setting the option to [Enabled] allows the system to try to boot from other device if  the system fail to boot from the 1st/2nd/3rd boot device.  User’s Manual...
  • Page 68 6.0 Packing List     » Hard Disk Drives, CD/DVD Drives, USB Drives  These settings allow you to set the boot sequence of the specified devices.                                    User’s Manual...

  • Page 69: Security

    6.0 Packing List 5.6 Security   » Administrator Password  Administrator Password controls access to the BIOS Setup utility. These settings allow  you to set or change the administrator password.    » User Password  User Password controls access to the system at boot. These settings allow you to set or  change the user password.    » Boot Sector Virus Protection  This function protects the BIOS from accidental corruption by unauthorized users or  computer viruses. When enabled, the BIOS data cannot be changed when attempting to  update the BIOS with a Flash utility. To successfully update the BIOS, you will need to  disable this Flash Protection function.        User’s Manual...

  • Page 70: Exit

    6.0 Packing List 5.7 Exit       » Save Changes and Exit  Save changes to CMOS and exit the Setup Utility.    » Discard Changes and Exit  Abandon all changes and exit the Setup Utility.    » Discard Changes  Abandon all changes and continue with the Setup Utility.    » Load Optimal Defaults  Use this menu to load the default values set by the mainboard manufacturer specifically  for optimal performance of the mainboard.    » Load Failsafe Defaults  Use  this  menu  to  load  the  default  values  set  by  the  BIOS  vendor  for  stable  system  performance. User’s Manual...

  • Page 71: Packing List

    6.0 Packing List 6.0 PACKING LIST User’s Manual...

  • Page 72: Packing List

    6.0 Packing List 6.0 PACKING LIST 6.1 Packing List System Item  Part Number  Module Name  1  762600011000 SBOX‐2600‐C1 System  2  762600011001 SBOX‐2600‐i3 System  3  762600011002 SBOX‐2600‐i5 System  4  762600011003 SBOX‐2600‐i7 System    Accessory Picture  Part Number Module Name Q’ty 548201206001  Power Adapter 12V/5A 60W Jack  1    370821201003  SBOX‐2120 Mount Bracket  2    351103040250  Screw F Type M3*4L ISO BK  8   ...
