4.0 System Installation

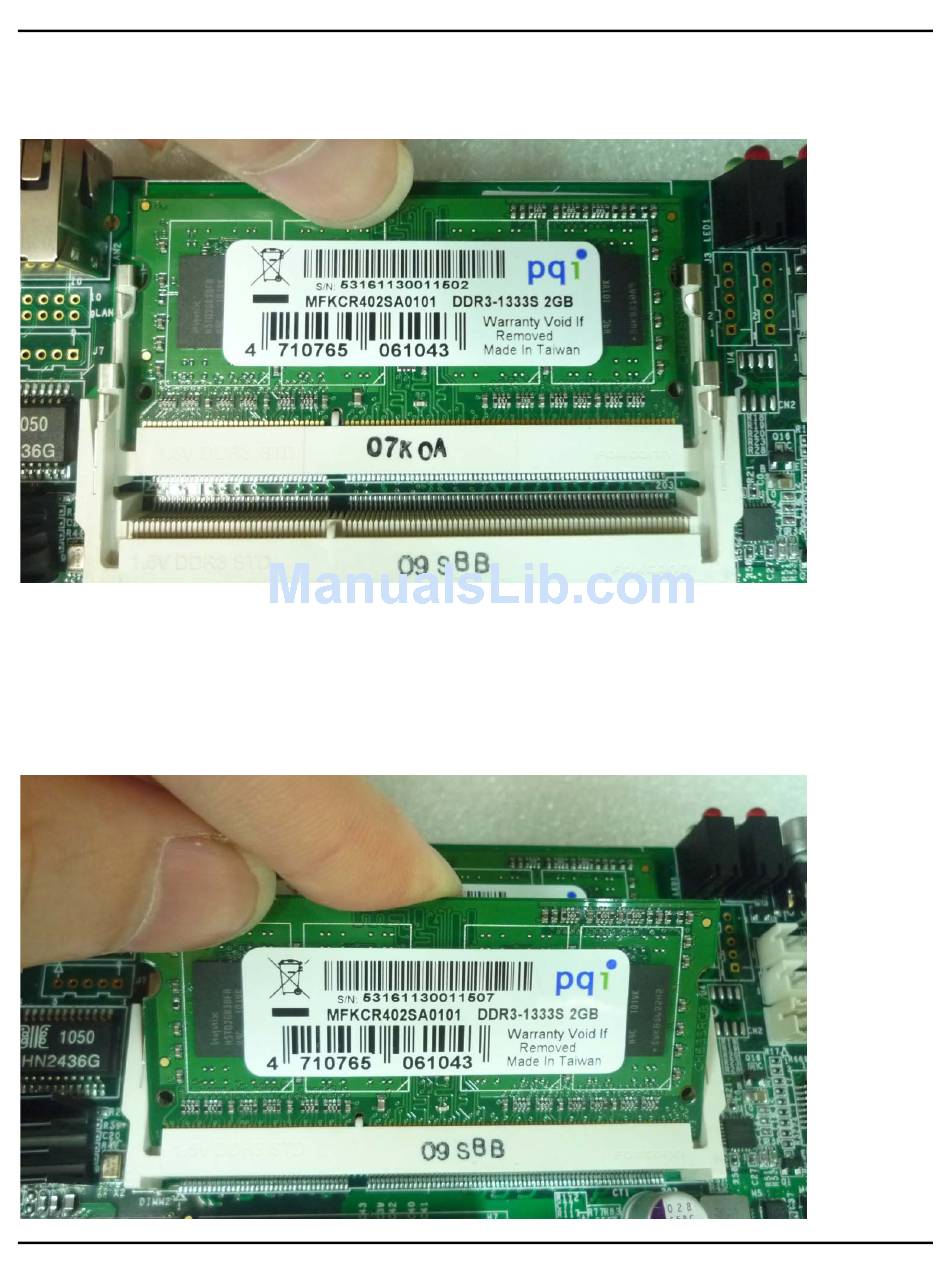

Step 3. Fully insert the module into the socket until a "click" is heard as shown in the
picture.
Step 4. Press down on the Memory so that the tabs of the socket lock on both sides of
the module.
Step 5. Hold the Memory with its notch aligned with the Memory socket of the board
and insert it at a 30-degreeangle into the socket as shown in the picture.
User's Manual
Page 4-7
