It is highly recommended that all interconnected communication
devices are plugged to THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower
than 10ohms).
•
Whether the workplace is provided with an uninterrupted power
supply system (UPS), regulated supply or it is independent from the
rest (such as lighting, etc.); it is highly recommended that all data
devices should be connected to the same power source. This will
avoid operating and premature aging problems of drivers and other
components.

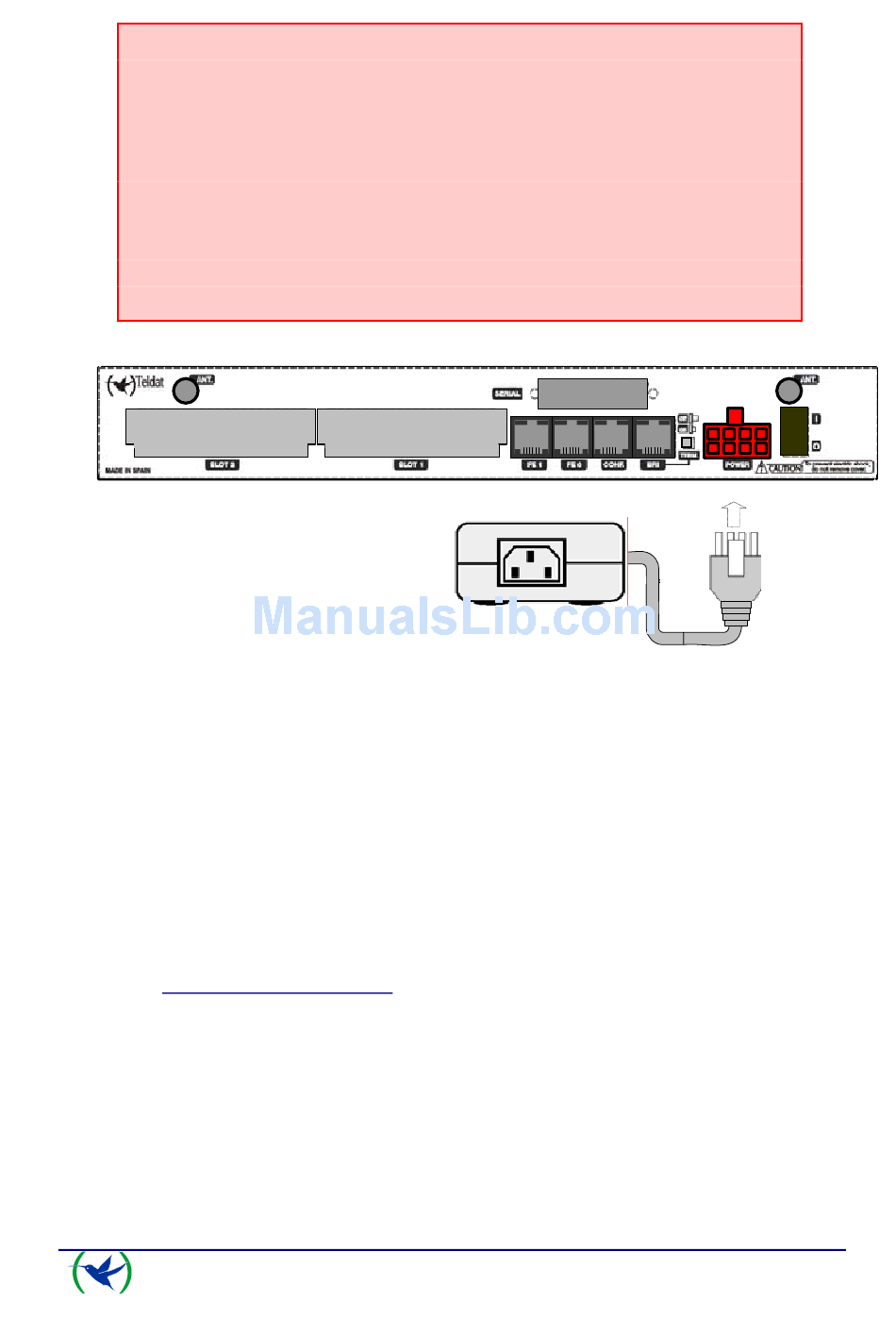

To connect the power source to the device, follow the steps listed in the earlier
table: ensure that the switch is OFF (0) and the power supply is NOT connected
to the main electricity supply; find the POWER plug, located on the rear panel of
the device and plug it into the power source: both the connector and the receptacle
are designed so it is only possible to insert it in the correct position.
For subsequent connection of the power source to the main electricity supply, use
the grounded cable provided for this purpose.

I - 2.2. Data Connection

The ATLAS 150
connectors may not be available depending on the model:
Power supply connection with external source
router has the following connectors available. Some of these
