configure this, you must connect the "CONF." port to an asynchronous terminal
(or to a PC with terminal emulation).
Configuration for the terminal must be:
- Speed: 9600 bps
- Eight data bits
- One stop bit
- No parity bit
- No type of flow control
Connection to the configuration port can be carried out using the RJ45 connectors
cable, provided with the device, together with the RJ45 Female-DB9 Female
adaptor also provided with the device.

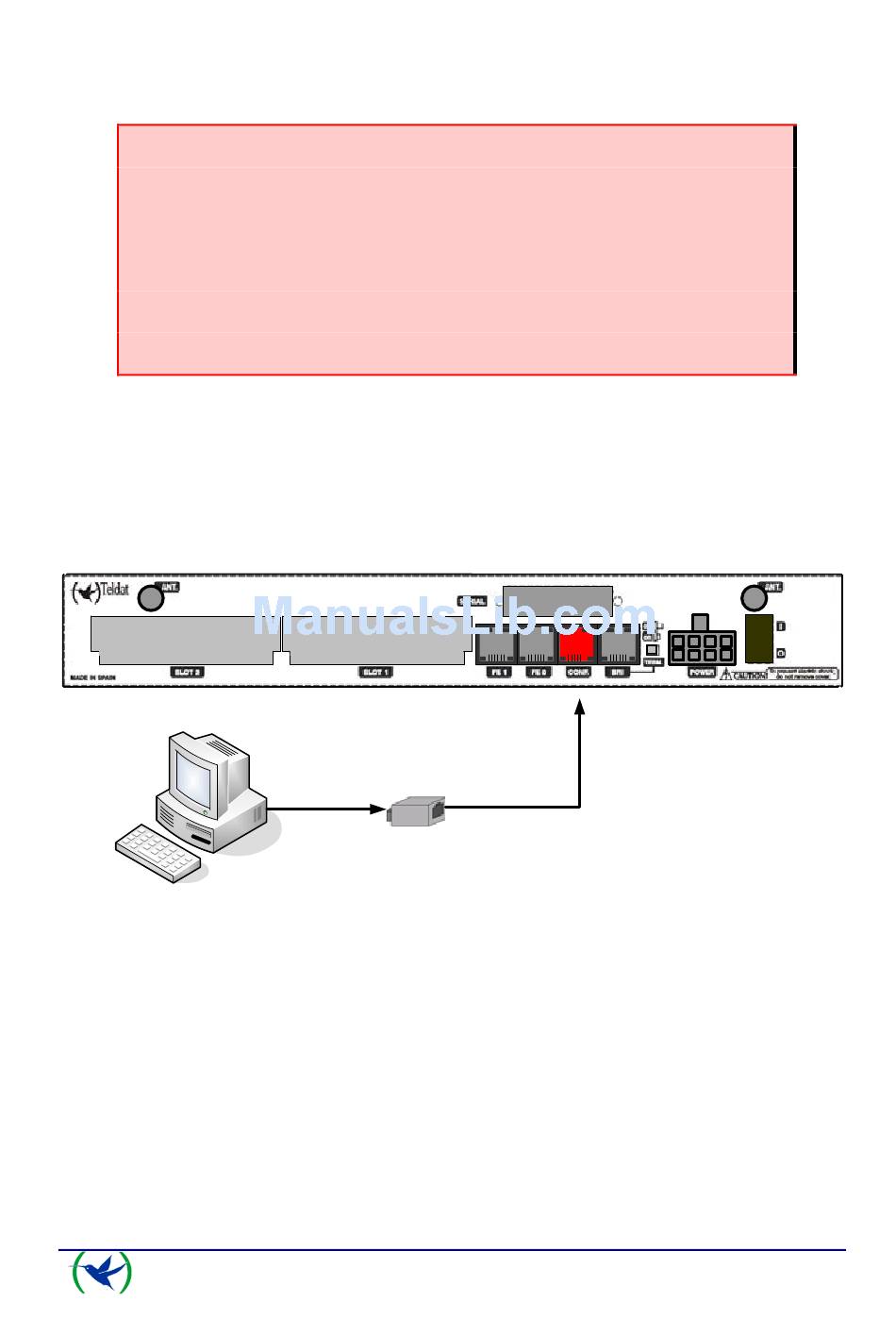

Connecting for configuration
ATLAS 150
Installation
I-8
Doc. Dm697-I
Rev. 1.0
