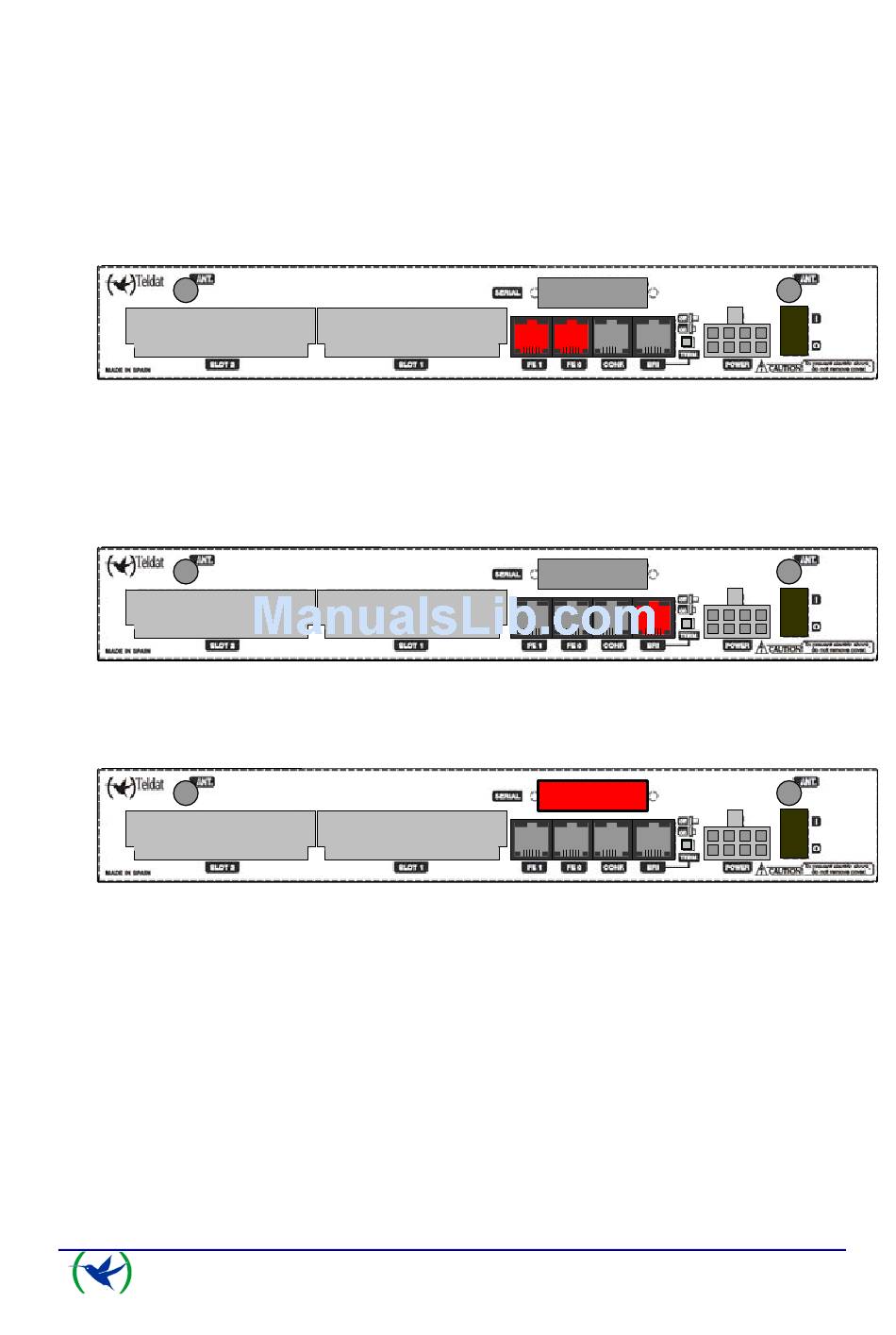

FE 0, FE 1:
The
ATLAS 150
has two female RJ45 connectors in order to connect to the
Ethernet 10BaseT / 100BaseT networks through shielded twisted pairs (STP) or
unshielded (UTP) cables.
Depending on the design of the network, the connection is carried out through a
HUB or directly to another terminal device Ethernet interface through a crossover
cable (please consult your supplier for information on crossover Ethernet cables).
The second LAN (FE 1) requires a software license in order to operate.
BRI:
ISDN 2B-D basic interface; this has an activation mechanism, through 2 jumpers,
for the S bus terminal load.
This requires a software license in order to operate.
SERIAL:
Serial interface in order to connect to a WAN or an external modem.
ANT.:
RF antenna connectors.
So that the Wireless LAN interface is operative, the device must have a plug-in
Wireless LAN card and the corresponding software license. Depending on the
model, the antennas are installed in the device at the factory. If your device does
not have the Wireless LAN module incorporated, you can obtain this later on.
The manual accompanying this module will indicate how to install it and the
corresponding antenna cables in the device.
ATLAS 150
Doc. Dm697-I
Rev. 1.0
Installation
I-5
