I - 2.2.2. WAN or external MODEM connection

The DTE/DCE multistandard serial interfaces have a DB25 female connector in
order to connect to an external modem or for connection to X.25, Frame Relay
networks, etc.
Depending on the type of connection established, a different type of cable will be
needed. This cable can be supplied by Teldat if you wish.
On the inside of the device, there is a slot to insert the driver which could be V.24
DTE/DCE, V.35 DTE/DCE and X.21 DTE/DCE. These drivers are not multi-
purpose. The configuration for the operation mode is carried out by inverting the
position of the driver (this appears labeled as "T" indicating that this acts as
terminal, and "M" indicating modem functions). The operation mode is that
indicated by the label closest to the connector.
The default configuration for the drivers (on leaving the factory) is
indicated on a label located on the underside of the device.

I - 2.2.3. Connecting the antenna

The ATLAS 150
which improves the quality of the signal received and transmitted through the
Wireless LAN module. This module is optional; it is possible that your device
does not have Wireless LAN and consequently no antennas. To assemble and
disassemble the antennas, simply screw them into the connectors labeled as ANT
located on the rear of the device.

I - 2.2.4. Connecting for configuration

The ATLAS 150
to as "CONF." which provides access to the device's local console. In order to
hecho por M.A. Berrojo
Teldat

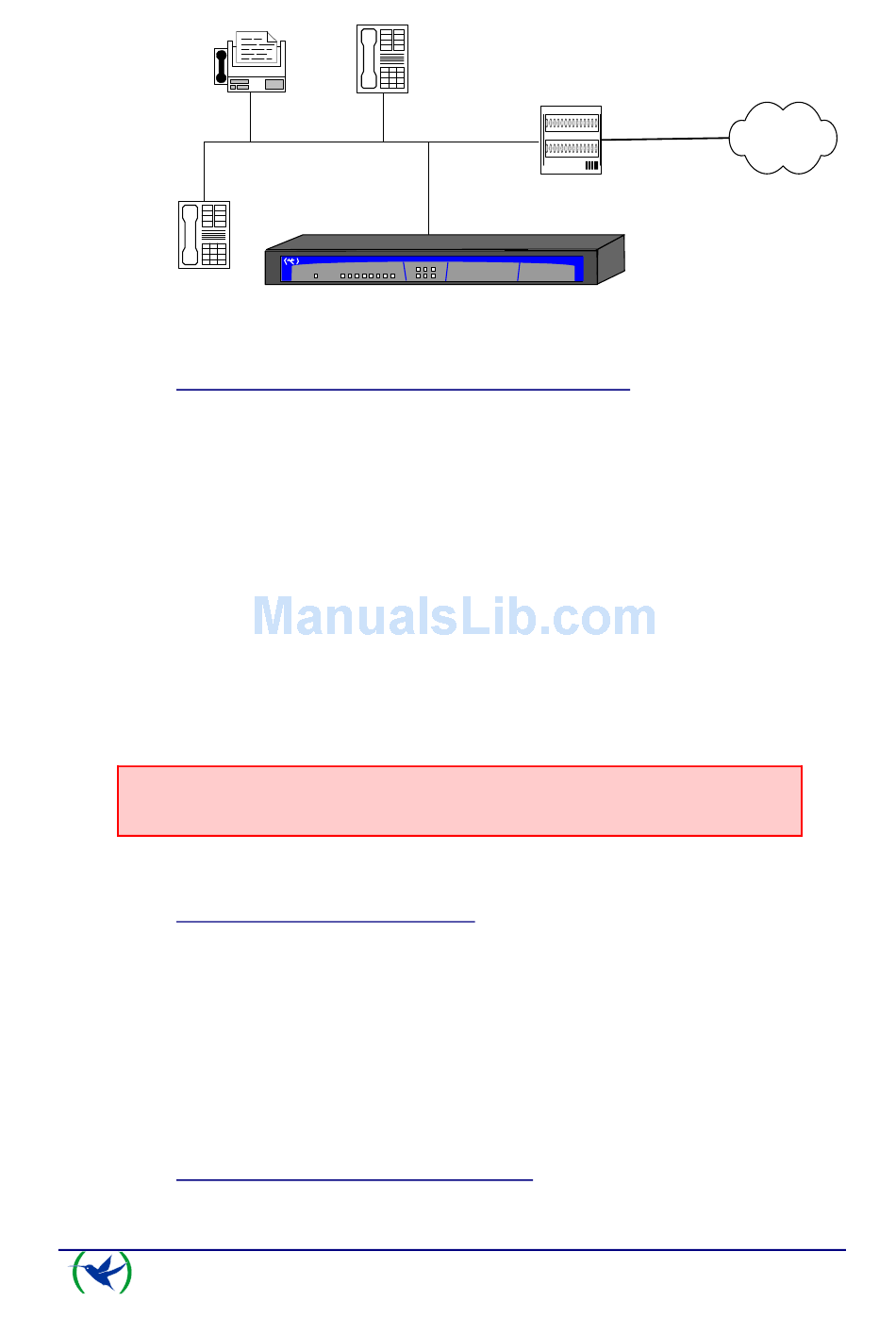

Location in an intermediate position in the bus
