2.2 VoIP Indoor Intercom with Keypad Setup

2.2.1 Connections

Figure 2-1
16 AWG gauge wire.
Note
Alternate Power Input:
1 = +12 to +24 VDC at 1000mA (500mA minimum)
2 = Power Ground
3 4
Relay Contact:
(1A at 30 VDC for continuous loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
Operations Guide
shows the pin connections on J3 (terminal block). This terminal block can accept
As an alternative to using PoE power, you can supply +12 to +24 VDC at 1000 ma (500 mA
minimum) into the terminal block.

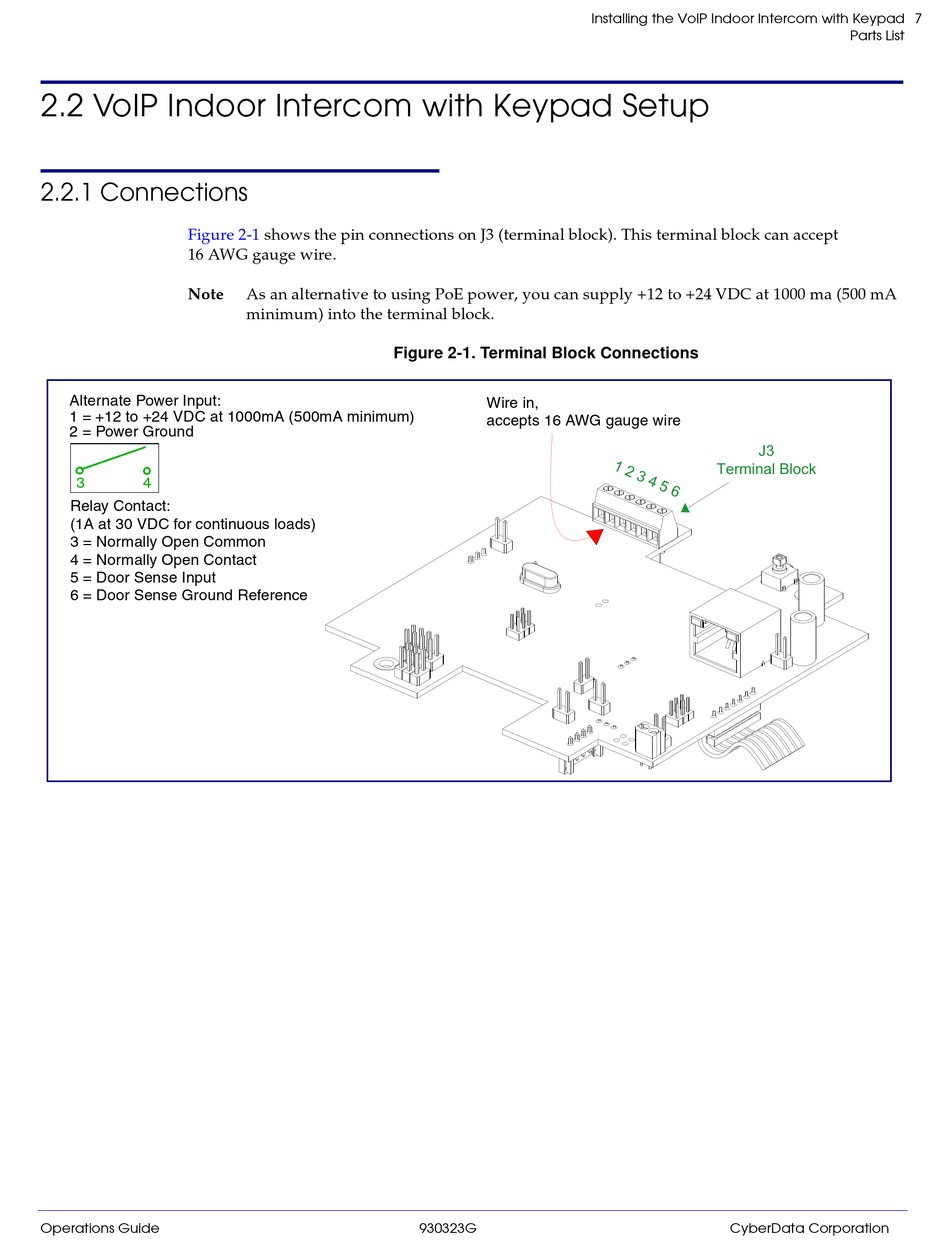

Figure 2-1. Terminal Block Connections
930323G
Installing the VoIP Indoor Intercom with Keypad
Wire in,
Wire in,
accept wire range
up to 16 AWG
accepts 16 AWG gauge wire
Parts List
J3
Altern
Terminal Block
1 = +
2 = P
3
Relay
(2A a
for c
3 = N
4 = N
5 = D
6 = D
