2.3.5.1 Point-to-Point Configuration

When the board is set to not register with a SIP server, it's possible to set the device to dial out to a

single endpoint. To do this, do the following:

1. On the SIP Configuration page

parameter is not selected.

2. On the Button Configuration page

remote device that you want to contact into a Keypad or Call Button field (in either Speed Dial

Mode or Security Dial Mode).

Note

Operations Guide

There is no way to place a point-to-point call in Telephone Dial Mode or Cellphone Dial

Mode. The Intercom can receive point-to-point calls in any mode.

The delayed DTMF functionality is available in the Point-to-Point Mode.

Establishing point-to-point SiP calls may not work with all phones.

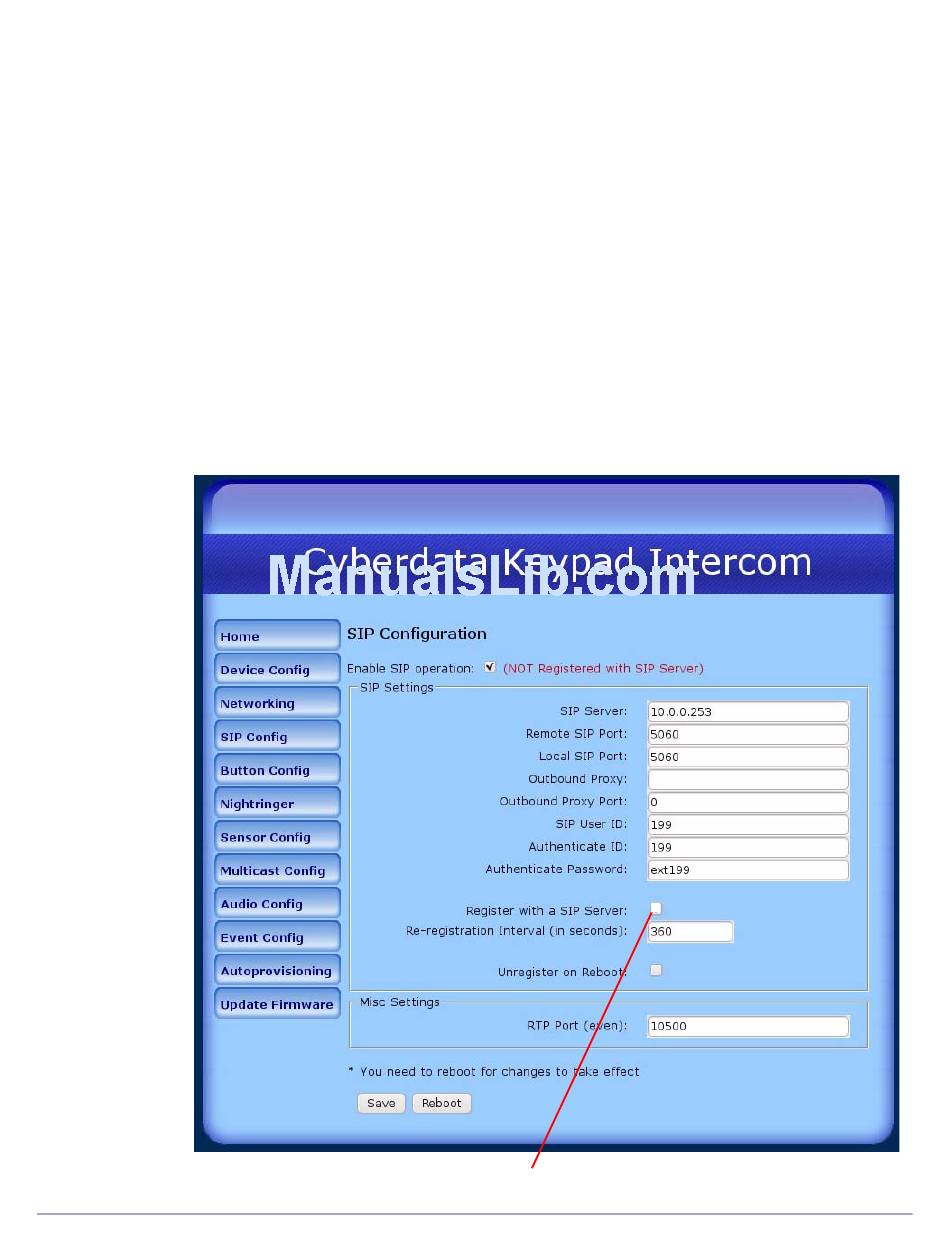

Figure 2-17. SIP Configuration Page Set to Point-to-Point Mode

Intercom is set to NOT register with a SiP server

930323A

Installing the VoIP Indoor Intercom with Keypad

(Figure

2-17), make sure that the Register with a SIP Server

(Figure 2-18

and

Figure

2-19), type the IP address of the

CyberData Corporation
