1.2

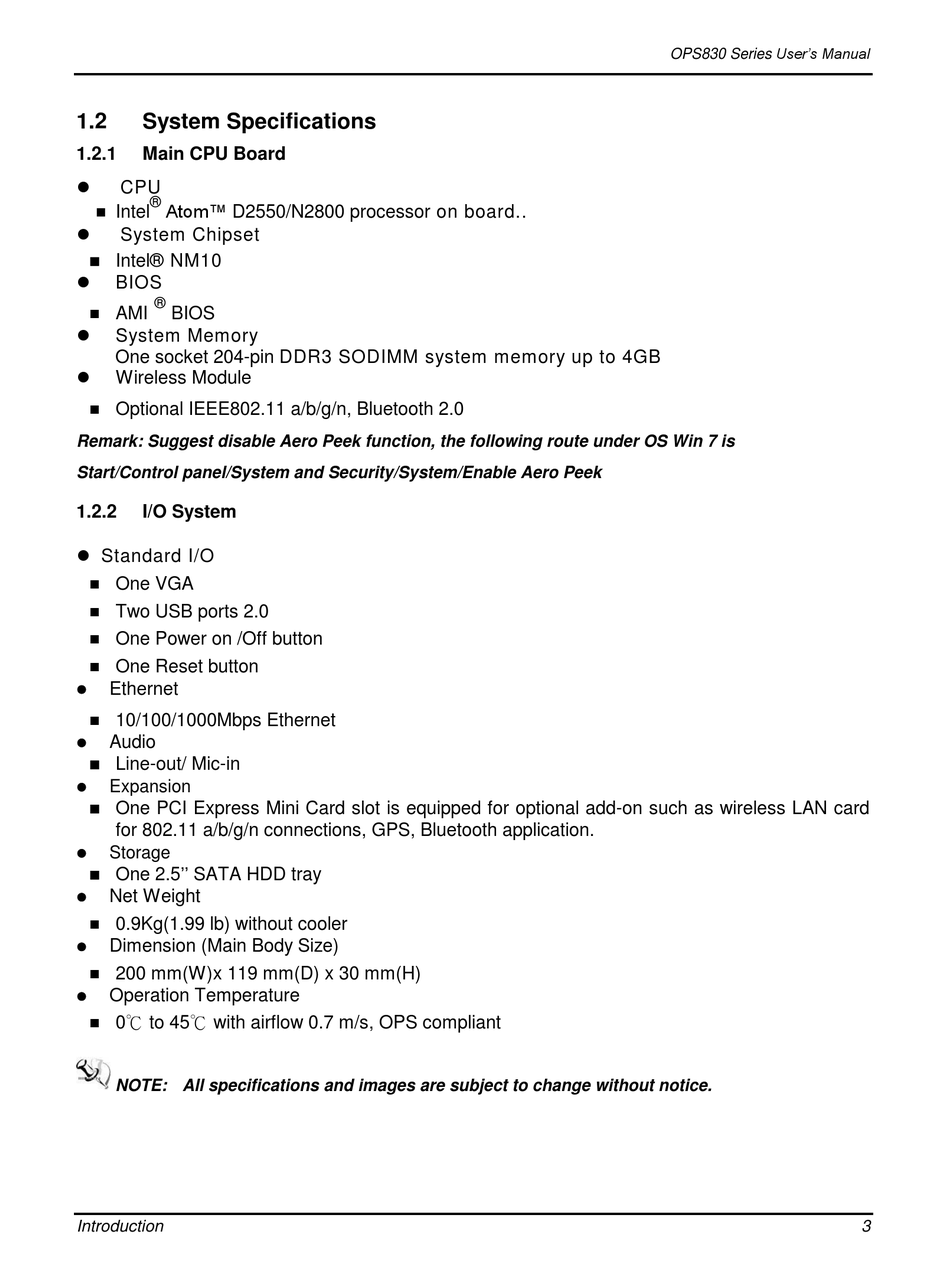

System Specifications

1.2.1

Main CPU Board


CPU
®
Atom™ D2550/N2800 processor on board..
 Intel

System Chipset
 Intel® NM10

BIOS
®
 AMI BIOS

System Memory
One socket 204-pin DDR3 SODIMM system memory up to 4GB

Wireless Module
 Optional IEEE802.11 a/b/g/n, Bluetooth 2.0
Remark: Suggest disable Aero Peek function, the following route under OS Win 7 is
Start/Control panel/System and Security/System/Enable Aero Peek
1.2.2

I/O System

 Standard I/O
 One VGA
 Two USB ports 2.0
 One Power on /Off button

One Reset button
 Ethernet
 10/100/1000Mbps Ethernet
 Audio

Line-out/ Mic-in

Expansion
 One PCI Express Mini Card slot is equipped for optional add-on such as wireless LAN card
for 802.11 a/b/g/n connections, GPS, Bluetooth application.

Storage
 One 2.5'' SATA HDD tray
 Net Weight
 0.9Kg(1.99 lb) without cooler

Dimension (Main Body Size)
 200 mm(W)x 119 mm(D) x 30 mm(H)
 Operation Temperature
 0℃ to 45℃ with airflow 0.7 m/s, OPS compliant
NOTE: All specifications and images are subject to change without notice.
