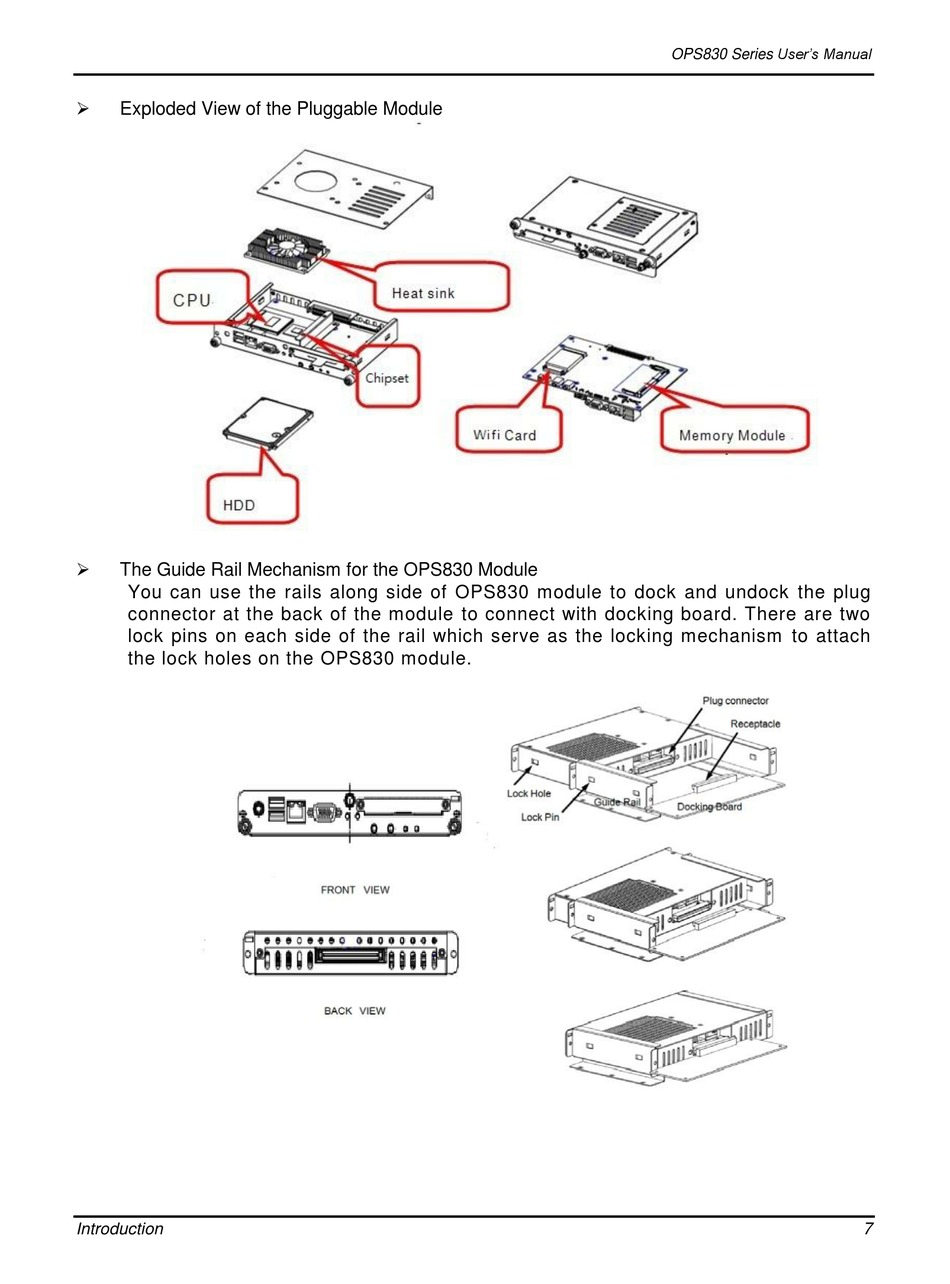

Exploded View of the Pluggable Module
The Guide Rail Mechanism for the OPS830 Module
You can use the rails along side of OPS830 module to dock and undock the plug
connector at the back of the module to connect with docking board. There are two
lock pins on each side of the rail which serve as the locking mechanism to attach
the lock holes on the OPS830 module.
Introduction
OPS830 Series User's Manual
