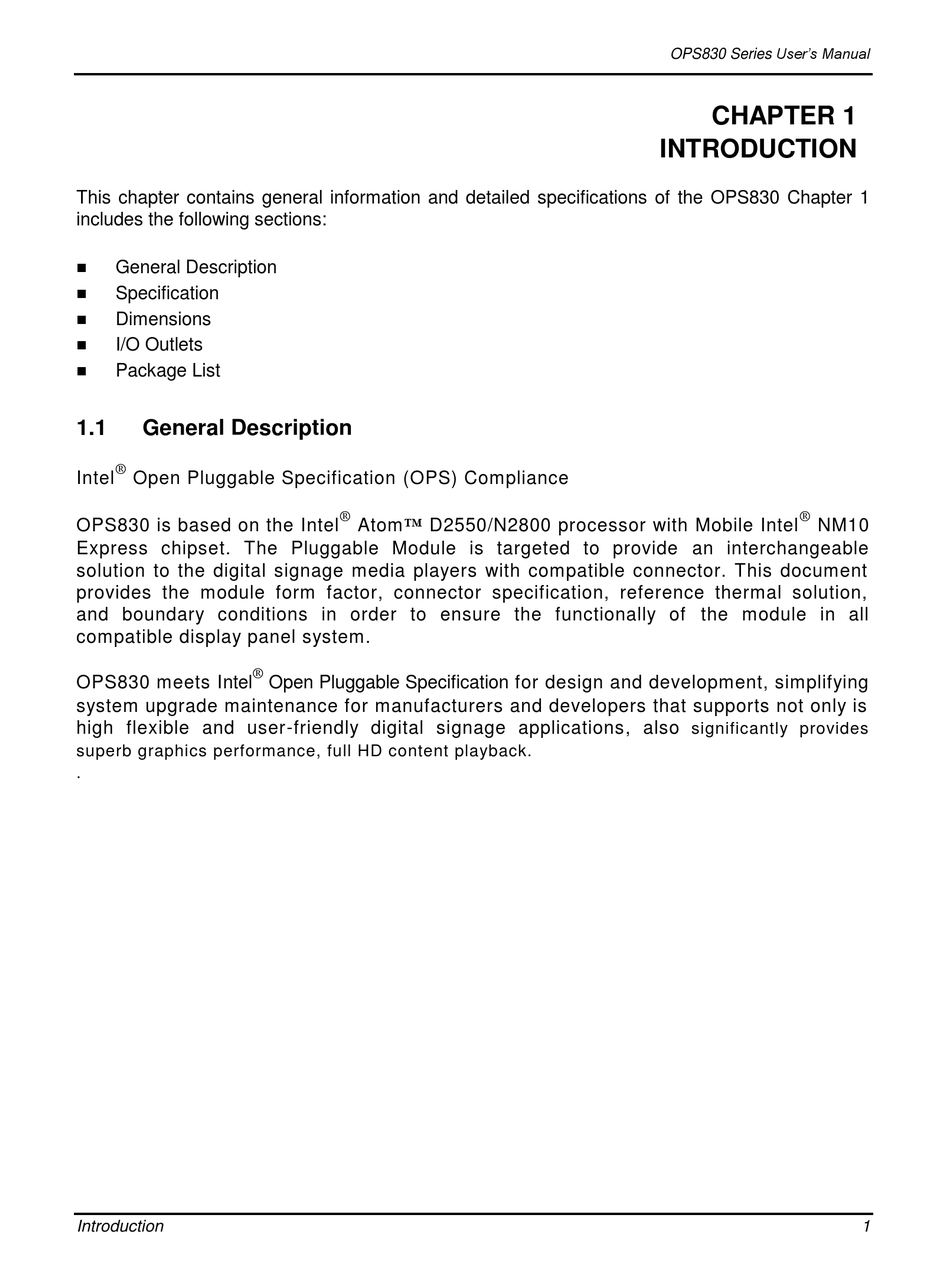

This chapter contains general information and detailed specifications of the OPS830 Chapter 1
includes the following sections:


General Description

 Specification
 Dimensions
 I/O Outlets
 Package List
1.1 General Description
®
Intel Open Pluggable Specification (OPS) Compliance
OPS830 is based on the Intel
Express chipset. The Pluggable Module is targeted to provide an interchangeable
solution to the digital signage media players with compatible connector. This document
provides the module form factor, connector specification, reference thermal solution,
and boundary conditions in order to ensure the functionally of the module in all
compatible display panel system.
®
OPS830 meets Intel
system upgrade maintenance for manufacturers and developers that supports not only is
high flexible and user-friendly digital signage applications, also
superb graphics performance, full HD content playback.
.
Introduction
®
Atom™ D2550/N2800 processor with Mobile Intel
Open Pluggable Specification for design and development, simplifying
OPS830 Series User's Manual
CHAPTER 1
INTRODUCTION
®
NM10
significantly provides
