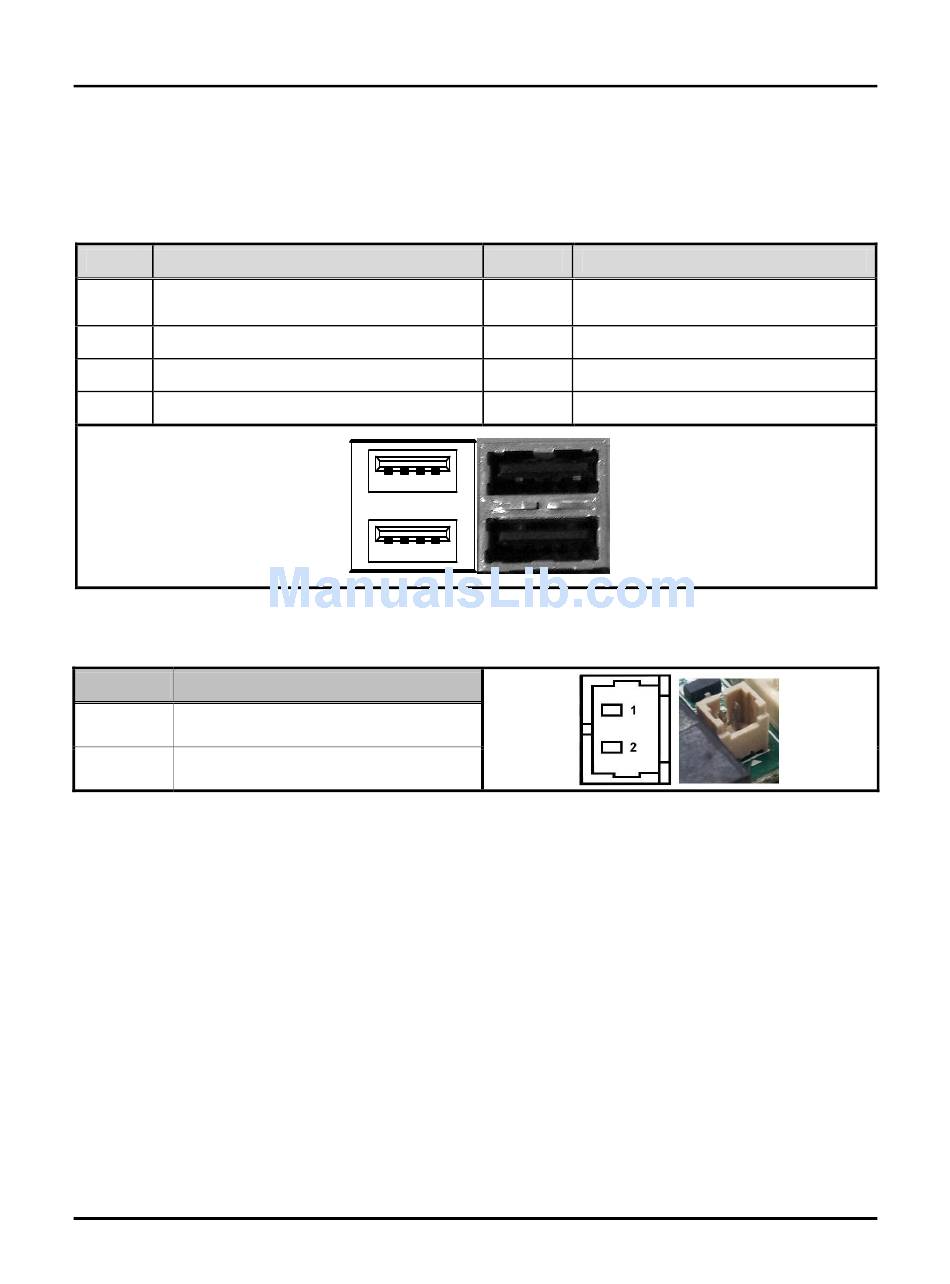

USB Connector (USB1)

The board features Universal Serial Bus (USB) connector s, compliant with USB 2.0
(480Mbps) that can be adapted to any USB peripherals, such as monitor, keyboard and
mouse. This USB1 connector carries USB port 0 and 1
Pin
1
(+5V standby power)
2
3
4
3.1.7

CMOS battery (BAT1)

Pin
1
2
32
USB Port 0
USB VCC
USB #0_D-
USB #0_D+
GND
5 6 7 8
1 2 3 4
Signal
+VBAT
GND
Pin USB Port 1
USB VCC
5
(+5V standby power)
6 USB #1_D-
7 USB #1_D+
8 GND
Connectors
