Ethernet Ports (Lan1) - AXIOMTEK OPS830 Series User Manual

3.1.5

Ethernet Ports (LAN1)

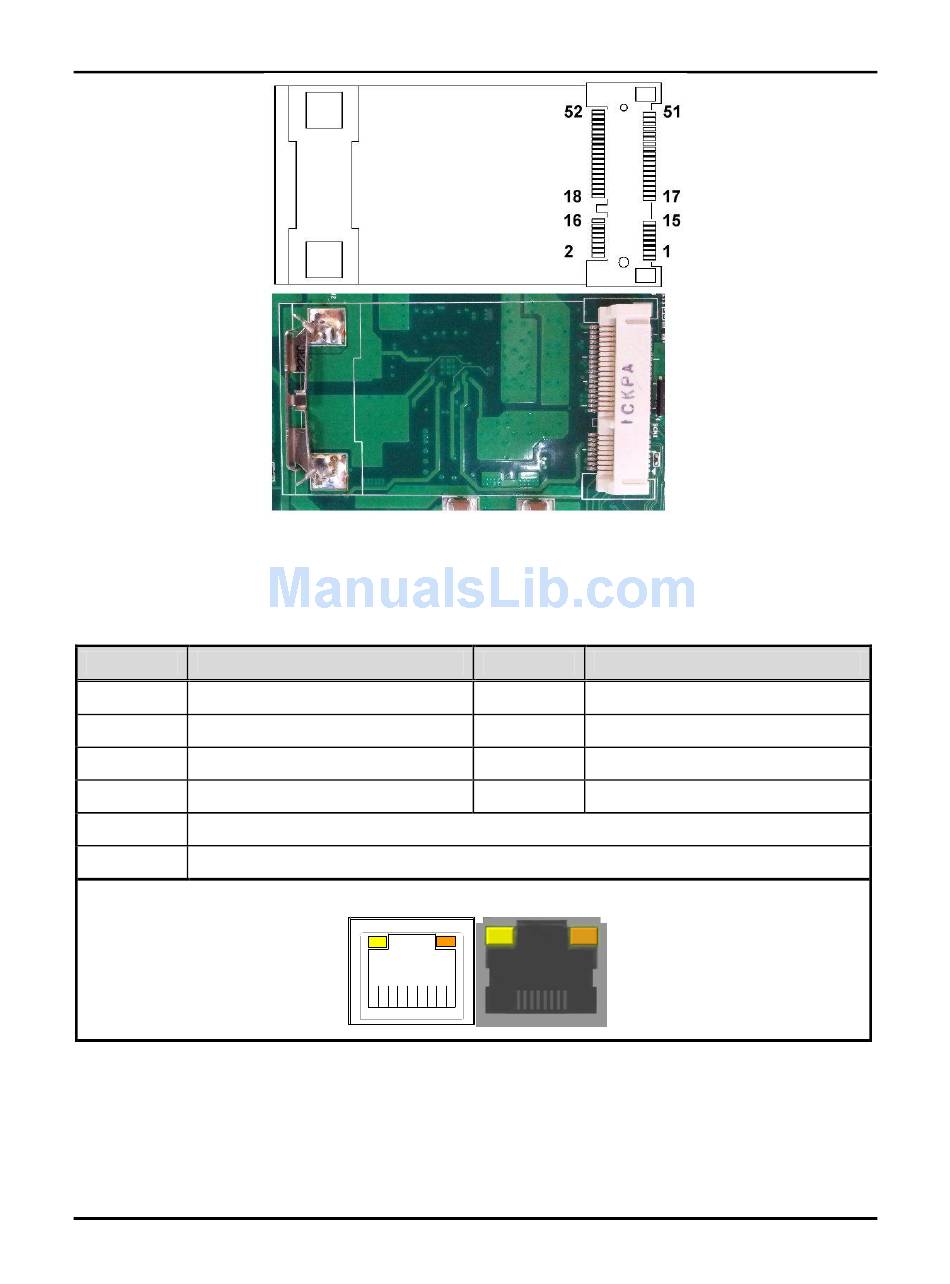

The RJ-45 connector LAN1 is for Ethernet. To connect the board to 100 -Base-T or 1000-
Base-T hub, just plug one end of the cable into LAN1 and connect the other end (phone
jack) to a 100-Base-T hub or 1000-Base-T hub.
Pin
L1
L2
L3
L4
A
B
Connectors
Signal
MDI0+
MDI0-
MDI1+
MDI1-
Active LED (Yellow)
100 LAN LED (Green)/1000 LAN LED (Orange)
A
A B
L8 L7 L6 L5 L4 L3 L2 L1
OPS830 Series User's Manual
Pin
L5
L6
L7
L8
B
Signal
MDI2+
MDI2-
MDI3+
MDI3-
31
