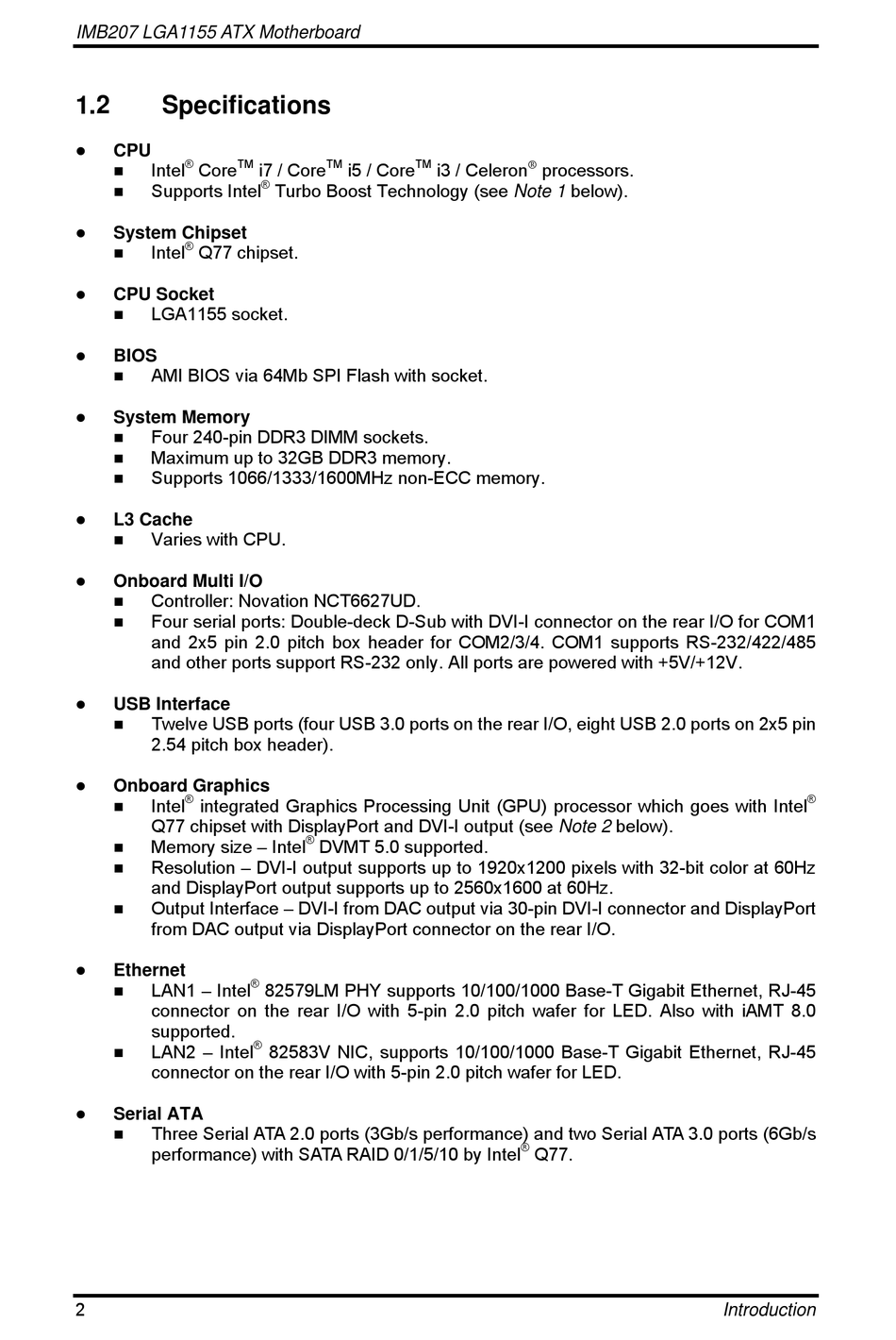

IMB207 LGA1155 ATX Motherboard
1.2

Specifications

 CPU
® TM
Intel Core

Supports Intel

 System Chipset
®
Intel Q77 chipset.

 CPU Socket
LGA1155 socket.

 BIOS
AMI BIOS via 64Mb SPI Flash with socket.

 System Memory
Four 240-pin DDR3 DIMM sockets.

Maximum up to 32GB DDR3 memory.

Supports 1066/1333/1600MHz non-ECC memory.

 L3 Cache
Varies with CPU.

 Onboard Multi I/O
Controller: Novation NCT6627UD.

Four serial ports: Double-deck D-Sub with DVI-I connector on the rear I/O for COM1

and 2x5 pin 2.0 pitch box header for COM2/3/4. COM1 supports RS-232/422/485
and other ports support RS-232 only. All ports are powered with +5V/+12V.
 USB Interface
Twelve USB ports (four USB 3.0 ports on the rear I/O, eight USB 2.0 ports on 2x5 pin

2.54 pitch box header).
 Onboard Graphics
®
Intel integrated Graphics Processing Unit (GPU) processor which goes with Intel

Q77 chipset with DisplayPort and DVI-I output (see Note 2 below).
Memory size – Intel

Resolution – DVI-I output supports up to 1920x1200 pixels with 32-bit color at 60Hz

and DisplayPort output supports up to 2560x1600 at 60Hz.
Output Interface – DVI-I from DAC output via 30-pin DVI-I connector and DisplayPort

from DAC output via DisplayPort connector on the rear I/O.
 Ethernet
LAN1 – Intel

connector on the rear I/O with 5-pin 2.0 pitch wafer for LED. Also with iAMT 8.0
supported.
LAN2 – Intel

connector on the rear I/O with 5-pin 2.0 pitch wafer for LED.
 Serial ATA
Three Serial ATA 2.0 ports (3Gb/s performance) and two Serial ATA 3.0 ports (6Gb/s

performance) with SATA RAID 0/1/5/10 by Intel
2
TM TM
i7 / Core i5 / Core
®
Turbo Boost Technology (see Note 1 below).
®
DVMT 5.0 supported.
®
82579LM PHY supports 10/100/1000 Base-T Gigabit Ethernet, RJ-45
®
82583V NIC, supports 10/100/1000 Base-T Gigabit Ethernet, RJ-45
i3 / Celeron ® processors.
®
Q77.
®
Introduction
