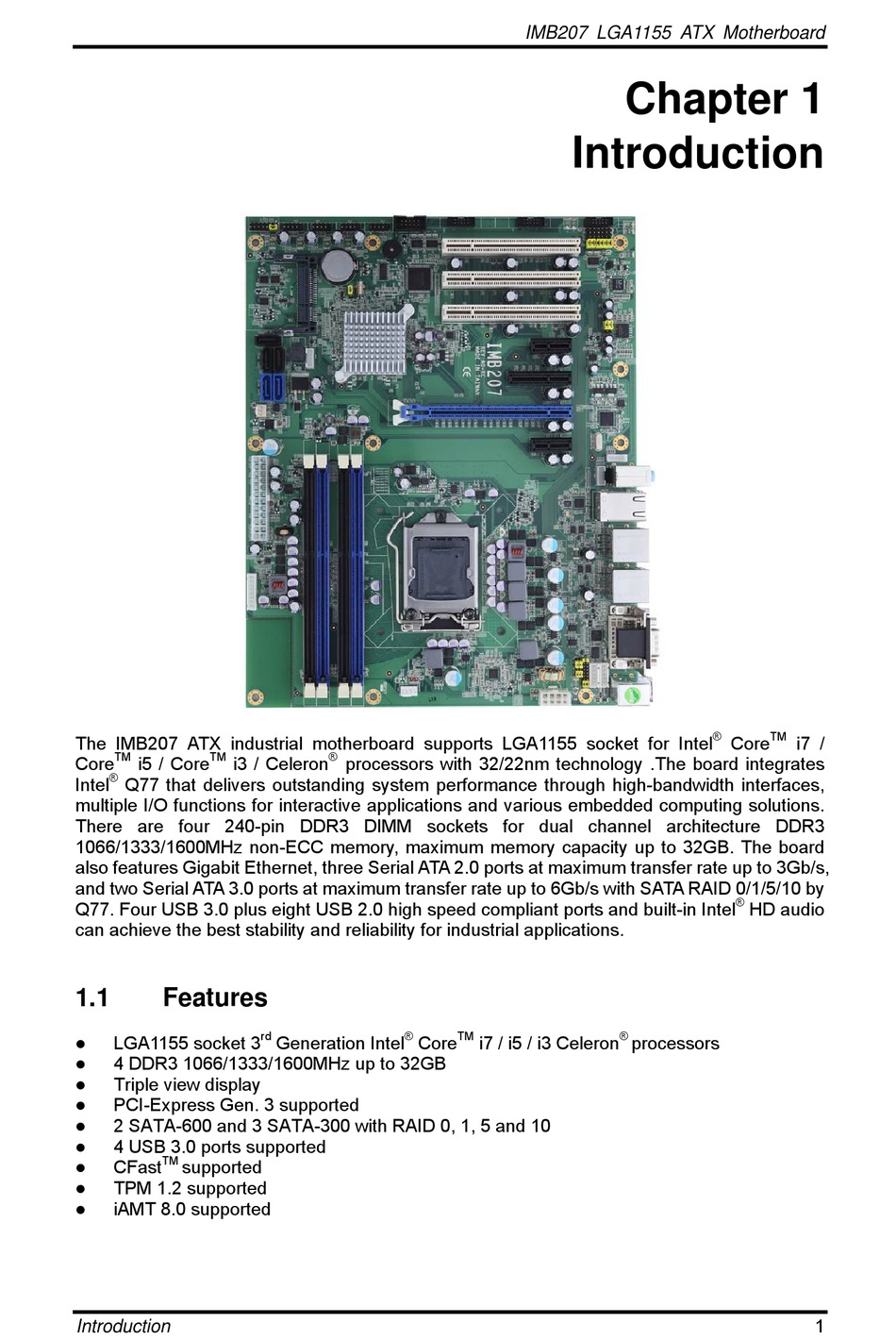

Chapter 1 Introduction; Features - AXIOMTEK IMB207 Series User Manual

The IMB207 ATX industrial motherboard supports LGA1155 socket for Intel
TM TM
Core i5 / Core i3 / Celeron
®
Intel Q77 that delivers outstanding system performance through high-bandwidth interfaces,
multiple I/O functions for interactive applications and various embedded computing solutions.
There are four 240-pin DDR3 DIMM sockets for dual channel architecture DDR3
1066/1333/1600MHz non-ECC memory, maximum memory capacity up to 32GB. The board
also features Gigabit Ethernet, three Serial ATA 2.0 ports at maximum transfer rate up to 3Gb/s,
and two Serial ATA 3.0 ports at maximum transfer rate up to 6Gb/s with SATA RAID 0/1/5/10 by
Q77. Four USB 3.0 plus eight USB 2.0 high speed compliant ports and built-in Intel
can achieve the best stability and reliability for industrial applications.
1.1

Features

LGA1155 socket 3

4 DDR3 1066/1333/1600MHz up to 32GB

Triple view display

PCI-Express Gen. 3 supported

2 SATA-600 and 3 SATA-300 with RAID 0, 1, 5 and 10

4 USB 3.0 ports supported

TM
CFast supported

TPM 1.2 supported

iAMT 8.0 supported

Introduction
®
processors with 32/22nm technology .The board integrates
rd ®
Generation Intel Core
IMB207 LGA1155 ATX Motherboard
Chapter 1
Introduction
TM ®
i7 / i5 / i3 Celeron
® TM
Core i7 /
®
HD audio
processors
1
