IMB207 LGA1155 ATX Motherboard

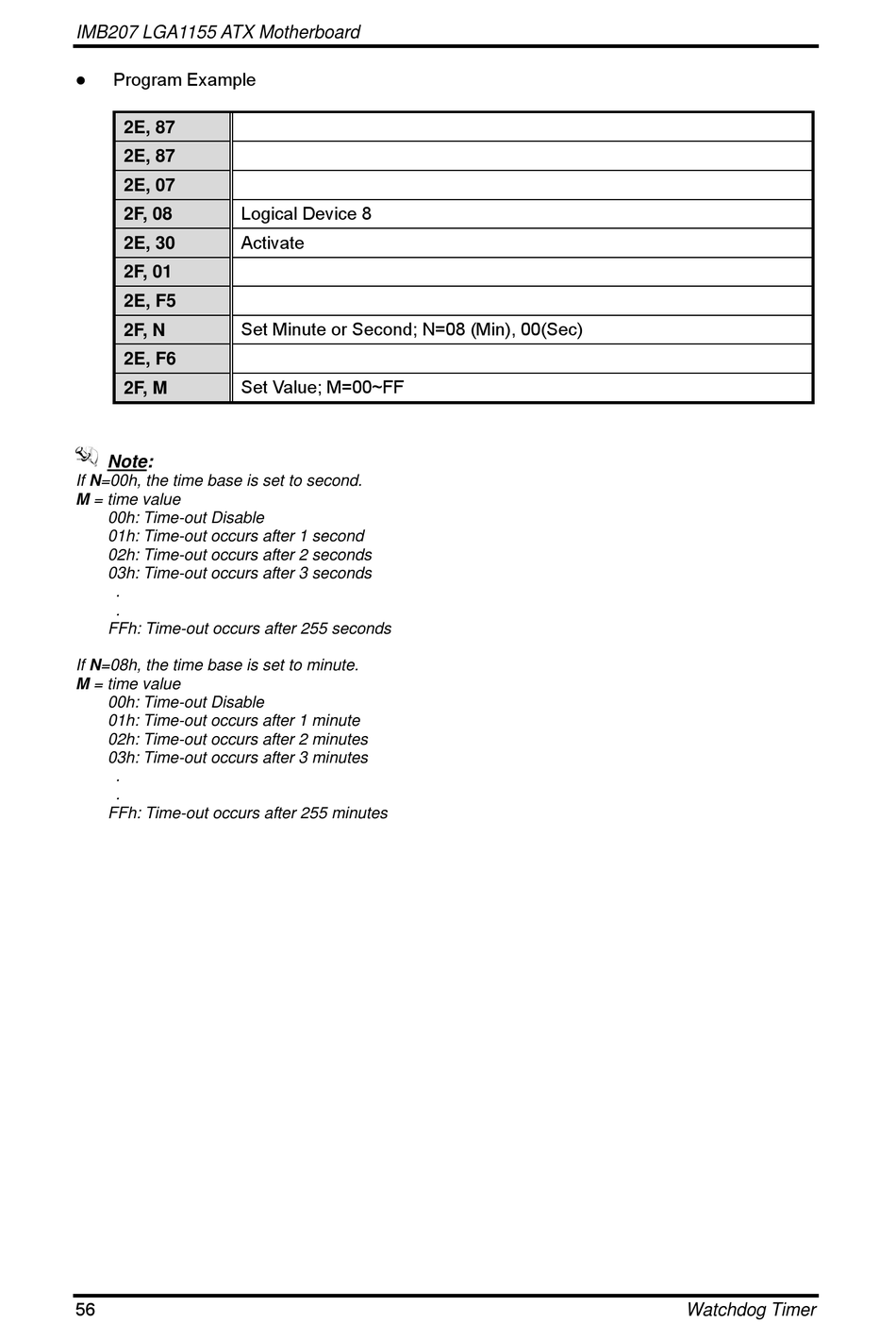

Program Example

2E, 87
2E, 87
2E, 07
Logical Device 8
2F, 08
Activate
2E, 30
2F, 01
2E, F5
Set Minute or Second; N=08 (Min), 00(Sec)
2F, N
2E, F6
Set Value; M=00~FF
2F, M
Note:
If N=00h, the time base is set to second.
M = time value
00h: Time-out Disable
01h: Time-out occurs after 1 second
02h: Time-out occurs after 2 seconds
03h: Time-out occurs after 3 seconds
.
.
FFh: Time-out occurs after 255 seconds
If N=08h, the time base is set to minute.
M = time value
00h: Time-out Disable
01h: Time-out occurs after 1 minute
02h: Time-out occurs after 2 minutes
03h: Time-out occurs after 3 minutes
.
.
FFh: Time-out occurs after 255 minutes
56
Watchdog Timer
