AXIOMTEK IMB207 Series User Manual page 32

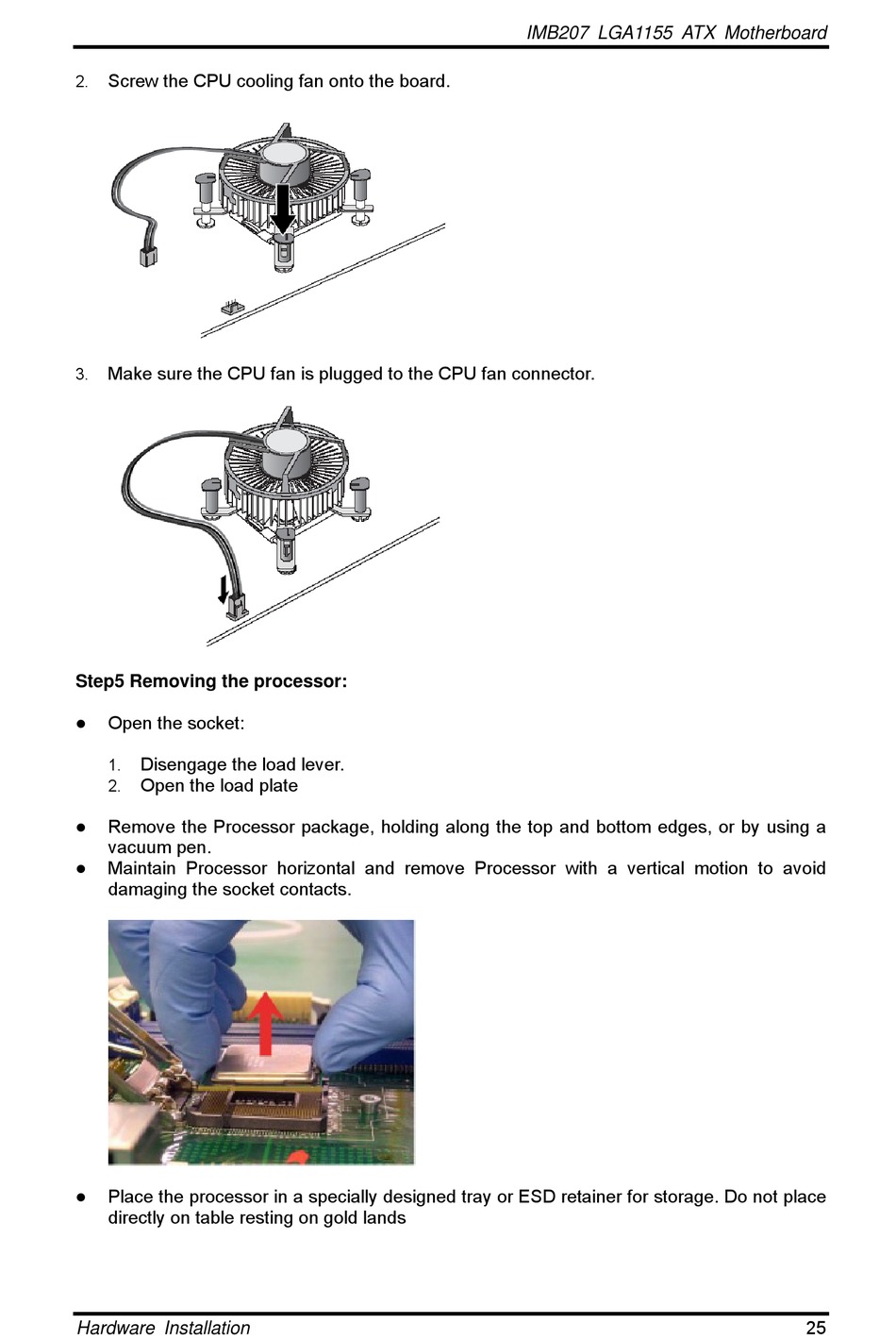

Screw the CPU cooling fan onto the board.
2.
Make sure the CPU fan is plugged to the CPU fan connector.
3.
Step5 Removing the processor:
Open the socket:

Disengage the load lever.
1.
Open the load plate
2.
Remove the Processor package, holding along the top and bottom edges, or by using a

vacuum pen.
Maintain Processor horizontal and remove Processor with a vertical motion to avoid

damaging the socket contacts.
Place the processor in a specially designed tray or ESD retainer for storage. Do not place

directly on table resting on gold lands
