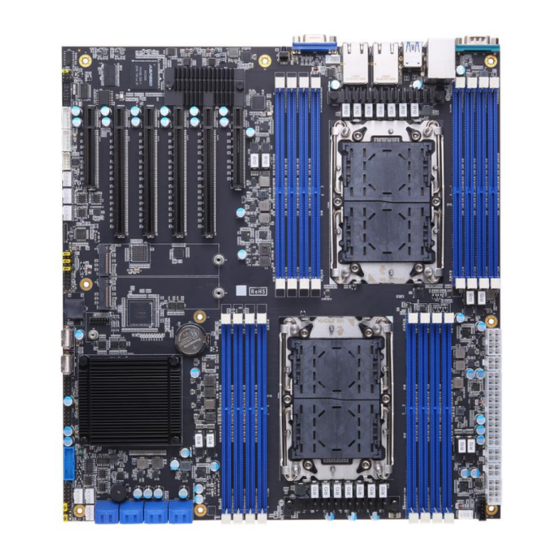

- Page 1 IMB760 ® ® Dual Intel LGA4189 Xeon Scalable Ice Lake-SP Processor EATX Industrial Motherboard with 4 PCIe x16, 2 PCIe x8, VGA, NVMe & IPMI User’s Manual...
- Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.
-
Page 3: Esd Precautions
◼ Wear a grounding wrist strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® ® Intel and Celeron are trademarks of Intel Corporation. -
Page 4: Table Of Contents
Table of Contents Disclaimers ...................... ii ESD Precautions ..................... iii Section 1 Introduction ..........1 Features ....................2 Specifications ..................2 Packing list .................... 4 Section 2 Board and Pin Assignments ....5 Board Layout ..................5 Rear I/O ....................6 Block Diagram .................. - Page 5 Section 3 Hardware Description ......27 Microprocessors .................. 27 BIOS....................27 System Memory .................. 27 Section 4 AMI BIOS Setup Utility ......29 Starting ....................29 Navigation Keys .................. 29 Main Menu ..................31 Advanced Menu .................. 32 Platform Configuration................. 44 Socket Configuration ................
- Page 6 This page is intentionally left blank.
-
Page 7: Introduction
Section 1 Introduction The IMB760 is an advanced EATX industrial severboard based on the Intel® Xeno® Scalable Ice Lake-SP processors in dual LGA4189 socket, and it comes with an Intel® C627A chipset. Featuring optimal computing and visual performance, the IMB760 motherboard is an ideal solution for developing major industry applications ranging from financial modeling to deep learning AI and complex video analytics. -
Page 8: Features
IMB760 LGA4189 EATX Motherboard Features ⚫ Dual Intel® Xeon® Scalable Ice Lake-SP platform up to 270W TDP ⚫ 16 x 288-pin DDR4-3200 RDIMM for up to 1TB of system memory ⚫ 4 PCIe x16, 2 PCIe x8 ⚫ Supports two M.2 Key M ⚫... - Page 9 IMB760 LGA4189 EATX Motherboard ⚫ Ethernet ◼ LAN1: 10Gbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE Boot ROM with ® Intel X550-AT2 ◼ LAN2: 10Gbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE Boot ROM with ® Intel X550-AT2 ◼ ® LAN3: IPMI LAN via Intel...
-
Page 10: Packing List
IMB760 LGA4189 EATX Motherboard Packing list Bulk packing ⚫ ◼ 1 x Motherboard ◼ 1 x I/O bracket Gift box ⚫ 1 x Motherboard ◼ 1 x I/O bracket ◼ Introduction... -
Page 11: Board And Pin Assignments
IMB760 LGA4189 EATX Motherboard Section 2 Board and Pin Assignments Board Layout Top view Board and Pin Assignments... -
Page 12: Rear I/O
IMB760 LGA4189 EATX Motherboard Rear I/O I/O side I/O bracket Board and Pin Assignments... -
Page 13: Block Diagram
IMB760 LGA4189 EATX Motherboard Block Diagram Board and Pin Assignments... -
Page 14: Jumper Settings
A square pad, which you can find on the back of the motherboard, is usually ⚫ used for pin 1. Before connecting the power to the IMB760 series motherboard, make sure all of the jumpers are in factory default position. Below you can find a summary table of all jumpers and onboard default settings. -
Page 15: Clear Cmos (Jp7)
IMB760 LGA4189 EATX Motherboard 2.4.1 Clear CMOS (JP7) This jumper (3x1-pin p=2.54mm) allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which includes system setup information such as system passwords. -
Page 16: Connectors
IMB760 LGA4189 EATX Motherboard Connectors Signals go to other parts of the system through connectors. Loose or improper connection might cause problems, Make sure all connectors are properly and firmly connected. Here is a summary table showing the connectors on the hardware. -
Page 17: Vga Connector (Vga1)
IMB760 LGA4189 EATX Motherboard 2.5.1 VGA Connector (VGA1) The 15-pin D-Sub connector is for VGA display. Signal Signal Green Blue DDC DATA Horizontal Sync Vertical Sync DDC CLK 2.5.2 LAN with IPMI and USB 3.1 Connectors (CN2) The motherboard comes with one plug and play Ethernet interfaces (RJ-45) which supports IPMI management, which is fully compliant with the IEEE 802.3 standard. -
Page 18: 10Gbe Lan Port (Lan1 & 2)
IMB760 LGA4189 EATX Motherboard 2.5.4 10GbE LAN port (LAN1 & 2) The IMB760 comes with two 10GbE LAN ports. The pin assignments are listed on the following table. Description MDI0+ MDI0- MDI1+ MDI2+ MDI2- MDI1- MDI3+ MDI3- Speed LED： 10G (Green) -
Page 19: 2280 Key M Pcie X4 Ssd Slot (Cn7 And Cn10)
IMB760 LGA4189 EATX Motherboard 2.5.7 M.2 2280 Key M PCIe x4 SSD slot (CN7 and CN10) The IMB760 comes with two M.2 2280 Key M slot with PCIe x4 for NVMe SSD storage or SATA signal for NGFF SSD. Signal... -
Page 20: Front Panel Header (Cn18)
IMB760 LGA4189 EATX Motherboard 2.5.8 Front Panel Header (CN18) This is a front panel header (7x2-pin p=2.54mm). Signal Power LED+ SPK- BUZZER Power LED- SPK+ PWR- PWR+ RESET- RESET+ HD LED- HD LED+ : The buzzer on the motherboard will be active when pin 2 and pin 4 are connected;... -
Page 21: Power Input Connectors (Atx1, Atx2, Cn12, Cn13, Cn16 And Cn17)
IMB760 LGA4189 EATX Motherboard 2.5.9 Power Input Connectors (ATX1, ATX2, CN12, CN13, CN16 and CN17) Steady and sufficient power can be supplied to all components on the motherboard by connecting the power connector. Please make sure all components and devices are properly installed before connecting the power connector. -
Page 22: Pmbus Connector (Pmbus1)
IMB760 LGA4189 EATX Motherboard 2.5.10 PMBUS Connector (PMBUS1) The PMBUS (Power System Management BUS) monitors the power supply, system temperature and fan. The connector pin assignments are listed on the following table. Signal PMBUS CLOCK PMBUS DATA PMBUS ALEAR PMBUS1 2.5.11... -
Page 23: Fan Connectors (Fan1~Fan6 And Cpu Fan1/2)
IMB760 LGA4189 EATX Motherboard 2.5.13 Fan Connectors (FAN1~FAN6 and CPU FAN1/2) This motherboard has eight fan connectors. Find fan speed option(s) at BIOS Setup Utility: Advanced\HW Monitor\PC Health Status. FAN1~6 (4x1-pin p=2.54mm) are for the the system fan connectors. CPU FAN1/2 (4x1-pin p=2.54mm) are for the the CPU fan connector. -
Page 24: Sata 3.0 Connectors (Sata1 ~ Sata4)
IMB760 LGA4189 EATX Motherboard 2.5.15 SATA 3.0 Connectors (SATA1 ~ SATA4) These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for SATA 3.0 interface allowing up to 6.0Gb/s data transfer rate. It is a computer bus interface for connecting to devices such as a hard disk drive. -
Page 25: Internal Mouse Connector (Cn4)
IMB760 LGA4189 EATX Motherboard 2.5.19 Internal Mouse Connector (CN4) The internal mouse (PS/2 type) interface is available through a 5-pin connector. Signal Mouse Clock Mouse Data +5V level 2.5.20 Serial Port Connector (IPMICOM1) The COM port pin assignments are listed on the following table. -
Page 26: Hardware Installation
IMB760 LGA4189 EATX Motherboard Hardware Installation This section provides information on how to install the IMB760 Series. 2.6.1 Installing the CPU The LGA4189 processor socket comes with a cover to protect the processor. Please install the processor into the CPU socket step by step as illustrated below. - Page 27 IMB760 LGA4189 EATX Motherboard This sequence is for installing the CPU cooler under 205 Watts: Step 1 Remove the socket protective covers. Press the load lever and release it from the retention tab. There are two levers for each CPU socket.
- Page 28 IMB760 LGA4189 EATX Motherboard Step 3 Check the notch on the CPU and the pin on the CPU socket of IMB760. Load lever Notch Follow the installation direction and Install the CPU clip and CPU on the cooler module. Load lever...
- Page 29 IMB760 LGA4189 EATX Motherboard Step 4 Place the CPU cooler module on the CPU socket on the motherboard, and then align pin A to hole A and pin B to hole B simultaneously. Hole A Pin A Hole B Pin B...
- Page 30 IMB760 LGA4189 EATX Motherboard Step 5 Latch four levers on the cooler. Step 6 Use a T30 Torx screwdriver (8in-LBF) to tighten the screws on the cooler. Board and Pin Assignments...
- Page 31 IMB760 LGA4189 EATX Motherboard This sequence is for installing the CPU cooler above 205 Watts: Repeat step1 to 3 for installing CPU on CPU cooler. Step 7 Latch four levers on the cooler. Step5 Put the fan module on the CPU cooler and tighten two screws (8in-LBF).
- Page 32 IMB760 LGA4189 EATX Motherboard This page is intentionally left blank. Board and Pin Assignments...
-
Page 33: Hardware Description
The IMB760 series uses AMI Plug and Play BIOS. System Memory The IMB760 supports six 288-pin DDR4 RDIMM sockets for maximum memory capacity up to 1TB of DDR4 RAMs. The memory module comes in sizes of 16GB, 32GB, and 64GB. - Page 34 IMB760 LGA4189 EATX Motherboard This page is intentionally left blank. Hardware Description...
-
Page 35: Ami Bios Setup Utility
IMB760 LGA4189 EATX Motherboard Section 4 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off. - Page 36 IMB760 LGA4189 EATX Motherboard Hot Keys Description → Left/Right The Left and Right <Arrow> keys allow you to select a setup screen. The Up and Down <Arrow> keys allow you to select a setup screen or sub Up/Down screen.
-
Page 37: Main Menu
IMB760 LGA4189 EATX Motherboard Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below. -
Page 38: Advanced Menu
IMB760 LGA4189 EATX Motherboard Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►... - Page 39 IMB760 LGA4189 EATX Motherboard ⚫ Trusted Computing Enable or disable security device support. AMI BIOS Setup Utility...
- Page 40 IMB760 LGA4189 EATX Motherboard ⚫ AST2500SEC Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
- Page 41 IMB760 LGA4189 EATX Motherboard ⚫ NCT7802Y Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and cooling fans speed in RPM. SYS FA = FAN1, 2 & 3. Note AMI BIOS Setup Utility...
- Page 42 IMB760 LGA4189 EATX Motherboard ⚫ NCT7802YSEC Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and cooling fans speed in RPM. SYS FA = FAN4, 5 & 6. Note AMI BIOS Setup Utility...
- Page 43 IMB760 LGA4189 EATX Motherboard ⚫ F81803 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
- Page 44 IMB760 LGA4189 EATX Motherboard ⚫ Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, cooling fans speed in RPM and system voltages (VCC3V, VCC, +3VSBY, +5VSBY and VBAT). AMI BIOS Setup Utility...
- Page 45 IMB760 LGA4189 EATX Motherboard ⚫ Serial Port Console Redirection This screen allows you to set serial port console redirection. AMI BIOS Setup Utility...
- Page 46 IMB760 LGA4189 EATX Motherboard ⚫ PCI Subsystem Settings This screen allows you to set PCI Subsystem mode. Above 4G Decoding Ebable or disable above 4G decoding. SR-IOV Support Ebable or disable SR-IOV support. BME DMA Mitigation Ebable or disable BME DMA Mitigation.
- Page 47 IMB760 LGA4189 EATX Motherboard ⚫ USB Configuration This screen shows USB configuration. USB Devices Displays all detected USB devices. Legacy USB Support Enables Legacy USB support. The AUTO option disables legacy support if no USB devices are connected. XHCI Hand-off This is a workaround for OSes without XHCI hand-off support.
- Page 48 IMB760 LGA4189 EATX Motherboard ⚫ Network Stack Configuration On this screen, you can select PXE LAN port. AMI BIOS Setup Utility...
- Page 49 IMB760 LGA4189 EATX Motherboard ⚫ CSM (Compatibility Support Module) Configuration This screen displays CSM information. CSM Support Enabled / Disable CSM Support. GateA20 Active UPON REQUEST - GA20 can be disabled using BIOS services. ALWAYS - do not allow disabling GA20. This option is useful when any RT code is executed above 1MB.
-
Page 50: Platform Configuration
IMB760 LGA4189 EATX Motherboard Platform Configuration The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► PCI Express Configuration ►... - Page 51 IMB760 LGA4189 EATX Motherboard ⚫ PCI Express Configuration The screen shows PCI Express Configuration. AMI BIOS Setup Utility...
- Page 52 IMB760 LGA4189 EATX Motherboard ⚫ PCH SATA Configuration During system boot up, the BIOS automatically detects the presence of SATA devices. In the SATA Configuration menu, you can see the hardware currently installed in the SATA ports. SATA Controller(s) Enable or disable the SATA Controller feature. The default is Enabled.
-
Page 53: Socket Configuration
IMB760 LGA4189 EATX Motherboard Socket Configuration The socket configuration menu allows users to change the advanced socket settings. ► Processor Configuration ► IIO Configuration For items marked with “”, please press <Enter> for more options. AMI BIOS Setup Utility... - Page 54 IMB760 LGA4189 EATX Motherboard ⚫ Processor Configuration This screen shows processor information and set TME function. Total Memory Encryption (TME) Enable or disable the TME function. Total Memory Encryption Multi-Tena Enable or disable the Multi-Tena function. AMI BIOS Setup Utility...
- Page 55 IMB760 LGA4189 EATX Motherboard ⚫ IIO Configuration In this screen users to select options for the IIO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
- Page 56 IMB760 LGA4189 EATX Motherboard ⚫ Socket1/2 Configuration This screen shows the IO configuration of socket1/2 information. AMI BIOS Setup Utility...
- Page 57 IMB760 LGA4189 EATX Motherboard Intel® VT for Directed I/O (VT-d) ⚫ This screen shows the VT-d function. Intel® VT for Directed I/O Enable or disable VT function. DMA Control Opt-In Flag Enable or disable DMA function. AMI BIOS Setup Utility...
-
Page 58: Server Mgmt
IMB760 LGA4189 EATX Motherboard Server Mgmt The Server Mgmt allows users to change the BMC settings for the system. BMC Support Enable or disable BMC support function BMC network configuration Displays BMC support configuration information. AMI BIOS Setup Utility... -
Page 59: Security Menu
IMB760 LGA4189 EATX Motherboard Security Menu The Security menu allows users to change the security settings for the system. Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled). User Password This item indicates whether a user password has been set (installed or uninstalled). -
Page 60: Boot Menu
IMB760 LGA4189 EATX Motherboard Boot Menu The Boot menu allows users to change boot options of the system. Setup Prompt Timeout Enter the number of seconds to wait for the setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Use this item to select the power-on state for the keyboard NumLock. -
Page 61: Save & Exit Menu
IMB760 LGA4189 EATX Motherboard 4.10 Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu. - Page 62 IMB760 LGA4189 EATX Motherboard Save Changes When you have completed the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes to save changes. Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration.
-
Page 63: Appendix A Watchdog Timer
IMB760 LGA4189 EATX Motherboard Appendix A Watchdog Timer About Watchdog Timer Software stability is a major issue in most applications. Some embedded systems are not watched by humans for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs. - Page 64 IMB760 LGA4189 EATX Motherboard Note: If N=00h, the time base is set to second. M = time value 00h: Time-out Disable 01h: Time-out occurs after 1 second 02h: Time-out occurs after 2 seconds 03h: Time-out occurs after 3 seconds FFh: Time-out occurs after 255 seconds If N=08h, the time base is set to minute.
-
Page 65: Appendix B Tpm Module Installation
The TPM 2.0 (Trusted Platform Module 2.0) module features a modularized design compatible with the IMB760 and provides enhanced hardware security for the computer. In this appendix you will learn how to install the TPM 2.0 module into the IMB760. Please read and follow the instructions below carefully. - Page 66 IMB760 LGA4189 EATX Motherboard (In the Trusted Computing section, the first line will show “TPM2.0 Device Found”, if installation is successful.) b. In the Windows Server 2019 OS environment, enter Device Manager, and select the item of Security devices. The screen will show “Trusted Platform Module 2.0” if installation is successful.
- Page 67 IMB760 LGA4189 EATX Motherboard c. In the Windows Server 2019 OS environment, enter Control Panel, select the item of BitLocker Drive Encryption, and enter TPM Administration. The screen will show the information below if installation is successful. TPM Module Installation...
- Page 68 IMB760 LGA4189 EATX Motherboard This page is intentionally left blank. TPM Module Installation...
-
Page 69: Appendix C Configuring Sata For Raid
IMB760 LGA4189 EATX Motherboard Appendix C Configuring SATA for RAID Configuring SATA Hard Drive(s) for RAID Function Before you begin the SATA configuration, please prepare: Two SATA hard drives (to ensure optimal performance, it is recommended that you use ⚫... - Page 70 IMB760 LGA4189 EATX Motherboard Turn on your system, and then press the <Del> button to enter BIOS Setup during running 2.1. POST (Power-On Self Test). If you want to create RAID, just go to the Platform configuration/PCH SATA Configuration, select the “Configuration SATA as”, and press <Enter>...
- Page 71 IMB760 LGA4189 EATX Motherboard Enable the Load EFI Driver for RAID. 2.2. Under the Boot Settings menu, set DVD-ROM or USB flash drice for First Boot Option to 2.3. boot DVD-ROM or USB flash drice after system restarts. Configuring SATA for RAID...
- Page 72 IMB760 LGA4189 EATX Motherboard Go to the Advanced screen, select the “Intel(R) VROC SATA Controller”; furtherly, select 2.4. the ”Cerate RAID Volume” and press <Enter> for more options. Configuring SATA for RAID...
- Page 73 IMB760 LGA4189 EATX Motherboard Select the “RAID Level”, and choose RAID0, 1 or 5 for youe needs. 2.5. Save and exit the BIOS Setup. 2.6. Configuring SATA for RAID...
- Page 74 IMB760 LGA4189 EATX Motherboard This page is intentionally left blank. Configuring SATA for RAID...
-
Page 75: Appendix D Digital I/O
IMB760 LGA4189 EATX Motherboard Appendix D Digital I/O Digital I/O Software Programming ⚫ I2C to GPIO PCA9554PW GPIO[3:0] is Output, GPIO[7:4] is Input. I2C address: 0b0100100x. ⚫ IOBASE: 0xF040 ⚫ Registers: ⚫ Command byte Command Protocol Function Read byte Input port register... - Page 76 IMB760 LGA4189 EATX Motherboard Register 1: Output port register. This register reflects the outgoing logic levels of the pins defined as outputs by Register 3. Bit values in this register have no effect on pins defined as inputs. Reads from this register return the value that is in the flip-flop controlling the output selection, not the actual pin value.
