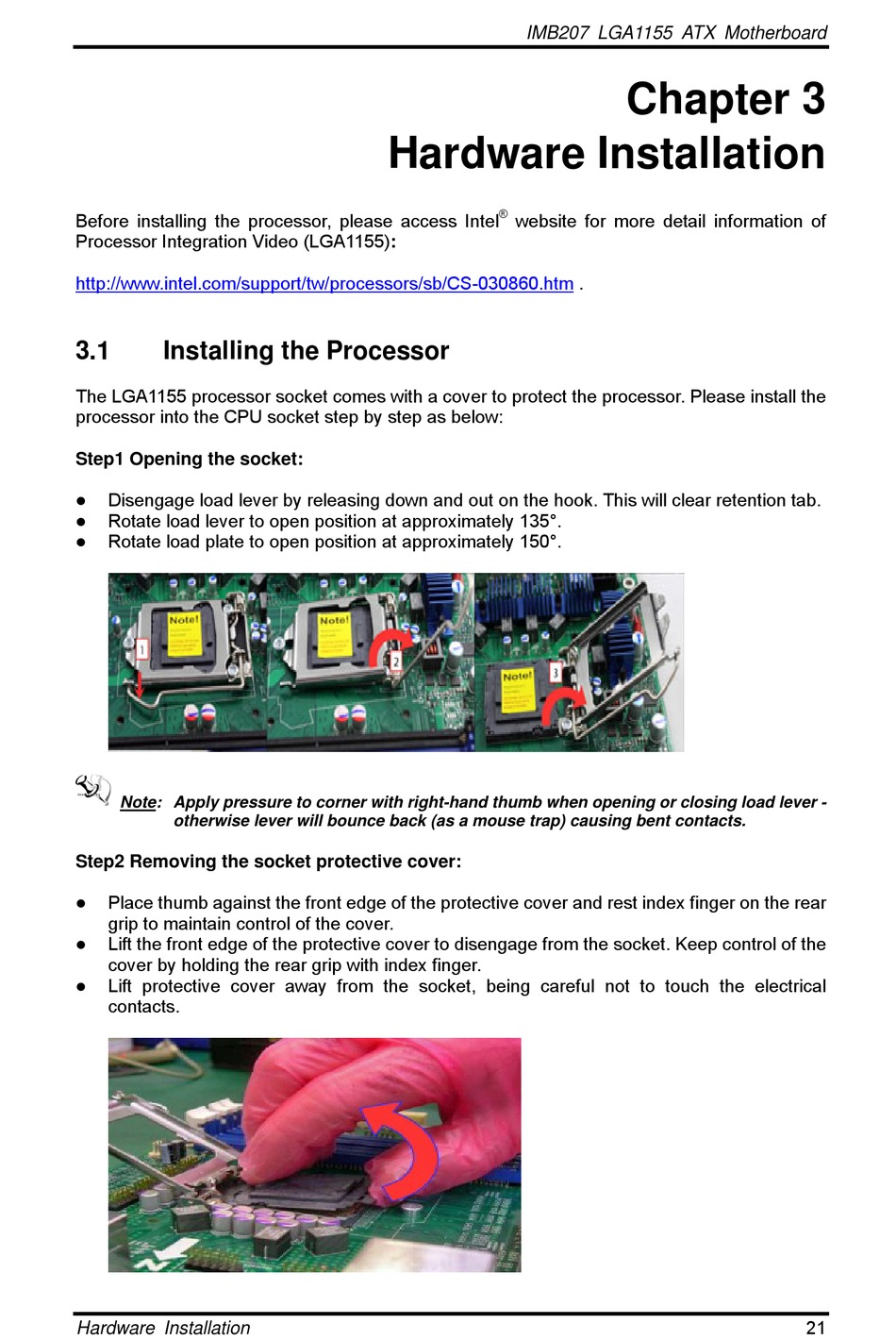

Before installing the processor, please access Intel
Processor Integration Video (LGA1155):
http://www.intel.com/support/tw/processors/sb/CS-030860.htm
3.1

Installing the Processor

The LGA1155 processor socket comes with a cover to protect the processor. Please install the
processor into the CPU socket step by step as below:
Step1 Opening the socket:
Disengage load lever by releasing down and out on the hook. This will clear retention tab.

Rotate load lever to open position at approximately 135°.

Rotate load plate to open position at approximately 150°.

Note: Apply pressure to corner with right-hand thumb when opening or closing load lever -
otherwise lever will bounce back (as a mouse trap) causing bent contacts.
Step2 Removing the socket protective cover:
Place thumb against the front edge of the protective cover and rest index finger on the rear

grip to maintain control of the cover.
Lift the front edge of the protective cover to disengage from the socket. Keep control of the

cover by holding the rear grip with index finger.
Lift protective cover away from the socket, being careful not to touch the electrical

contacts.
