2.2.1 Loudspeaker Amplifier Components

Figure 2-3
Operations Guide
shows the components of the Loudspeaker Amplifier.

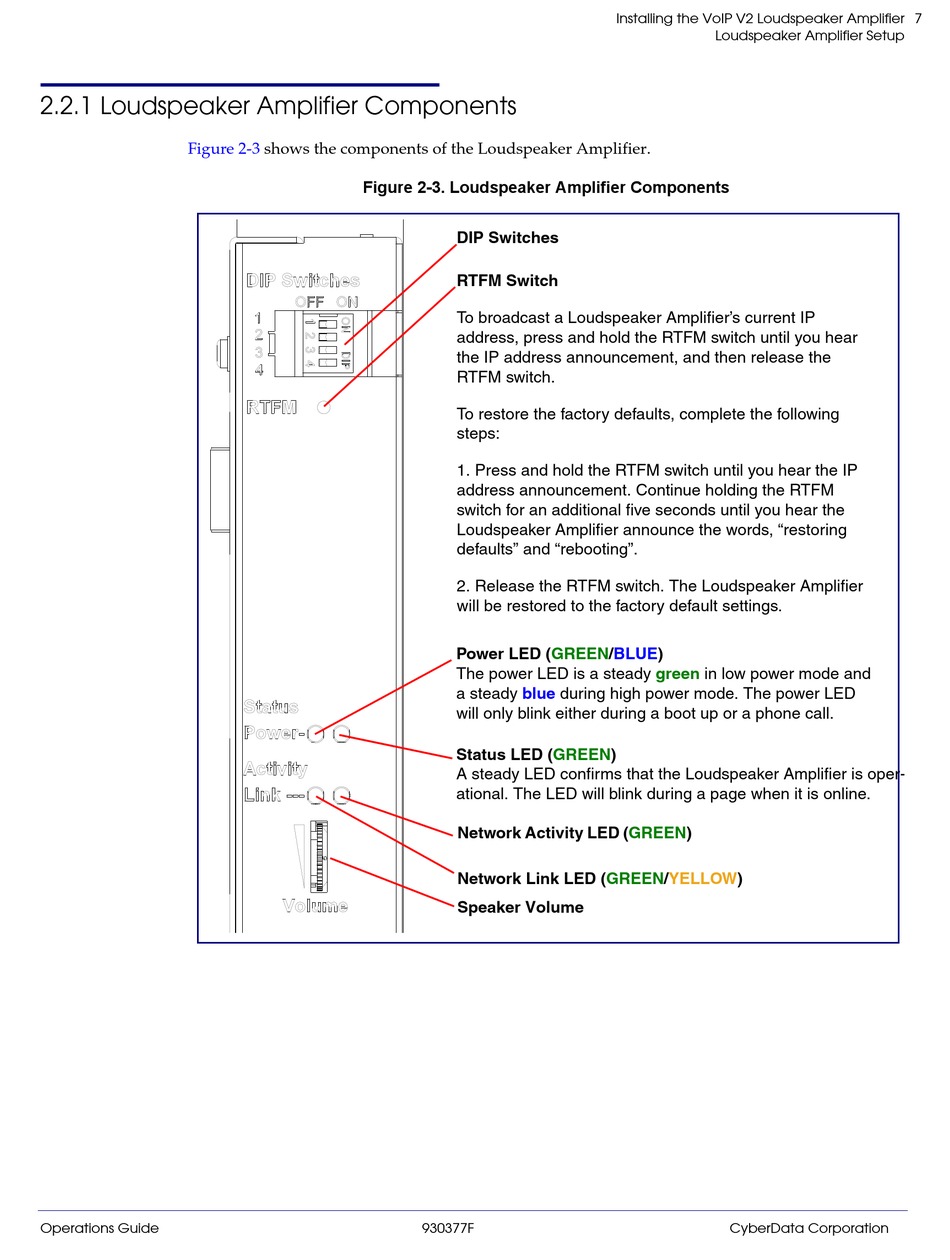

Figure 2-3. Loudspeaker Amplifier Components
930377F
Installing the VoIP V2 Loudspeaker Amplifier
DIP Switches
RTFM Switch
To broadcast a Loudspeaker Amplifier's current IP
address, press and hold the RTFM switch until you hear
the IP address announcement, and then release the
RTFM switch.
To restore the factory defaults, complete the following
steps:
1. Press and hold the RTFM switch until you hear the IP
address announcement. Continue holding the RTFM
switch for an additional five seconds until you hear the
Loudspeaker Amplifier announce the words, "restoring
defaults" and "rebooting".
2. Release the RTFM switch. The Loudspeaker Amplifier
will be restored to the factory default settings.
Power LED (GREEN/BLUE)
The power LED is a steady
a steady
blue
during high power mode. The power LED
will only blink either during a boot up or a phone call.
Status LED (GREEN)
A steady LED confirms that the Loudspeaker Amplifier is oper-
ational. The LED will blink during a page when it is online.
Network Activity LED (GREEN)
Network Link LED (GREEN/YELLOW)
Speaker Volume
Loudspeaker Amplifier Setup
green
in low power mode and
CyberData Corporation
7
