High Power Mode
Note: You can use an 802.3af
compliance switch instead of an
802.3af power injector and hub.
Non-PoE Ethernet Switch
802.3at PoE Injector (high power mode)
Operations Guide

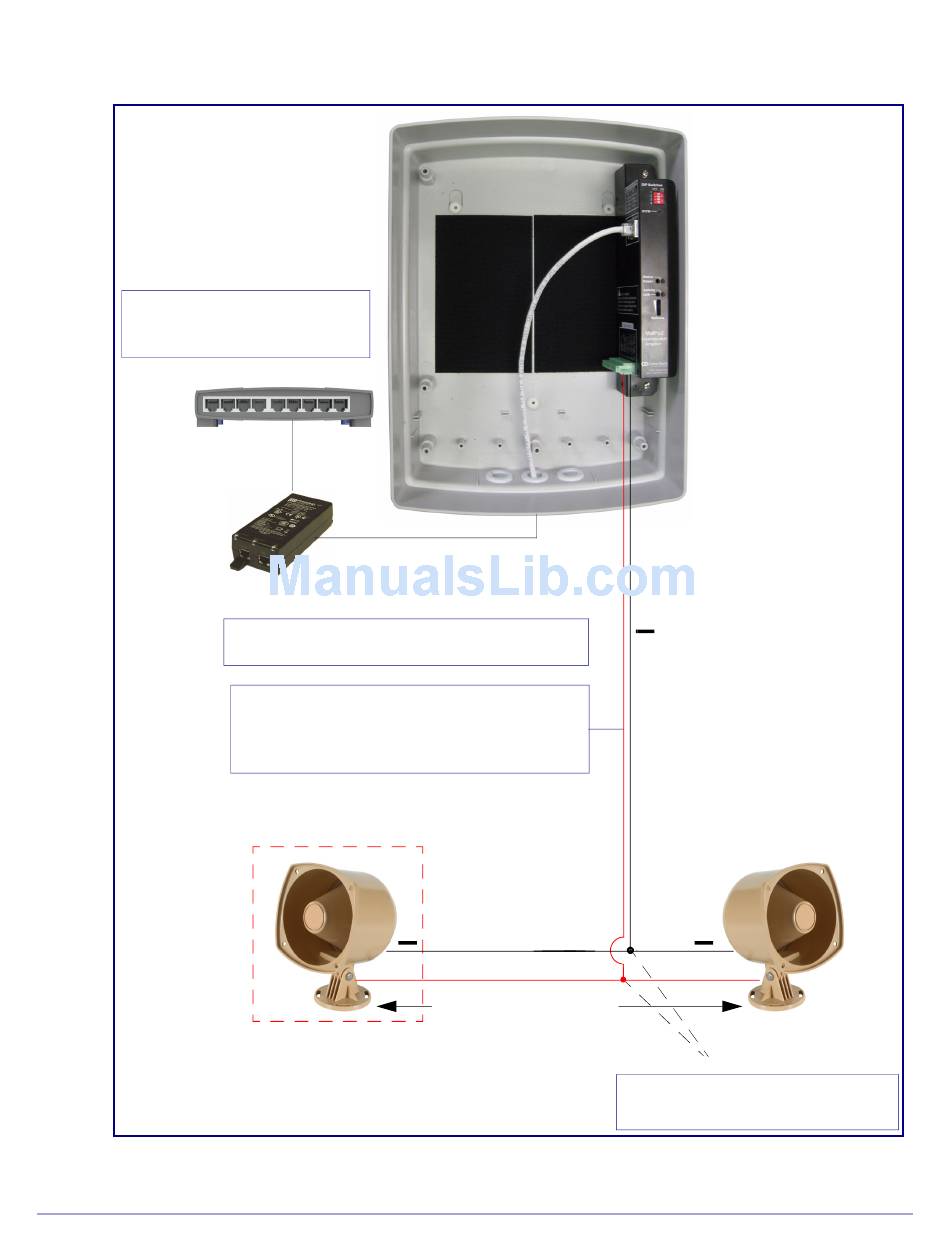

Figure 2-6. Using the Amplified Outputs—High Power Mode
Cat 5 Ethernet Cable
*Note: The positive (+) wire coming from the speaker
may be red or white. The negative (-) wire is black.
Use 16 gauge wire coming out of screw terminals.
Note: Make sure that the wire length going to the
wire nuts is kept short (approximately 6 inches).
Optional 2 Speaker Configuration
(802.3at mode)
8 Ohms
+
2 speakers in parallel (4 Ohm total)
+
*
16 gauge wire
25 feet maximum distance
930377F
Installing the VoIP V2 Loudspeaker Amplifier
Loudspeaker Amplifier Setup
Standard 1 Speaker Configuration
(802.3af mode)
8 Ohms
+
Twist wire nuts
Note: Use wire nuts to connect wire
from the speakers to 16 gauge wire.
CyberData Corporation
