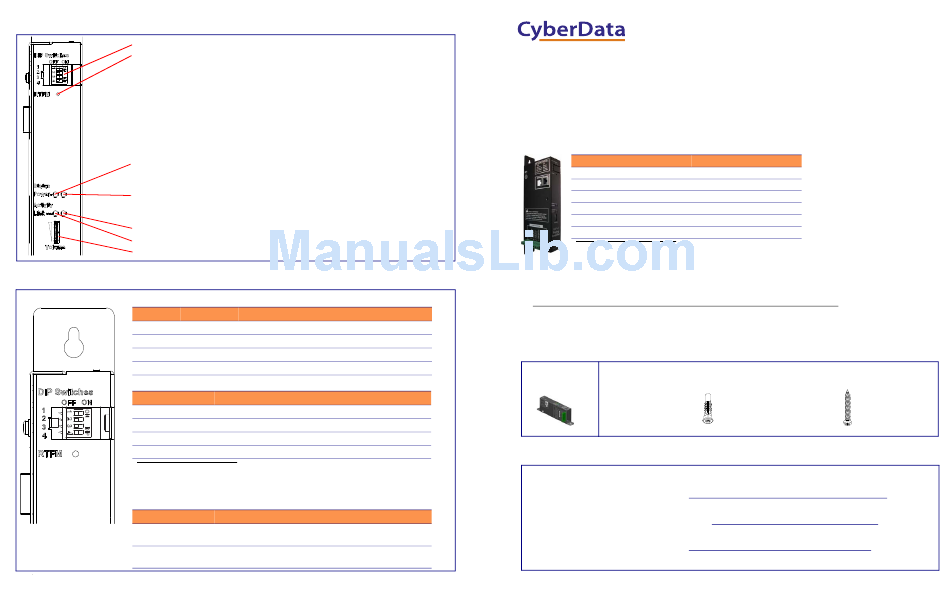

CyberData 11085 Installation Quick Reference Manual

Features
DIP Switches
RTFM Switch
To broadcast a Paging Amplifier's current IP address, press the RTFM switch on the Paging
Amplifier for one second, and then release the switch to hear the IP address announcement.
To restore the factory defaults, complete the following steps:
1. Press and hold the RTFM switch for eight seconds. The Paging Amplifier will announce
the words, "restoring defaults", and then announce the words, "rebooting".
2. Release the RTFM switch. The Paging Amplifier settings
will be restored to the factory default settings.
Power LED (GREEN/BLUE)
The power LED is a steady
mode. The power LED will only blink either during a boot up or a phone call.
Status LED (GREEN)
A steady LED confirms that the Paging Amplifier is operational.
The LED will blink during a page when it is online.
Network Activity LED (GREEN)
Network Link LED (GREEN/YELLOW)
Speaker Volume
DIP Switch Settings
DIP Switch Settings—Low Power—802.3af Compliant
DIP Switch Default Setting Description
1 OFF
2 N/A
3 ON
4 OFF
DIP Switch Settings—High Power—802.3at Compliant
DIP Switch Setting
1 ON
2 N/A
3 OFF
4 ON
a. If set to high power, the unit will not power ON with 802.3af compliant switch. You must use a
power injector in this mode (CyberData Part Number 011124).
conforms to IEEE 802.3at draft 3.0.
DIP Switch Setting
2 OFF
2 ON
© 2011, CyberData Corporation, ALL RIGHTS RESERVED
green in low power mode and a steady blue during high power
Sets PoE for 802.3af class.
Not applicable for power setting.
Switch mode current set to LOW.
Low gain amplifier setting.
a
Description
Sets PoE for 802.3at class.
Not applicable for power setting.
Switch mode current set to HIGH.
Force high gain amplifier.
High power PoE mode
DIP Switch 2 Settings
Description
Manual Vol. The speaker volume is set manually by the analog
volume trimmer.
Bypass. Bypasses the manual volume control of the analog volume
trimmer and uses the web page volume settings.
930329G Quick Reference
Installation Quick Reference
Singlewire-enabled
VoIP V2 Paging Amplifier
011085
The CyberData Singlewire-enabled VoIP V2 Paging Amplifier provides an easy method for implementing an IP-based overhead
paging system for both new and legacy installations.
The Singlewire-enabled VoIP V2 Paging Amplifier is compatible with InformaCast Version 4.0 and higher.
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
Getting Started
• Download the Singlewire-enabled VoIP V2 Paging Amplifier Operations Guide PDF file from the Singlewire-enabled VoIP V2
Paging Amplifier product page at:
http://www.cyberdata.net/products/voip/digitalanalog/singlewirepagingampv2/docs.html
• Create a plan for the locations of your paging amplifiers.
• Prior to installation, consult local building and electrical code requirements.
Paging Amplifier Parts
(1) Assembly (1) Wall Mounting Kit
(2) Plastic Ribbed Anchors
Contacting CyberData
Corporate Headquarters Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.html
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA Email: RMA@CyberData.net
RMA Status:
Phone: 831-373-2601
Fax: 831-373-4193
Warranty information is available at:
www.CyberData.net
Web: http://www.cyberdata.net/support/warranty/index.html
Quick Reference
(2) #6 Sheet Metal Screws
http://www.cyberdata.net/support/rmastatus.html
