CyberData 11115 Operation Manual

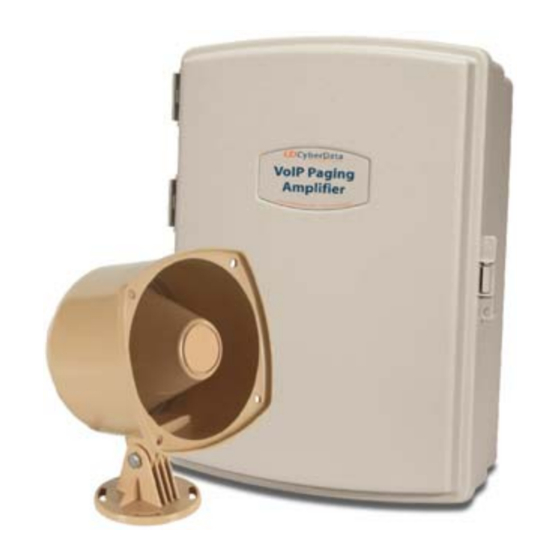

Singlewire-enabled voip v2 loudspeaker amplifier (wireless)
Hide thumbs Also See for 11115:
Table of Contents

Advertisement

Quick Links

Download this manual
Singlewire-enabled
VoIP V2 Loudspeaker
Amplifier (Wireless)
Operations Guide
Part #011115
Document Part #930376B
for Firmware Version 1.2.3
CyberData Corporation
2555 Garden Road
Monterey, CA 93940
(831) 373-2601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberData 11115

Summary of Contents for CyberData 11115

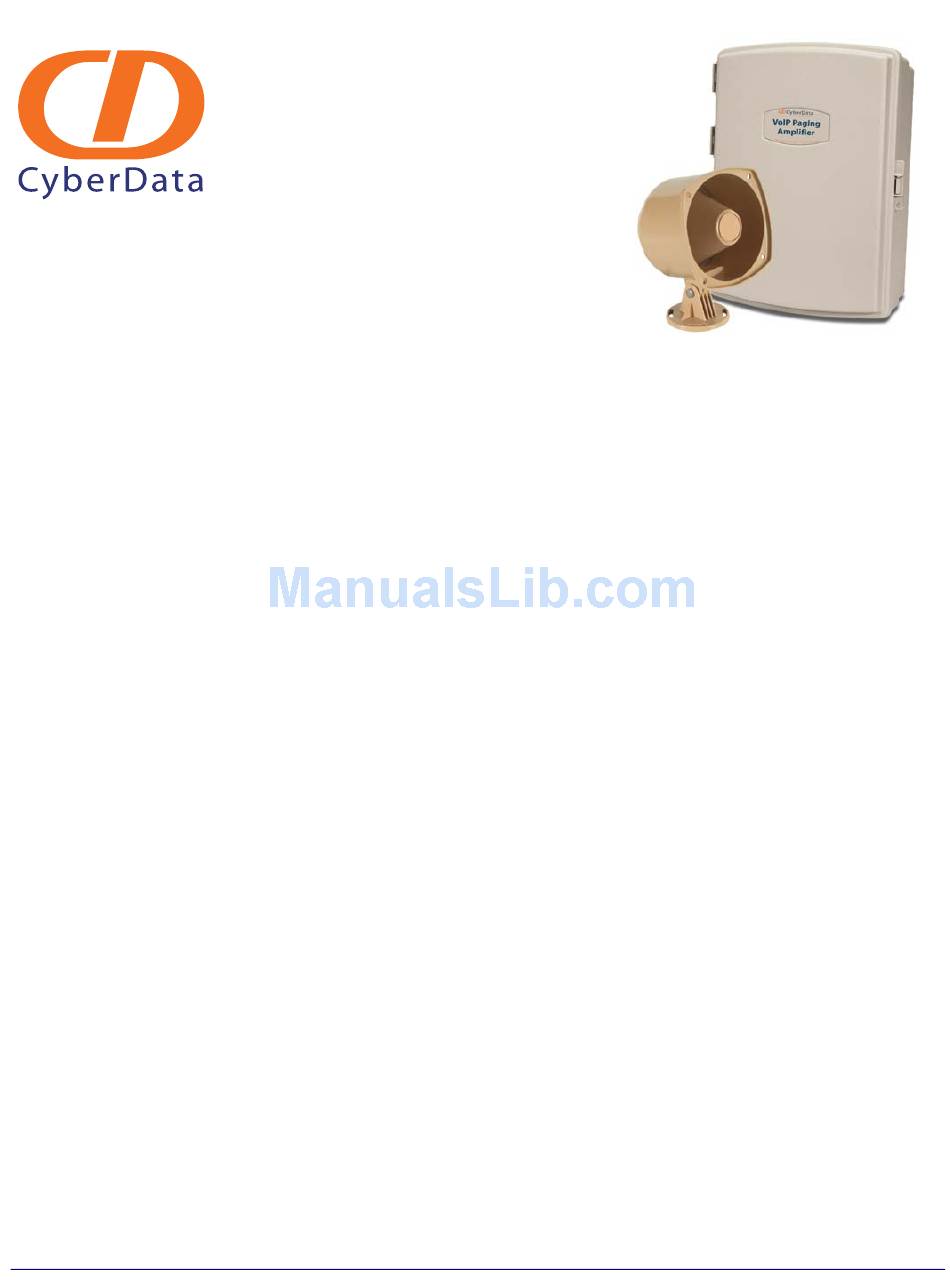

  • Page 1 Singlewire-enabled VoIP V2 Loudspeaker Amplifier (Wireless) Operations Guide Part #011115 Document Part #930376B for Firmware Version 1.2.3 CyberData Corporation 2555 Garden Road Monterey, CA 93940 (831) 373-2601...
  • Page 2 “open source” or “free software” licenses. Some of this Open Source Software may be owned by third parties. Open Source Software is not subject to the terms and conditions of the CyberData COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open Source Software is determined by the terms of the GPL, LGPL, or third party, according to who licenses that software.
  • Page 3 Revision Information Revision 930376B, released on 10-20-2010, corresponds to firmware version 1.2.3, and has the following changes: • Adds Section 2.2.2, "Loudspeaker Amplifier NEMA Box Components". • Adds Section 2.2.3, "Connect the Loudspeaker Amplifier". Operations Guide 930376B CyberData Corporation...

  • Page 4: Important Safety Instructions

    Electrical Hazard: This product should be installed by a licensed electrician according to all local electrical and building codes. GENERAL ALERT Warning Electrical Hazard: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Operations Guide 930376B CyberData Corporation...
  • Page 5 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. Operations Guide 930376B CyberData Corporation...
  • Page 6 Real-time Transport Protocol RTFM Reset Test Function Management Session Initiated Protocol Talkback Two-way communication enabled TFTP Trivial File Transfer Protocol u-law A companding algorithm, primarily used in the digital telecommunication Unified Communications VoIP Voice over Internet Protocol Operations Guide 930376B CyberData Corporation...

  • Page 7: Table Of Contents

    C.4.2 Warranty & RMA Returns Outside of the United States ............ 35 C.4.3 Spare in the Air Policy ......................35 C.4.4 Return and Restocking Policy ....................35 C.4.5 Warranty and RMA Returns Page ..................35 Index Operations Guide 930376B CyberData Corporation...

  • Page 8: Chapter 1 Product Overview

    1.1 How to Identify This Product To identify the VoIP V2 Loudspeaker Amplifier, look for a model number label similar to the one shown in Figure 1-1. The model number on the label should be 011115. Figure 1-1. Model Number Label WWW.CYBERDATA.NET AMPLIFIER,VoIP PAGING V2,PoE,...

  • Page 9: Typical System Installation

    VoIP V2 Loudspeaker Amplifier is normally installed as part of a public address system. Figure 1-2. Typical Installation 802.3af Compliant Ethernet Switch Loudspeaker Amplifier VoIP Phone Informacast Server High Power PoE Injector in Box Operations Guide 930376B CyberData Corporation...

  • Page 10: Product Features

    • TFTP Client Facilitates Web-based firmware upgrades of the latest Loudspeaker Amplifier capabilities. • RTP • RTP/AVP - Audio Video Profile • SPEEX • Audio Encodings PCMU (G.711 mu-law) PCMA (G.711 A-law) Packet Time 20 ms Operations Guide 930376B CyberData Corporation...

  • Page 11: Product Specifications

    802.3af - up to 10 Watts (default, 50% duty cycle [one second on and one second off]). Lineout: Output Signal Amplitudes 2.0 VPP maximum Output Level +2dBm nominal Total Harmonic Distortion 0.5% maximum Part Number 011115 Operations Guide 930376B CyberData Corporation...

  • Page 12: Chapter 2 Installing The Voip V2 Loudspeaker Amplifier

    Loudspeaker Amplifier and includes a kit for mounting. Table 2-1. Parts List Quantity Part Name Illustration Loudspeaker Amplifier Assembly Enclosure Installation Quick Reference Guide Loudspeaker Amplifier Mounting Accessory Kit, RoHS (part #071057A) which includes: (3)Plastic Ribbed Anchors (3) #6 Sheet Metal Screws Operations Guide 930376B CyberData Corporation...

  • Page 13: Loudspeaker Amplifier Setup

    Installing the VoIP V2 Loudspeaker Amplifier Loudspeaker Amplifier Setup 2.2 Loudspeaker Amplifier Setup Set up and configure each Loudspeaker Amplifier before you mount it. CyberData delivers each Loudspeaker Amplifier with the factory default values indicated in Table 2-2: Table 2-2. Factory Default Settings—Default of Network...

  • Page 14: Loudspeaker Amplifier Components

    Status LED (GREEN) A steady LED confirms that the Loudspeaker Amplifier is oper- ational. The LED will blink during a page when it is online. Network Activity LED (GREEN) Network Link LED (GREEN/YELLOW) Speaker Volume Operations Guide 930376B CyberData Corporation...

  • Page 15: Loudspeaker Amplifier Nema Box Components

    2.2.2 Loudspeaker Amplifier NEMA Box Components Figure 2-4 shows all of the NEMA box components of the loudspeaker amplifier. Figure 2-4. Loudspeaker Amplifier Components—AC powered DIP Switches RTFM Switch Ethernet Connection Ethernet Hub LEDs Volume Speaker Connection Injector AC power Operations Guide 930376B CyberData Corporation...

  • Page 16: Connect The Loudspeaker Amplifier

    VoIP V2 Loudspeaker Amplifier via a Cat 5 Ethernet Cable. Figure 2-5. Connect a Loudspeaker *This AC connection needs to be AC Input* installed by a certified electrician. Ethernet Hub Standard 1 Speaker Configuration 8 Ohms Operations Guide 930376B CyberData Corporation...

  • Page 17: Loudspeaker Amplifier Dip Switches

    DIP Switch settings for the revision B (or later) board. Table 2-3. DIP Switch Settings—Low Power—802.3af Compliant (Default) DIP Switch Setting Description Sets PoE for 802.3af class. Not applicable for power setting. Switch mode current set to LOW. Low gain amplifier setting. Operations Guide 930376B CyberData Corporation...

  • Page 18: Voip V2 Loudspeaker Amplifier System Installation And Connection Options

    (up to 25 watts) Figure 2-9. Speaker Out Connection 802.3af Compliant Ethernet Switch High Power PoE Switch 011068 Loudspeaker VoIP Phone Informacast Server Loudspeaker Amplifier (up to 25 watts) High Power PoE Injector in Box Operations Guide 930376B CyberData Corporation...

  • Page 19: Loudspeaker Type

    Use a RJ 45 cable. VoIP V2 Loudspeaker Amplifier ● 2.2.5.1 Loudspeaker Type Using the amplified output, the CyberData VoIP V2 Loudspeaker Amplifier supports the 011068 Loudspeaker or equivalent unamplified loudspeaker. Figure 2-10. 011068 Loudspeaker 2.2.5.2 Cabling/Wiring Using the amplified output, you may connect a loudspeaker to a Loudspeaker Amplifier with a good quality speaker cable that is limited to 25 feet in length.

  • Page 20: Confirm Operation

    Green The Activity LED blinks to indicate network traffic. Figure 2-11. Loudspeaker Amplifier LEDs—Power and Link Power LED (blue/green) Link LED (green/yellow) Figure 2-12. Loudspeaker Amplifier LEDs—Status and Activity Status LED (green) Activity LED (green)(yellow) Operations Guide 930376B CyberData Corporation...

  • Page 21: Confirm The Ip Address And Test The Audio

    RTFM switch for an additional five seconds until you hear the Paging Amplifier announce the words, “restoring defaults” and “rebooting”. 2. Release the RTFM switch. The Paging Amplifier will be restored to the factory default settings. Operations Guide 930376B CyberData Corporation...

  • Page 22: Adjust The Volume

    To adjust the Loudspeaker Amplifier volume, turn the external Volume dial (Figure 2-14) on the Loudspeaker Amplifier face. For the lineout volume, the volume is fixed and the volume control is adjusted through an Note external amplifier. Figure 2-14. External Volume Dial External volume dial Operations Guide 930376B CyberData Corporation...

  • Page 23: Configure The Loudspeaker Amplifier Parameters

    Table 2-6. Factory Default Settings Parameter Factory Default Setting IP Addressing DHCP IP Address 10.10.10.10 Web Access Username admin Web Access Password admin Subnet Mask 255.0.0.0 Default Gateway 10.0.0.1 a. Default if there is not a DHCP server present. Operations Guide 930376B CyberData Corporation...

  • Page 24: Loudspeaker Amplifier Web

    Make sure that the PC is on the same IP network as the Loudspeaker Amplifier. Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.
  • Page 25 2. When prompted, use the following default Web Access Username and Web Access Password to access the Home Page (Figure 2-15): Web Access Username: admin Web Access Password: admin Figure 2-15. Home Page Note Figure 2-15 shows the factory default settings. Operations Guide 930376B CyberData Corporation...
  • Page 26 Select either Yes or No to indicate if you want to hear a beep when the unit is powered up. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. Operations Guide 930376B CyberData Corporation...

  • Page 27: Upgrade The Firmware And Reboot The Loudspeaker Amplifier

    4. Copy the firmware files to be upgraded to the appropriate TFTP server directory: • c:\tftp-root\for Windows • /tftpboot/for Linux 5. Log in to the Loudspeaker Amplifier home page as instructed in Section 2.3.2, "Log in to the Configuration Home Page". Operations Guide 930376B CyberData Corporation...
  • Page 28 The Loudspeaker Amplifier will automatically reboot when the upload is complete. When the countdown finishes, the Upgrade Firmware page will refresh. The uploaded firmware filename should be displayed in the system configuration (indicating successful upload and reboot). Operations Guide 930376B CyberData Corporation...
  • Page 29 Use this field to enter the new file name for the firmware file that you are uploading (25 character limit). Click on the Submit button to automatically upload the selected firmware and reboot the system. Click on the Reboot button to reboot the system. Operations Guide 930376B CyberData Corporation...

  • Page 30: Reboot The Loudspeaker Amplifier

    1. Click Update Firmware to open the Upgrade Firmware page (Figure 2-17). Figure 2-17. Reboot System Section Reboot 2. Click Reboot. A normal restart will occur and you will see the following Reboot page. Figure 2-18. Reboot Page Operations Guide 930376B CyberData Corporation...

  • Page 31: Identifying And Testing A Loudspeaker Amplifier When Using Informacast 4.0 Or Later

    Identifying and Testing a Loudspeaker Amplifier when Using InformaCast 4.0 or Later 2.4 Identifying and Testing a Loudspeaker Amplifier when Using InformaCast 4.0 or Later This section describes the basic process for identifying and testing the CyberData Loudspeaker Amplifier when using Singlewire's InformaCast software version 4.0 or later. Note If you have questions or need help, please consult your InformaCast documentation and or contact the CyberData support team.
  • Page 32 Identifying and Testing a Loudspeaker Amplifier when Using InformaCast 4.0 or Later 2. On the IP Speaker Configuration page, InformaCast will indicate that it has detected new units. Click View. Figure 2-20. IP Amplifier Configuration Page View InformaCast has detected new Speakers. Operations Guide 930376B CyberData Corporation...
  • Page 33 Installing the VoIP V2 Loudspeaker Amplifier Identifying and Testing a Loudspeaker Amplifier when Using InformaCast 4.0 or Later 3. The IP Speaker Configuration page will show four newly detected units. Click Test. Figure 2-21. IP Speaker Configuration Page Test Operations Guide 930376B CyberData Corporation...
  • Page 34 The status page is actually at: http://<ipaddr>/ (port 80) Therefore, if a user clicks the link to view the status page and is directed to: http://10.10.10.10:1004/status The user will need to edit the url in the address bar to: http://10.10.10.10/ Operations Guide 930376B CyberData Corporation...
  • Page 35 Identifying and Testing a Loudspeaker Amplifier when Using InformaCast 4.0 or Later 8. On the IP Speaker Configuration page, Click Add to add a Loudspeaker Amplifier to the InformaCast server. Figure 2-23. IP Configuration Page Operations Guide 930376B CyberData Corporation...
  • Page 36 9. On the Add IP Speaker page, Fill out appropriate fields and click Add. Figure 2-24. Add IP Speaker Page Your unit is now registered to the InformaCast server. You now can configure this device as part of the InformaCast system setup as required. Operations Guide 930376B CyberData Corporation...

  • Page 37: Appendix A Mounting The Amplifier

    The Loudspeaker Amplifier was designed for indoor use. Mounting it on the external part of a building will require additional hardware for weatherproofing, cabling access, and lightning suppression. Consult a certified electrician for details. Note For mounting, use the three #6 SHEET METAL SCREWS to secure the enclosure. Operations Guide 930376B CyberData Corporation...
  • Page 38 4. For wall mounting, use the three #6 x 1-1/4-inch Pan Head Phillip screws to secure the speaker. Figure A-1.. Figure A-1. Mounting the Enclosure 071057A 531032 #6 PLASTIC ANCHOR (3x) 151014 #6x1 1/4" PAN HEAD PHILLIP SCREW (3x) Operations Guide 930376B CyberData Corporation...

  • Page 39: Appendix B Setting Up A Tftp Server

    1. Install and start the software. 2. Select File Configure Security tab Transmit Only. 3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. Operations Guide 930376B CyberData Corporation...

  • Page 40: Appendix C Troubleshooting/Technical Support

    2. Go to the support page for your product, and click on the FAQs tab. C.2 Documentation The documentation for this product is released in an English language version only. You can download PDF copies of CyberData product documentation by doing the following: 1. Go to the following URL: http://www.cyberdata.net/products/voip/digitalanalog/singlewireloudspeakerampv2/docs.html 2.

  • Page 41: Contact Information

    2555 Garden Road Monterey, CA 93940 Attention: RMA "your RMA number" RMA Status Form If you need to inquire about the repair status of your product(s), please use the CyberData RMA Status form at the following web address: http://www.cyberdata.net/support/rmastatus.html C.4 Warranty CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase.

  • Page 42: Warranty & Rma Returns Within The United States

    C.4.3 Spare in the Air Policy CyberData now offers a Spare in the Air no wait policy for warranty returns within the United States and Canada. More information about the Spare in the Air policy is available at the following web address: http://www.cyberdata.net/support/warranty/spareintheair.html...

  • Page 43: Index

    CyberData 34 IP Speaker Configuration page 25 CyberData contact information 34 Test IP Speaker Page 27 CyberData support limited to IP endpoint testing and identifying a Singlewire-enabled ceiling functionality 24 speaker 24 Informacast linking to the wrong port and path 27 InformaCast needs to be 4.0 or higher 1...
  • Page 44 14 warranty and RMA returns page 35 resetting the IP address to the default 30 warranty policy at CyberData 34 restoring the factory defaults 7, 14 web access password 6, 16 return and restocking policy 35...
