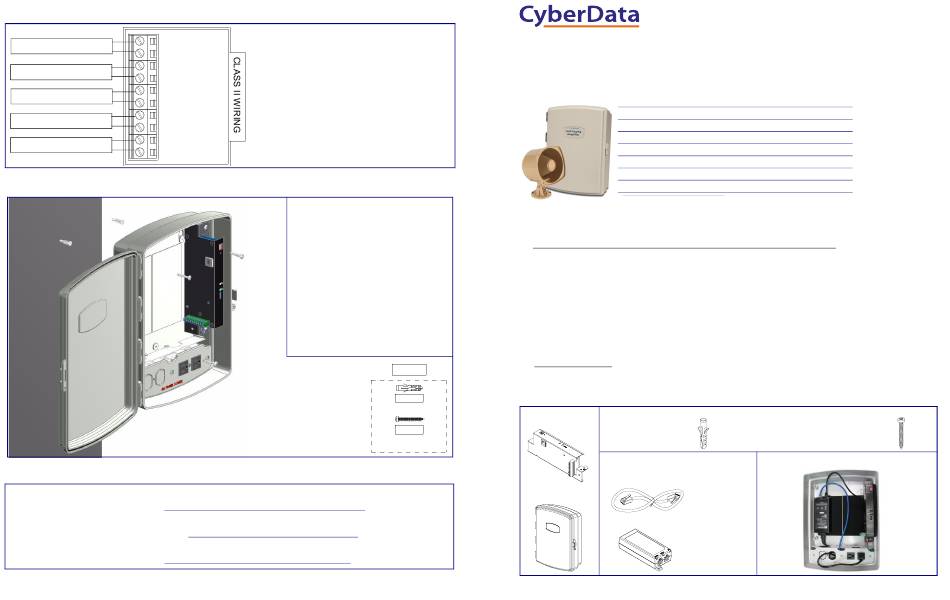

CyberData 011095 Installation Quick Reference

Connections
1-Sense (+)
Sensor Connection
2-GND
3-Relay COM
Relay Connection
4-Relay NO
5-Line-In(+)
Line-In Connection
6-Line-In(-)
7-Line-Out(+)
Line-Out Connection
8-Line-Out(-)
9-Spkr Out(+)
Speaker Connection
10-Spkr Out (-)
Mounting the Enclosure
Contacting CyberData
Sales: (831) 373-2601 ext. 334
Corporate Headquarters
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.php
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status:
Phone: 831-373-2601
Fax: 831-373-4193
Warranty information is available at:
www.CyberData.net
Web: http://www.cyberdata.net/support/warranty/index.html
© 2014, CyberData Corporation, ALL RIGHTS RESERVED
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use the
green Power light to verify that the
power is on.
3. Plug the Ethernet cable into the V2
Loudspeaker Amplifier. The yellow Link
light verifies the network connection.
4. For wall mounting, use the three
#6 x 1-1/4-inch Pan Head Phillip screws
to secure the speaker.
http://www.cyberdata.net/support/rmastatus.html
930342E
The IP Endpoint Company
Getting Started
• Download the VoIP V2 Loudspeaker Amplifier Operations Guide PDF file from the Documents page at:
http://www.cyberdata.net/products/voip/digitalanalog/loudspeakerampv2/docs.html
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The V2 Loudspeaker Amplifier enclosure is not rated for any AC voltages!
Wiring the 125V AC Plug
The green wire with the yellow stripe is a ground connection for Electrostatic Discharge (ESD) protection,
and should not be removed.
071057A
To wire the 125V AC plug, consult a licensed electrician and the local building codes in your area.
V2 Loudspeaker Amplifier Parts
531032
#6 PLASTIC ANCHOR (3x)
(1) Assembly
151014
#6x1 1/4" PAN HEAD
PHILLIP SCREW (3x)
(1) Enclosure
Quick Reference Quick Reference
Installation Quick Reference

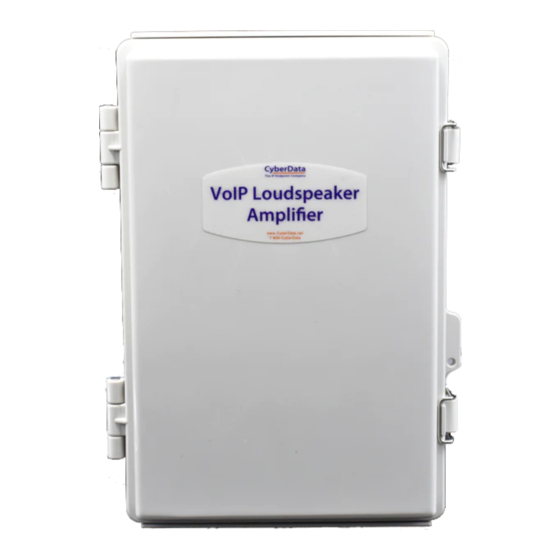

VoIP V2 Loudspeaker Amplifier
(AC-Powered)
SIP Compliant
011095
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
(1) Wall Mounting Kit
(3) #6 Plastic Anchors (3) #6 x 1-1/4-inch Pan Head Phillip Screws
Additional Parts View Inside of the Enclosure
(1) CAT 5e/CAT6 cable
(1) PoE Power Injector
930342E © 2014, CyberData Corporation, ALL RIGHTS RESERVED
