CyberData 011116 Operation Manual page 29

6. Click the Update Firmware button to open the Upgrade Firmware page. See
Note
7. Enter the IP address of your TFTP server into the TFTP Server IP parameter field.
8. Enter the firmware filename of the file to be uploaded into the New Filename parameter field.
9. Click Upload File.
Note
Operations Guide
Figure 2-17 shows the factory default settings.
For example, kernel filename 100-uImage-pagingamp.bin.
This starts the upload process. Once the Loudspeaker Amplifier has uploaded the file, the
Uploading Firmware countdown page appears, indicating that the firmware is being
written to flash. The Loudspeaker Amplifier will automatically reboot when the upload is
complete. When the countdown finishes, the Upgrade Firmware page will refresh. The
uploaded firmware filename should be displayed in the system configuration (indicating
successful upload and reboot).
Configure the Loudspeaker Amplifier Parameters

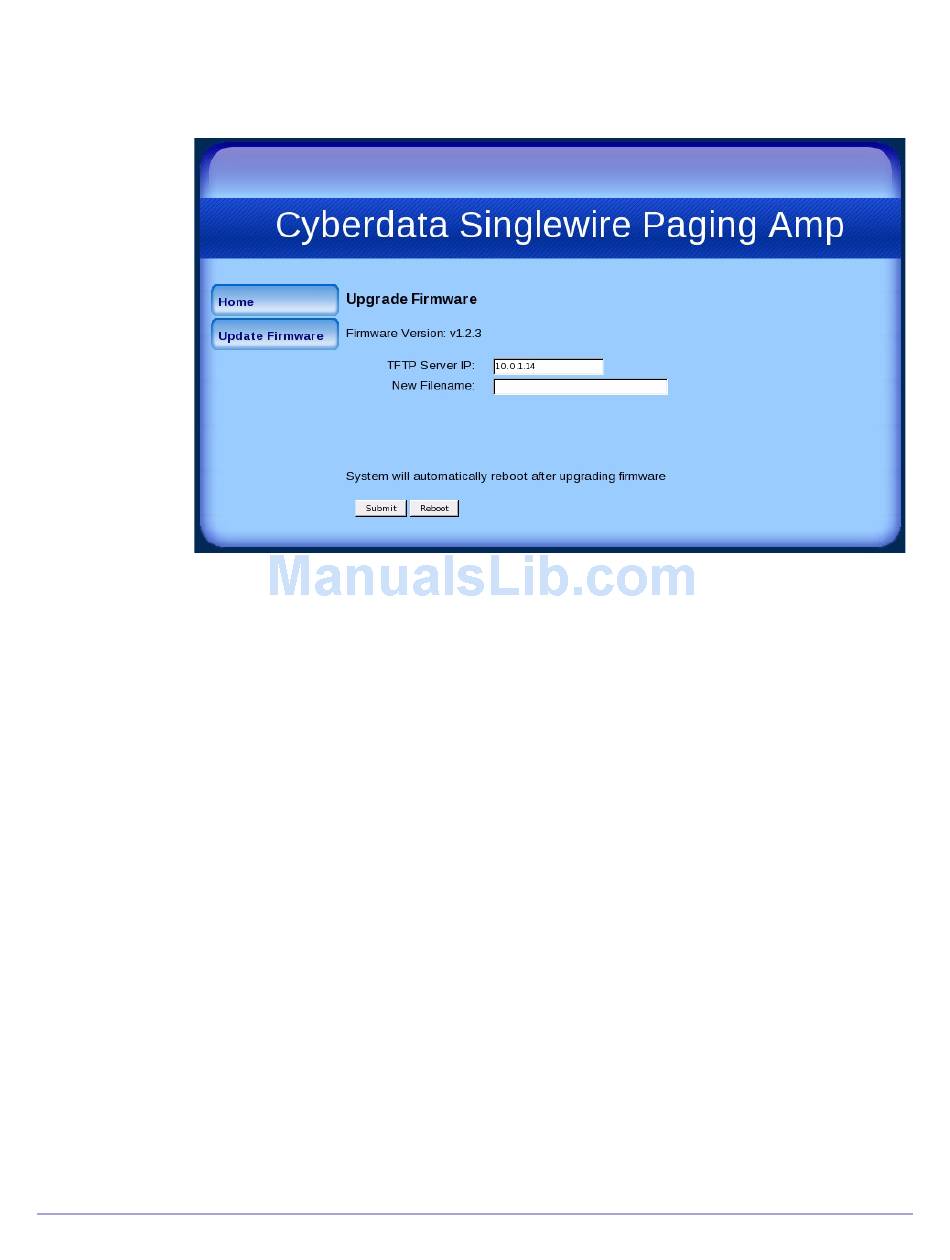

Figure 2-17. Firmware Upgrade Page
930377F
Installing the VoIP V2 Loudspeaker Amplifier
Figure
CyberData Corporation
22
2-17.
